Manufacturer: Bosch Rexroth

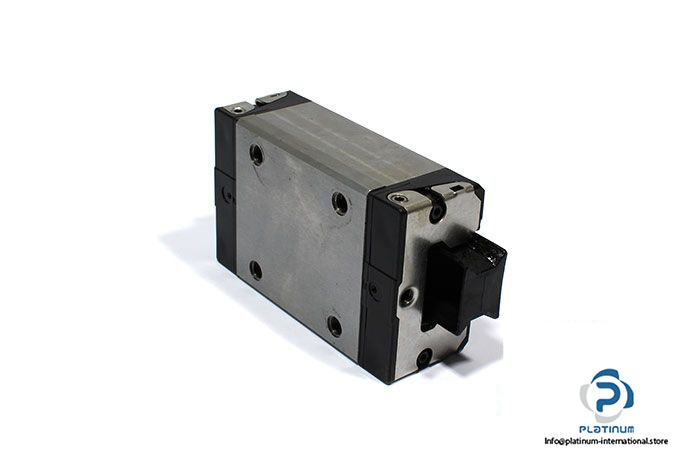

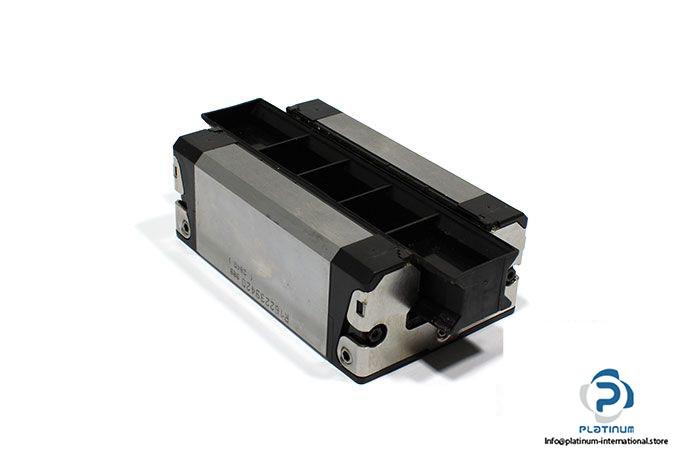

Type: Ball Runner Block SNS

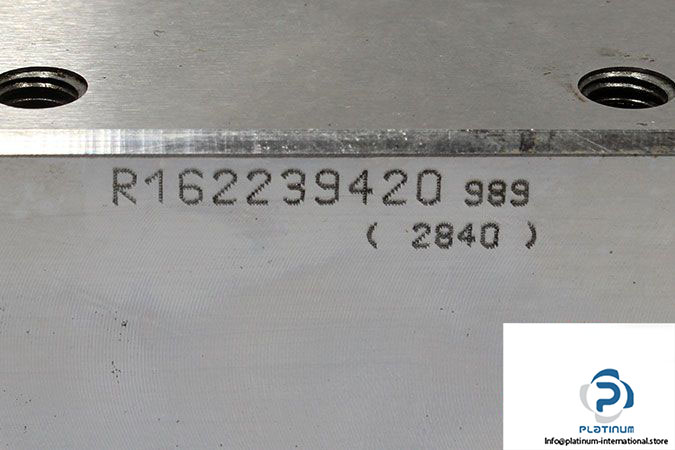

MNR: R1622 394 20

Size: 35 mm

Mechanical Format: KWD

Design: SNS – Slimline, Normal, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 51800 N

Static Load Capacity C₀: 80900 N

Dynamic Torsional Moment Load Capacity M_t:  1110 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 720 Nm

Accuracy Class: N – Normal

Preload Class: C0 – Without preload

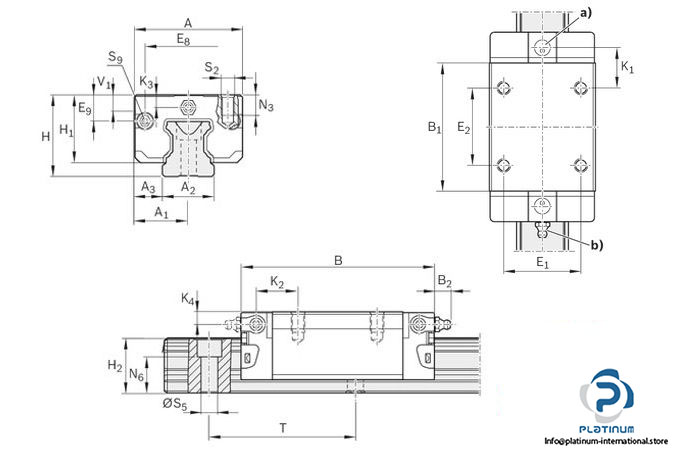

Dimensions

Width (A): 70 mm

Length (B): 110.5 mm

Total Height (H): 48 mm

E₁: 50 mm

E₂: 50 mm

Admissible Operating Temperature: -10 … +80 °C
