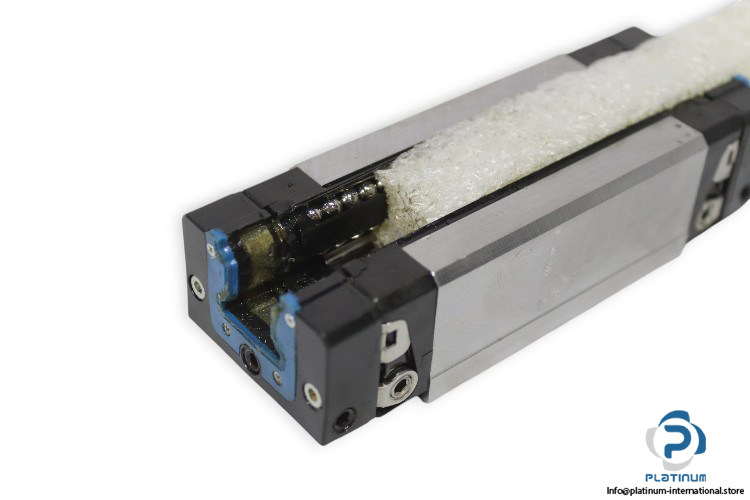

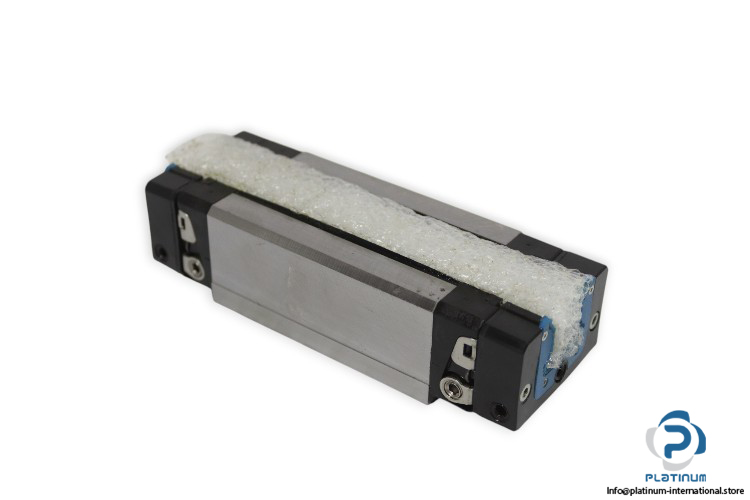

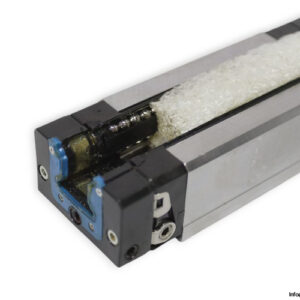

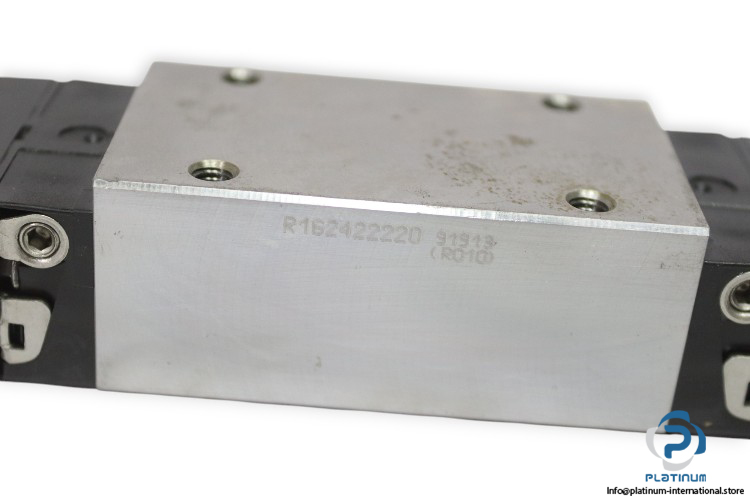

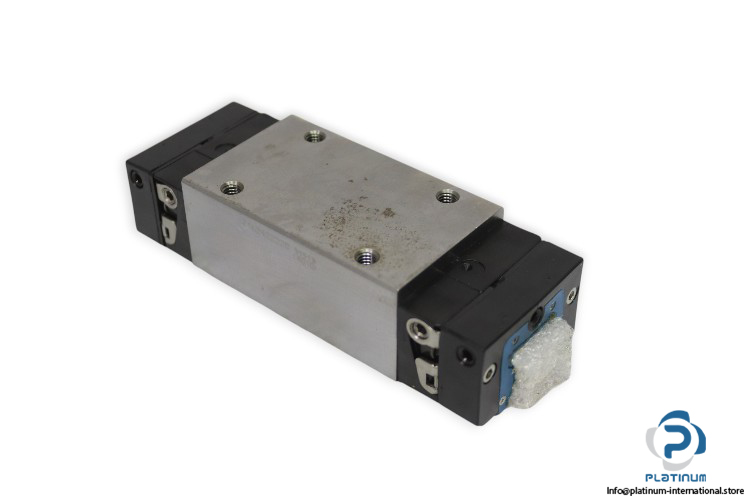

Rexroth R162422220 KWD-025-SLH-C2-P-1 Ball Runner Block
The Rexroth R162422220 KWD-025-SLH-C2-P-1 is a high-precision ball runner block designed for linear motion systems. Featuring a slimline, long, high format with standard seals, it offers excellent load ratings, smooth travel, and reliable operation in demanding automation and engineering applications.
Manufacturer: Rexroth
Type: Ball Runner Block
MNR: R162422220
Model: KWD-025-SLH-C2-P-1
Size: 25 mm

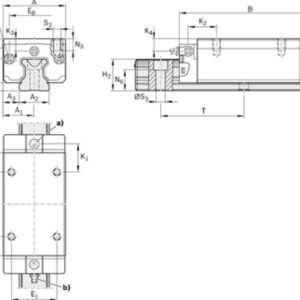

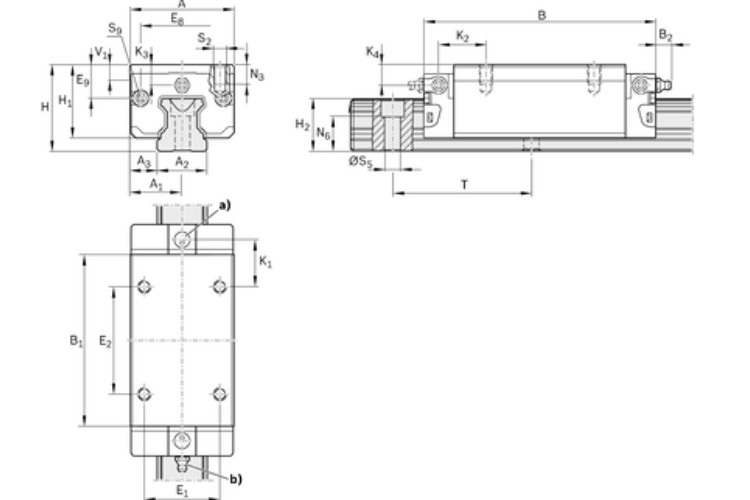

Technical information
- Width (A): 48 mm
- Length (B): 107.9 mm
- Height of System (H): 40 mm
- Height of Block (H1): 33.9 mm
- E1: 35 mm
- E2: 50 mm
- Format: SLH “ Slimline, long, high
- Material (Profiled Rail Systems): SS “ Standard seal
- Maximum Acceleration (amax): 500 m/s²
- Maximum Permissible Speed (vmax): 5 m/s
- Dynamic Load Capacity (C50): 47,000 N
- Dynamic Load Capacity (C100): 37,300 N
- Static Load Capacity (C0): 52,500 N
- Dynamic Torsional Moment Load Capacity (Mt50): 670 Nm
- Dynamic Torsional Moment Load Capacity (Mt100): 530 Nm
- Static Torsional Moment Load Capacity (Mt0): 750 Nm
- Dynamic Longitudinal Moment Load Capacity (ML50): 670 Nm
- Dynamic Longitudinal Moment Load Capacity (ML100): 530 Nm
- Static Longitudinal Moment Load Capacity (ML0): 740 Nm
- Pitch T Guide Rail: 60 mm
- Accuracy Class: P “ Precise
- Preload Class: C2 “ Medium preload
- Admissible Operating Temperature: -10 °C to +80 °C
- Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing
