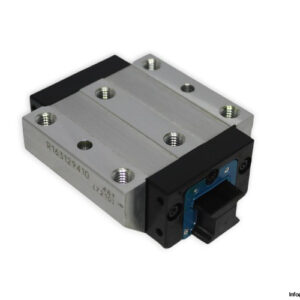

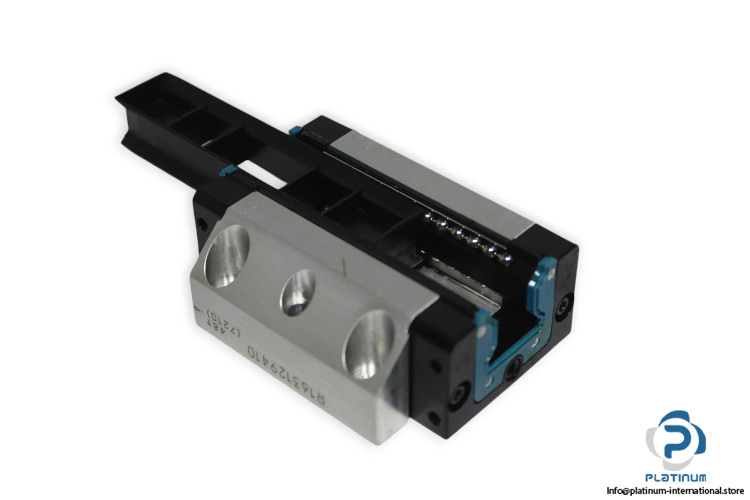

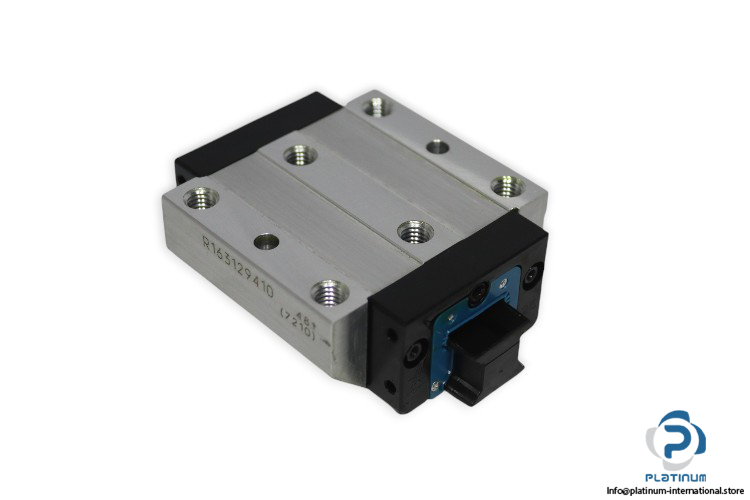

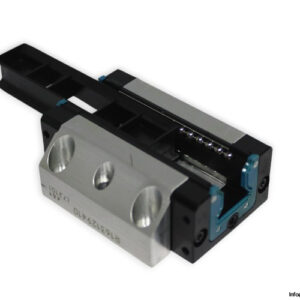

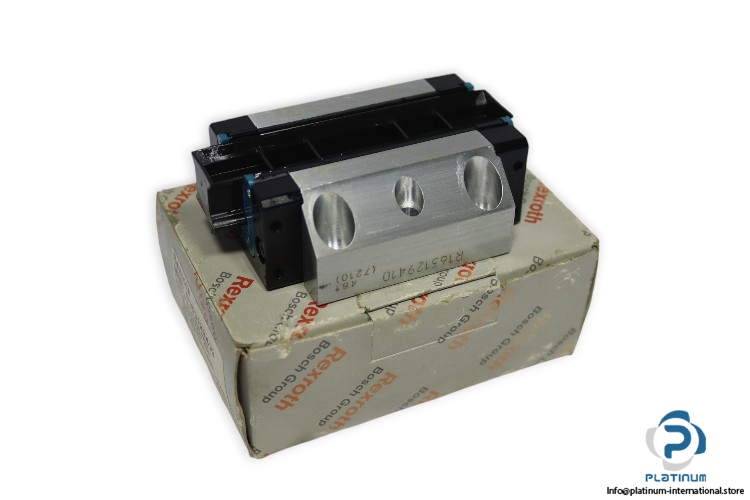

Manufacturer: REXROTH
Type: BALL RUNNER BLOCK FNS

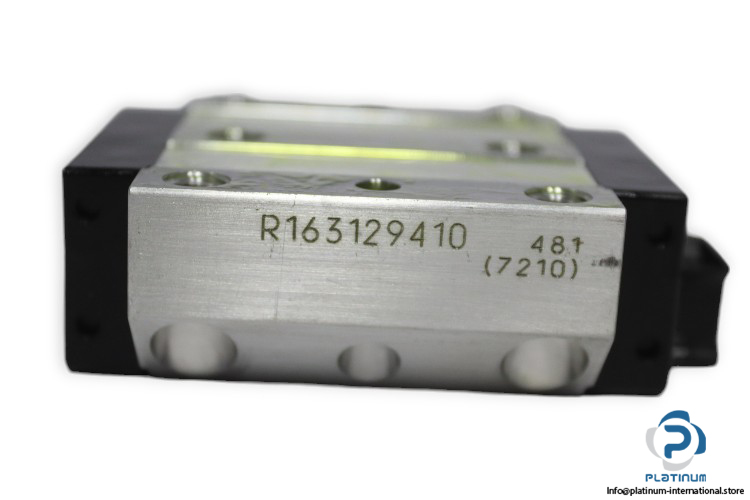

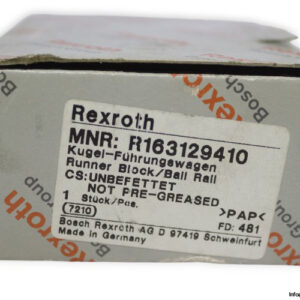

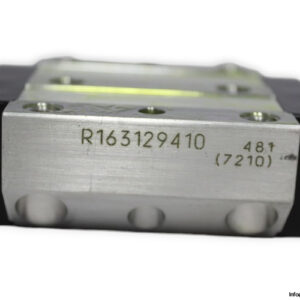

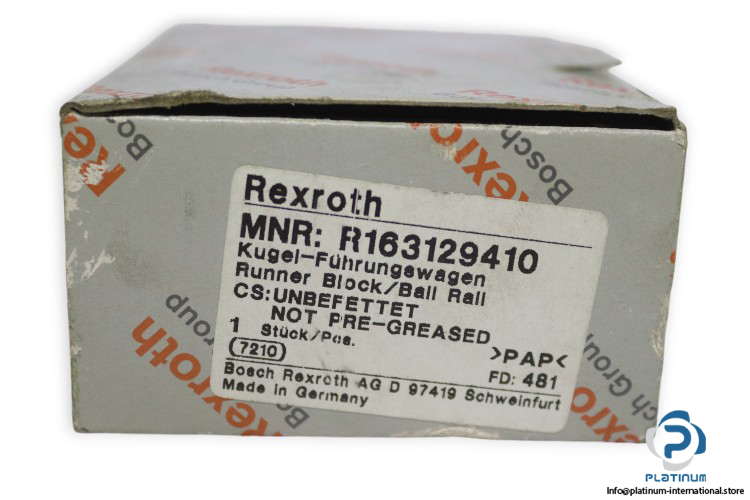

MNR: R1631 294 10
Size: 25 mm

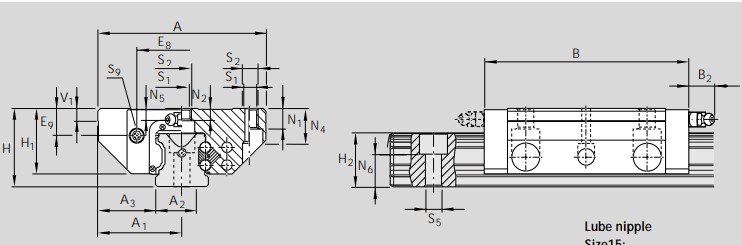

Dimensions
Width (A): 70 mm
Length (B): 81 mm
Height of runner block: 29.5 mm
Height runner block with guide rail: 36 mm

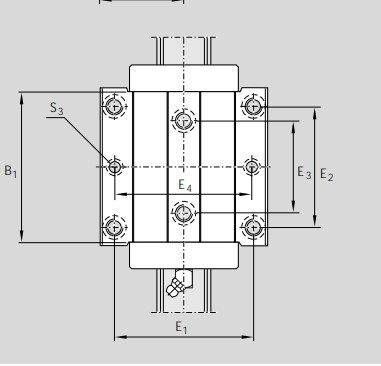

E1: 57 mm
E2: 45 mm
Format: FNS – flange, Normal, standard height
Material (profiled rail systems): Carbon steel
Dynamic Load Capacity C: 22800 N
Dynamic Torsional Moment Load Capacity Mt: 320 Nm
Dynamic torsional moment load capacity Mt max: 125 Nm
Dynamic longitudinal moment load capacity ML: 180 Nm
Dynamic longitudinal moment load capacity ML max: 70 Nm
Accuracy Class: N – Normal
Preload Class: C0 – Without clearance
