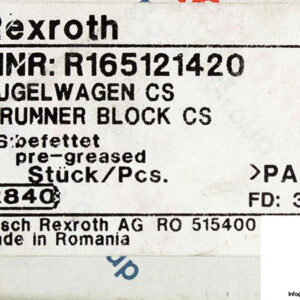

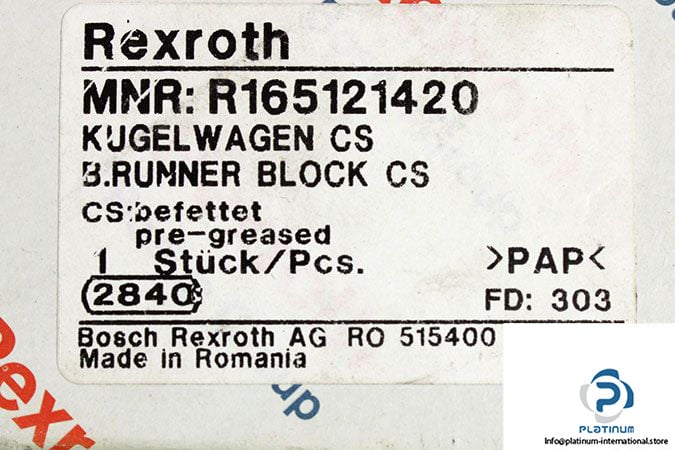

Manufacturer: Bosch Rexroth

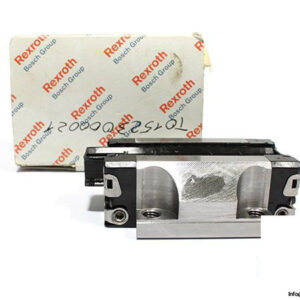

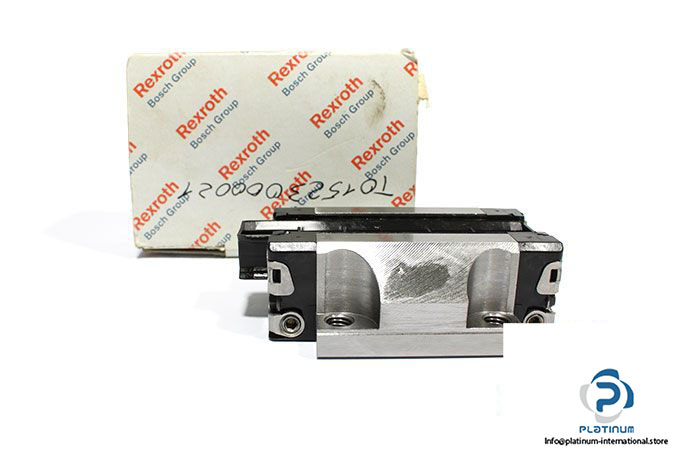

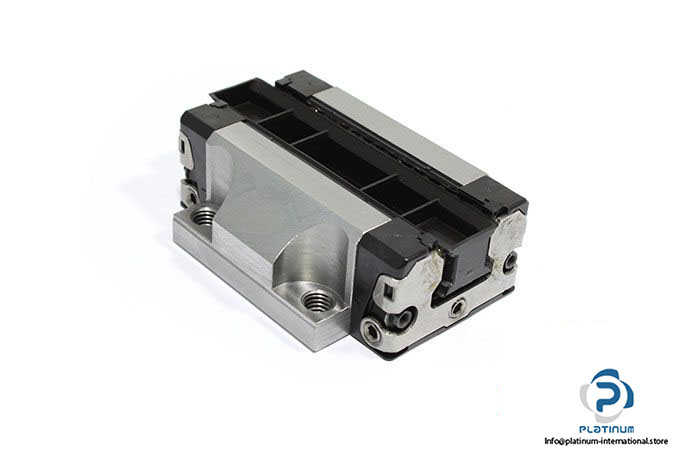

Type: Ball Runner Block FNS

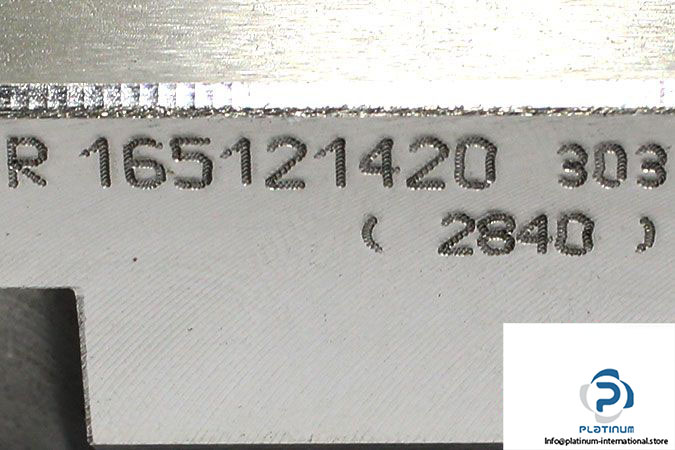

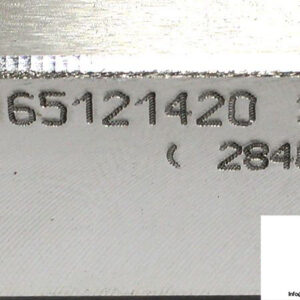

MNR: R1651 214 20

Size: 25 mm

Mechanical Format: KWD

Design: FNS – Flanged, Normal, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 28600 N

Static Load Capacity C₀: 35900 N

Dynamic Torsional Moment Load Capacity M_t:  410 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 290 Nm

Accuracy Class: N

Preload Class: C1 – Moderate preload

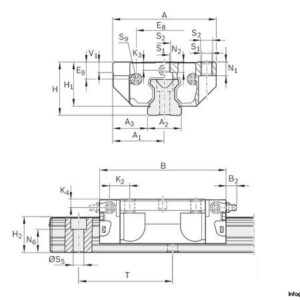

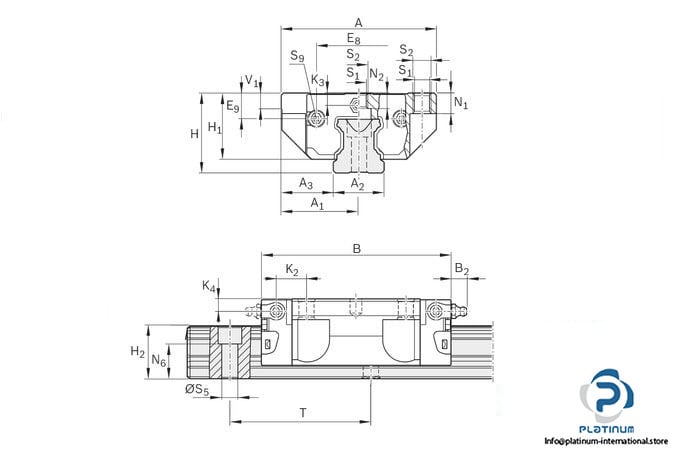

Dimensions

Width (A): 70 mm

Length (B): 86.2 mm

Height (H): 36 mm

Seals: Standard seal

Admissible Operating Temperature: -10 … +80 °C
