Manufacturer: Bosch Rexroth

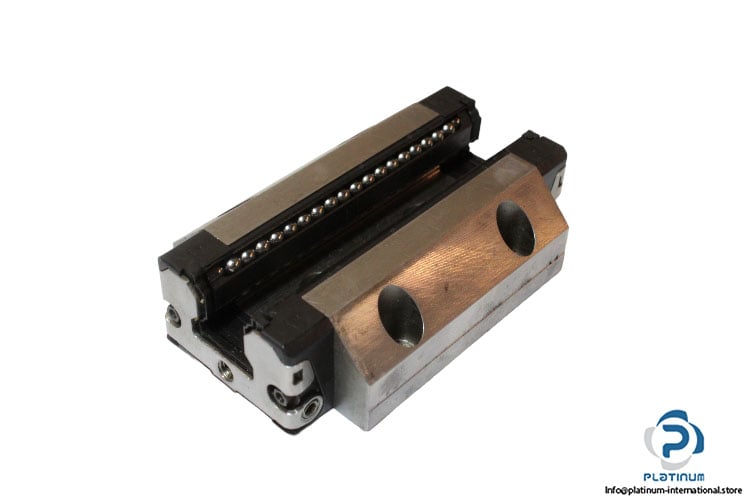

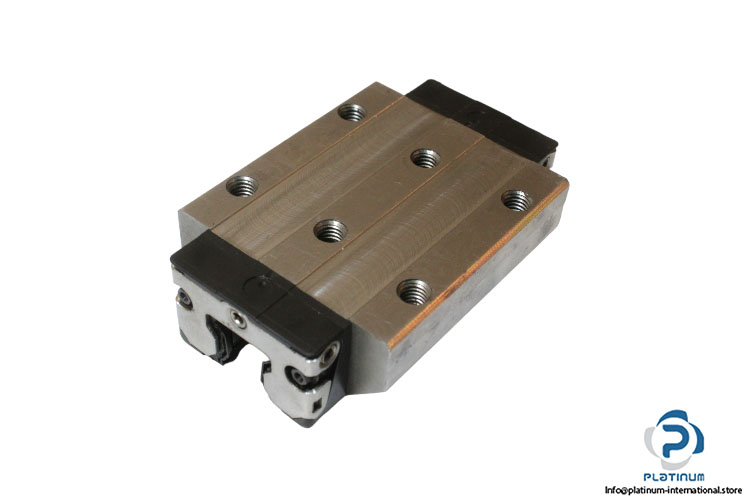

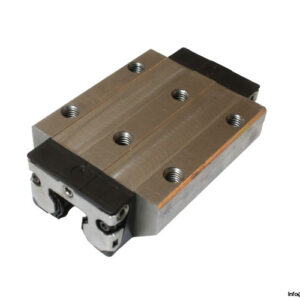

Type: Ball Runner Block FLS

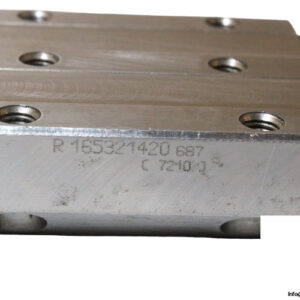

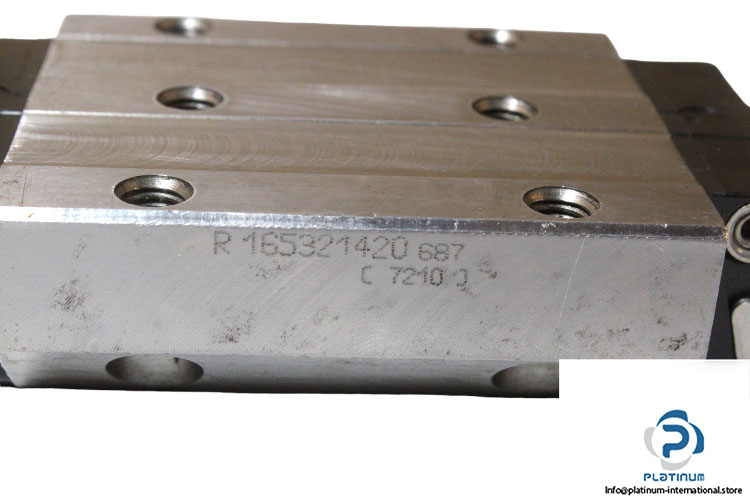

MNR: 1653-214-20

Size: 25 mm

Mechanical Format: KWD

Design: FLS – Flanged, long, standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 37300 N

Static Load Capacity C₀ : 52500 N

Dynamic Torsional Moment Load Capacity M_t:  530 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 530 Nm

Accuracy Class: N – Normal

Preload Class: C1 – Low

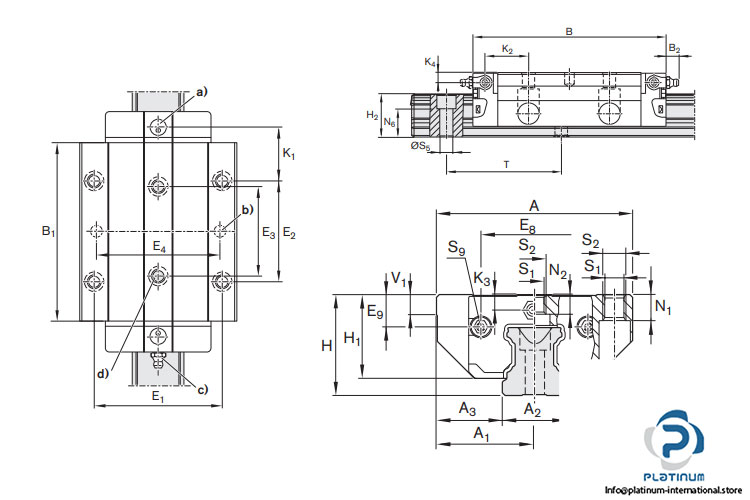

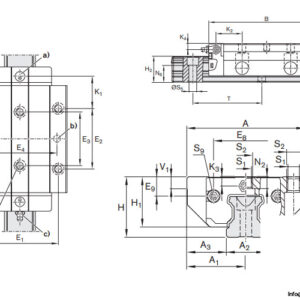

Dimensions

Width (A): 70 mm

Length (B): 107.9 mm

Height (H): 36 mm

Block Height: 29.9 mm

E₁: 57 mm

E₂: 45 mm

Admissible Operating Temperature: -10… +80 °C
