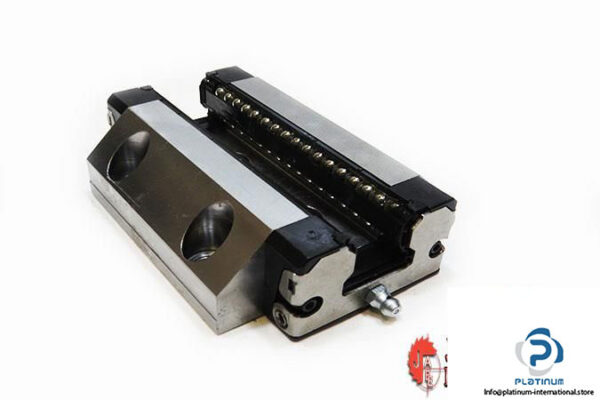

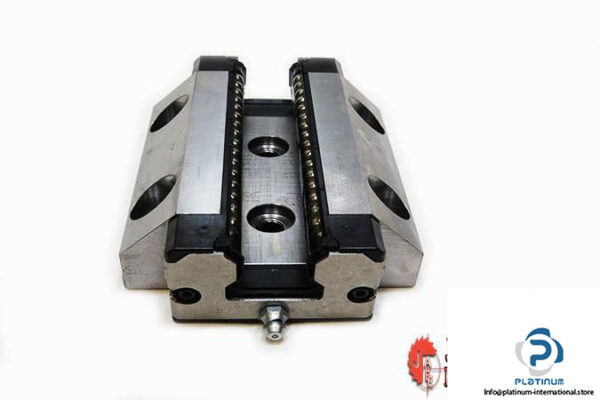

Manufacturer: Rexroth
Type: BALL RAIL RUNNER BLOCK

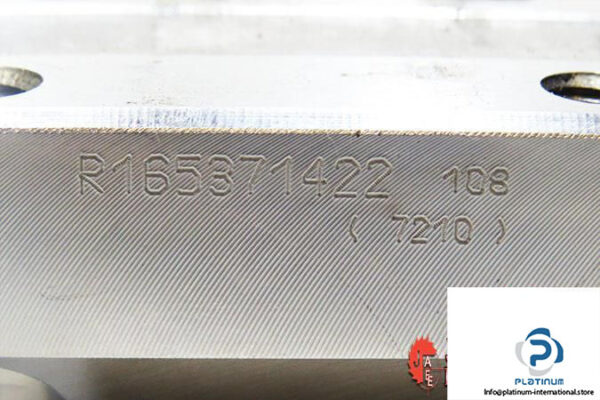

MNR: R165371422

Size: 30 mm
Dimensions
Width (A): 90 mm
Length (B): 119.7 mm
Height of system(H): 42 mm
Height of block (H₁): 35.35 mm
E1: 72 mm
E2: 52 mm
Format: FLS – Flanged, long, standard height
Material (profiled rail systems): Carbon steel
Seals: with ball chain
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 43800  N
Static Load Capacity C₀ : 62200
Dynamic Torsional Moment Load Capacity M_t:  760 Nm
Mt0: 1080 Nm
Dynamic longitudinal moment load capacity ML: 710 Nm
Static longitudinal moment load capacity ML0: 1010 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Admissible Operating Temperature: -10 °C … +80 °C
