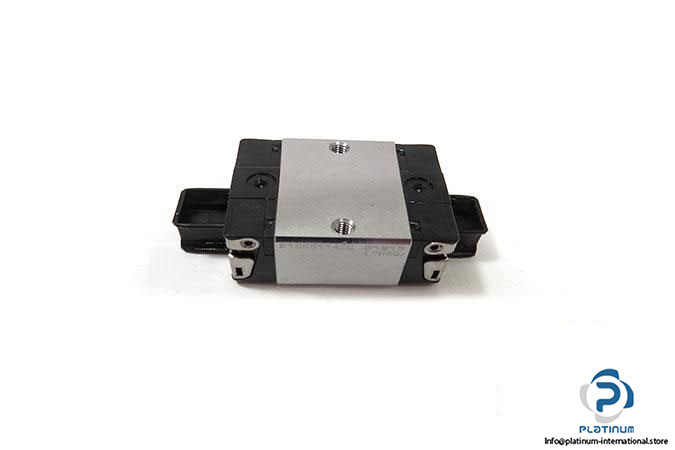

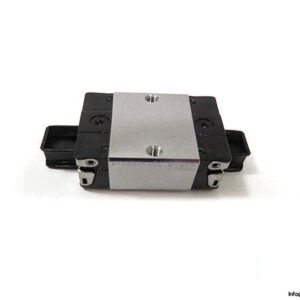

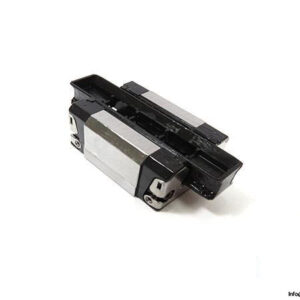

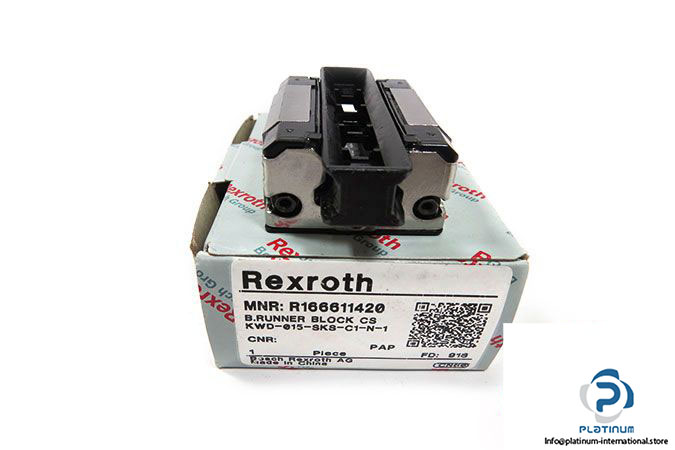

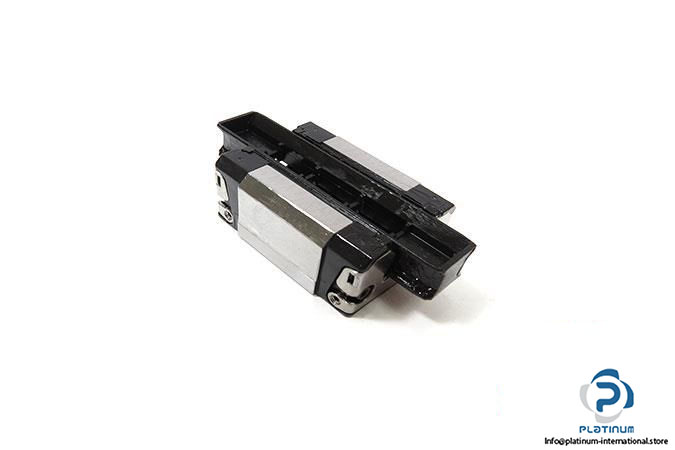

Manufacturer: REXROTH
Type: Ball Runner Block SKS
MNR: R1666 114 20

Shaft diameter: 15 mm
Format: SKS – slimline, short, standard height
Material (profiled rail systems): Carbon Steel
Maximum acceleration travel: 500 m/s²
Maximum permissible speed: 5 m/s
Dynamic Load Capacity: 6720 N
Static Load Capacity: 7340 N
Dynamic torsional moment load capacity: 65 Nm
Static torsional moment load capacity: 71 Nm
Dynamic longitudinal moment load capacity: 29 Nm
Static longitudinal moment load capacity: 32 Nm
Accuracy class: N, Normal
Preload class: C1, Low preload
Dimensions
Width (A): 34 mm
Length (B): 44.7 mm
Dimension H: 24 mm
Dimension H1: 19.9 mm
Dimension H2 with cover strip: 16.3 mm
E1: 26 mm
Admissible Operating Temperature: -10 °C … +80 °C
