Manufacturer: Bosch Rexroth

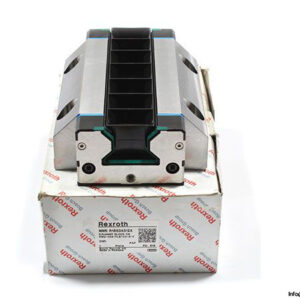

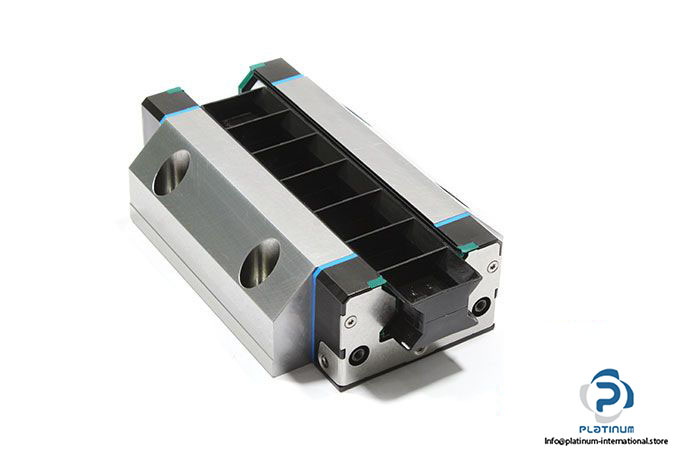

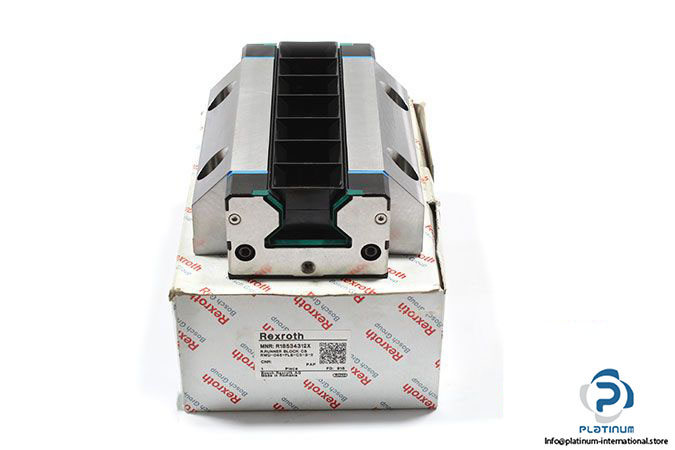

Type: Roller Runner Blocks FLS

MNR: R18534312X

Size: 45 mm

Mechanical Format: RWD

Design: FLS – Flange, Long, Standard

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 4 m/s

Dynamic Load Capacity C: 132300 N

Static Load Capacity C₀ : 276400 N

Dynamic Torsional Moment Load Capacity M_t:  3270 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 2690 Nm

Accuracy Class: SP

Preload Class: C3

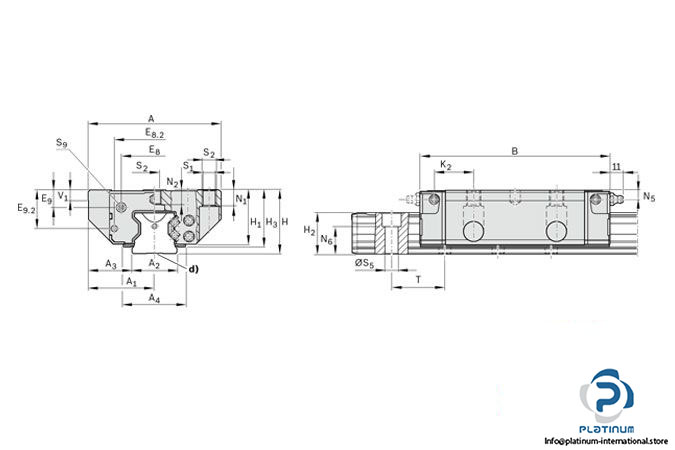

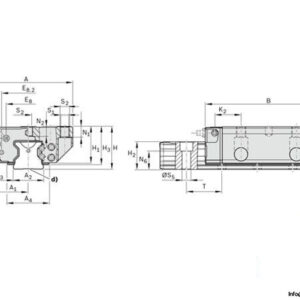

Dimensions

Width ( A ): 120 mm

Length ( B ): 179.5 mm

Height ( H₁ ): 51 mm

Admissible Operating Temperature: -10… +80 °C

Weight: 4.7 kg
