Manufacturer: Bosch Rexroth

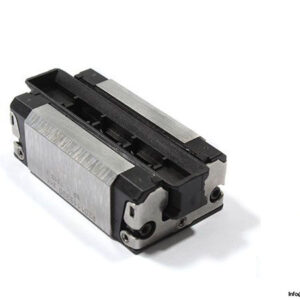

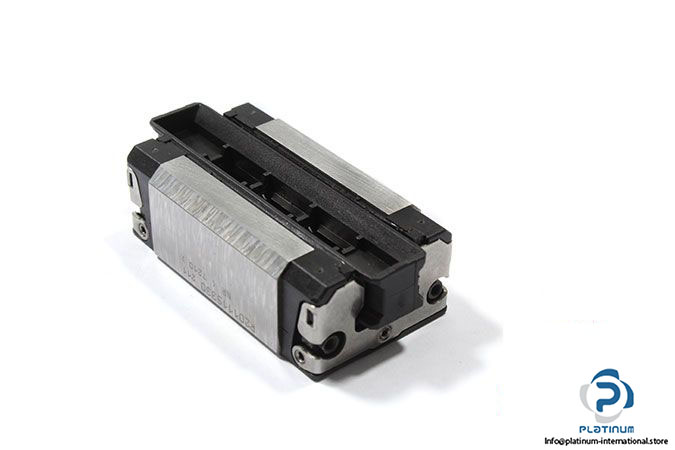

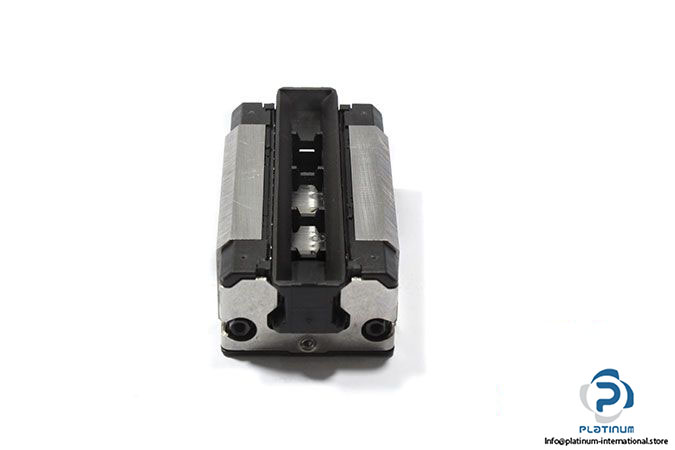

Type: Ball Runner Block SNS

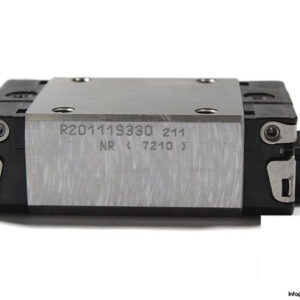

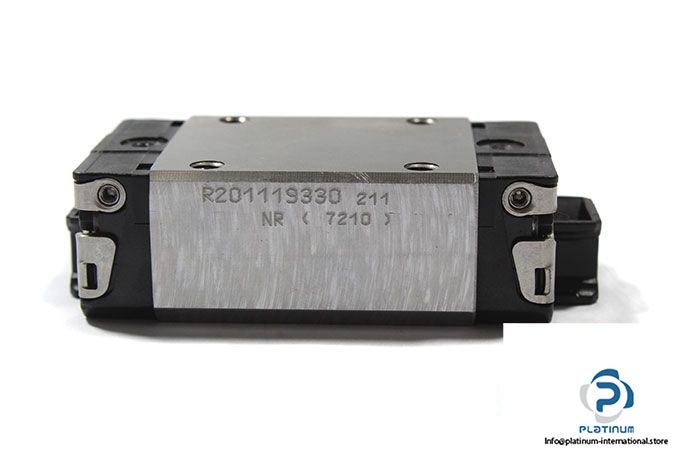

MNR: R201119330

 Size: 15 mm

Mechanical Format: KWD

Design: SLS – Slimline, Normal, Standard Height

Format: N1 – Resist NR

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 9860 N

Dynamic Torsional Moment Load Capacity M_t:  95 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 120 Nm

Accuracy Class: H – High

Preload Class: C0 – without preload

Dimensions

Width ( A ): 34 mm

Length ( B ): 58.2 mm

Height ( H ): 24 mm

Admissible Operating Temperature: -10 °C … +80 °C

Weight: 0.15 kg
