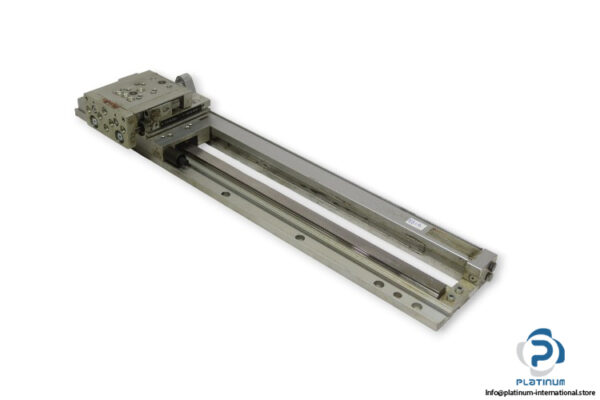

Rexroth R402000987 Guided Slide Unit (GSU)
The Rexroth R402000987 Guided Slide Unit (GSU) is a precision-engineered pneumatic linear module designed for smooth, controlled, and highly accurate linear movement. Built with an anodized aluminum body, hydraulic cushioning, and a reliable ball rail guide system, it is ideal for automated handling, positioning, and synchronized mechanical applications.
Manufacturer: Rexroth
Type: Guided slide unit (GSU)

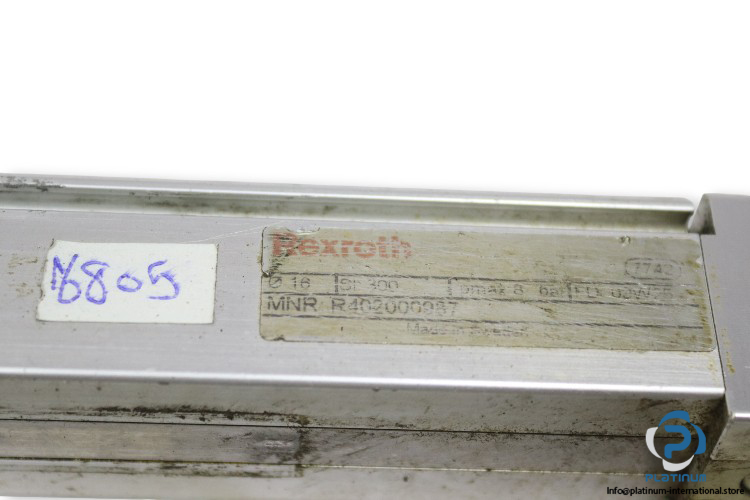

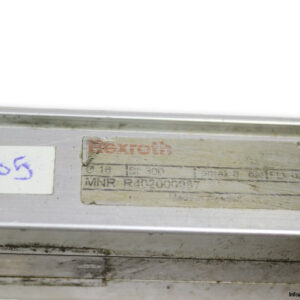

MNR: R402000987
Technical Information
- Diameter: 16 mm
- Stroke: 300 mm
- Working Pressure: 1.5 bar / 8 bar
- Medium: Compressed air
- Max. Particle Size: 5 µm
- Cushioning: Hydraulic, nonadjustable
- Oil Content of Compressed Air: 0 mg/m³ – 1 mg/m³
- Piston Force: 127 N
- Speed: max. 1.5 m/s
- Cushioning Length: 10 mm
- Connection: 5 mm
- Ambient Temperature: 0°C to +60°C
Material Specifications
- Cylinder Tube: Aluminum, anodized
- Covers: Aluminum, anodized
- Seals: Polyurethane
- Sealing Strips: Polyurethane; Stainless steel
- Ball Rail Table: Aluminum, anodized
Recommendation: For customers seeking high-speed, stable, and long-life linear motion equipment, the Rexroth R402000987 is an excellent choice. Its hydraulic cushioning ensures controlled deceleration, protecting machinery from impact loads. The guided slide unit is highly recommended for pick-and-place systems, robotic automation, synchronized handling applications, and precision material transfer tasks where accuracy and durability are critical.
