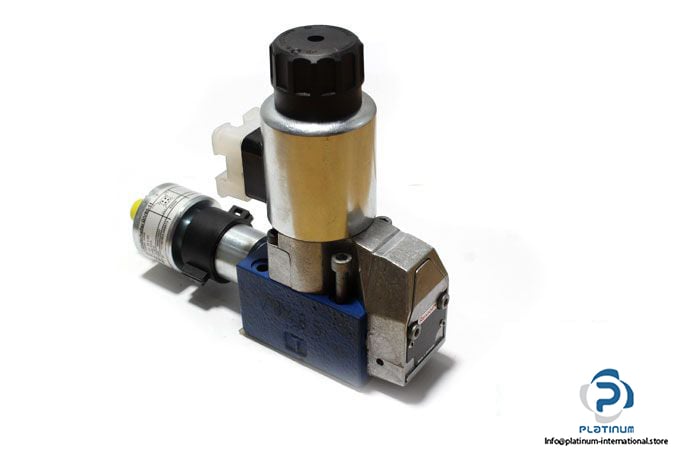

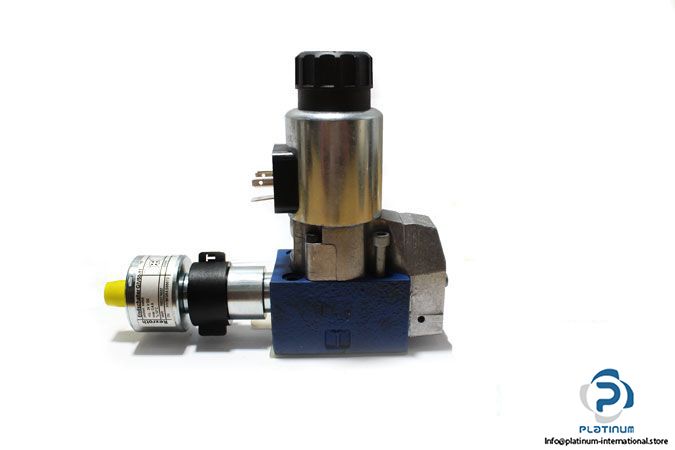

REXROTH M-3 SEW 6 U37/420MG24K4QMAG24 Directional Control Valve With Position Switch

The REXROTH M-3 SEW 6 U37/420MG24K4QMAG24 is an electrically actuated directional control valve designed for precision hydraulic control. Built for reliability and high-pressure performance, it offers a maximum operating pressure of 420 bar and a flow rate of up to 25 l/min. The integrated position switch ensures accurate monitoring of valve operation, making it ideal for automation and industrial hydraulic systems.

Manufacturer: REXROTH
Type: Directional Control Valve With Position Switch

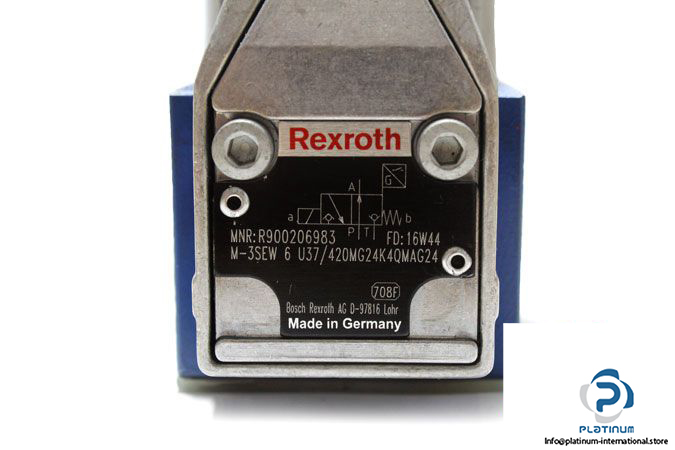

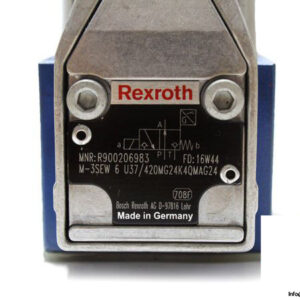

Model: M-3 SEW 6 U37/420MG24K4QMAG24
MNR: R900206983

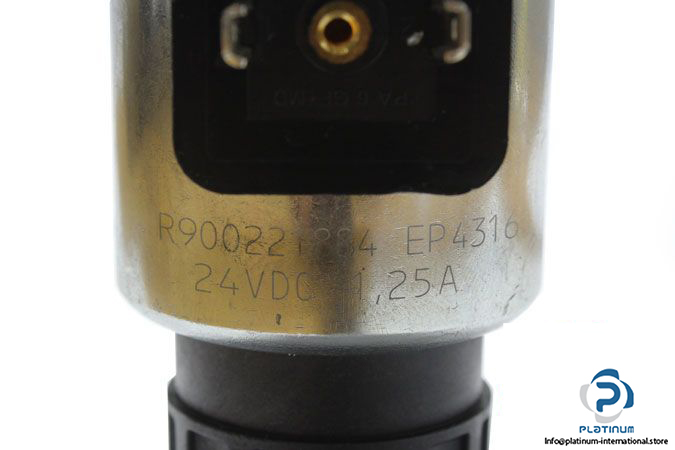

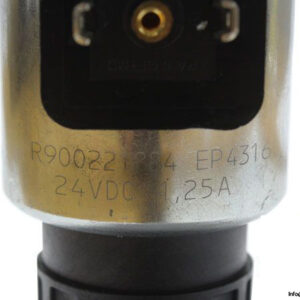

Coil Model: R900221884

Technical Information

Nominal Size: 6
Type of Actuation: Electrically
Max. Pressure: 420 bar
Max. Flow Rate: 25 l/min
Hydraulic Connection: Sub-Plate
Fluid Temperature Range: -30 / 80 °C
Nominal Voltage per Coil: 24 VDC

Position Switch Attachment

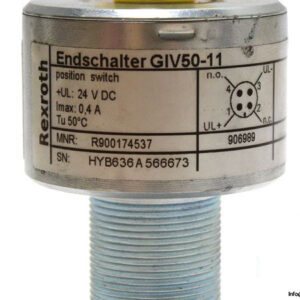

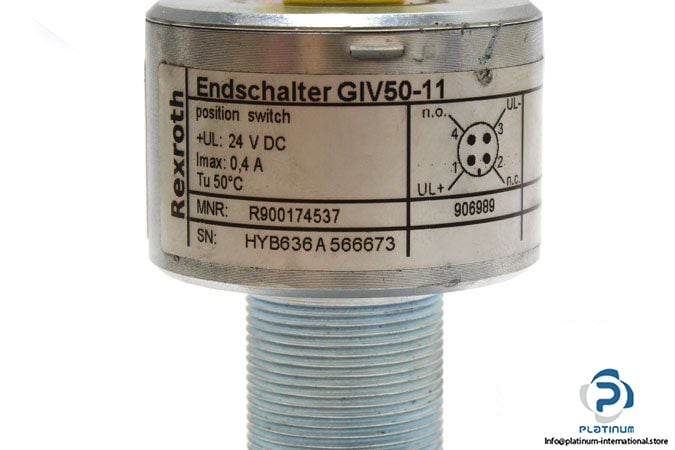

Attachment: REXROTH R900174537 Position Switch
Supply Voltage: 24 V DC
Current Rating: 0.4 A
Max. Operating Temperature: 50 °C
Connection: M12 Connector, 4-Pin
