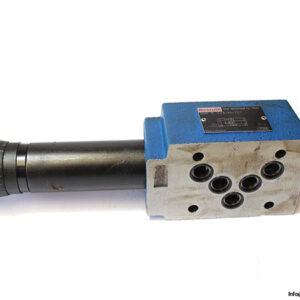

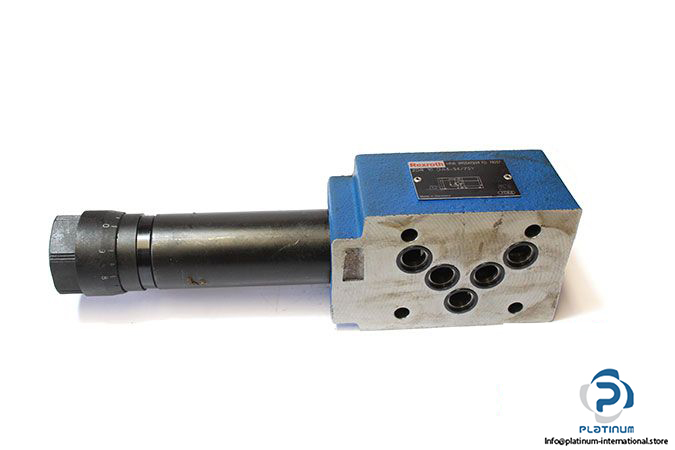

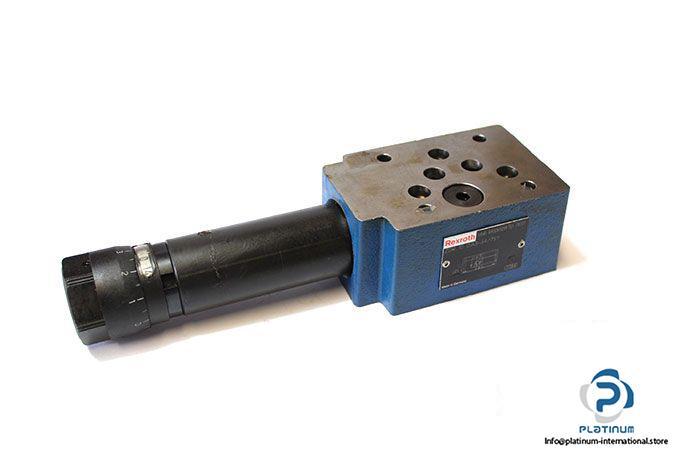

REXROTH ZDR10DA35475Y DIRECT OPERATED PRESSURE SEQUENCE VALVE
The Rexroth ZDR 10 DA3-54/75Y is a high-performance direct operated pressure sequence valve designed for hydraulic systems requiring precise pressure control. Built with robust engineering, it ensures reliable operation under demanding industrial conditions.
Manufacturer: Rexroth
Type: Direct Operated Pressure Sequence Valve
Model: ZDR 10 DA3-54/75Y
MNR: R900411259
Technical Information
- Fluid: Oil
- Size: NG10
- Adjustment Element: Set Screw with Hexagon and Protective Cap
- Maximum Operating Pressure (Inlet): 315 bar
- Maximum Operating Pressure (Output): 150 bar
- Back Pressure Port T(Y): 160 bar
- Maximum Flow Rate: 80 L/min
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate
- Ambient Temperature Range: -30 / 80 °C
