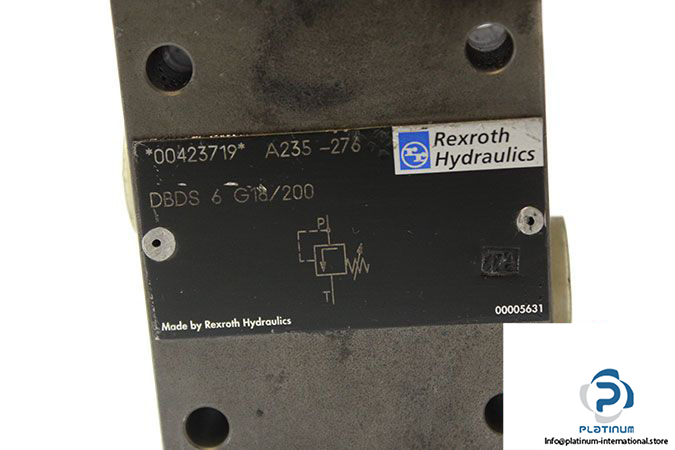

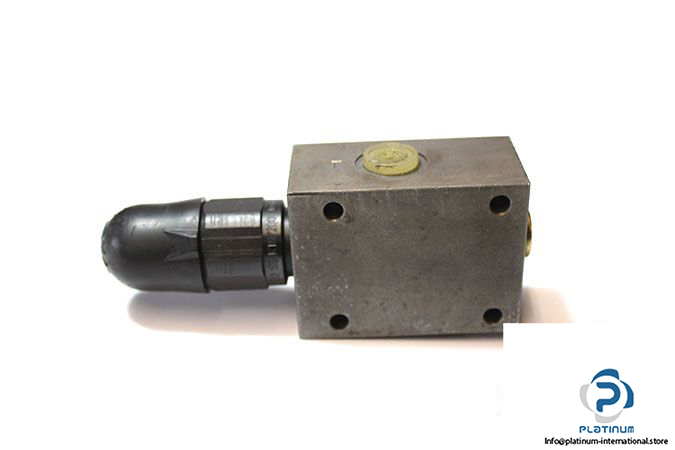

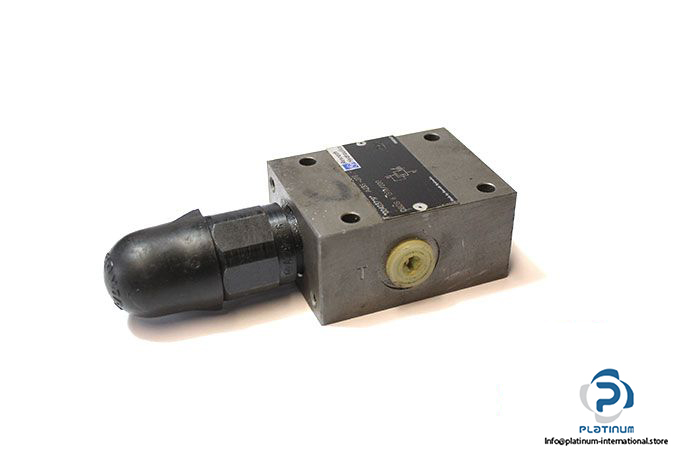

Manufacturer: REXROTH

Type: Pressure Relief Valve Direct Operated

Model: DBDS 6 G18/200

MNR: R900423719

Size: 6

Adjustment Type for Pressure Adjustment: Bushing with Hexagon and Protective Cap

Pressure Setting: 200 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum operating pressure at Input– Standard: 400 bar

Maximum operating pressure at Output: 315 bar

Maximum Flow Rate: 120 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: G1/4

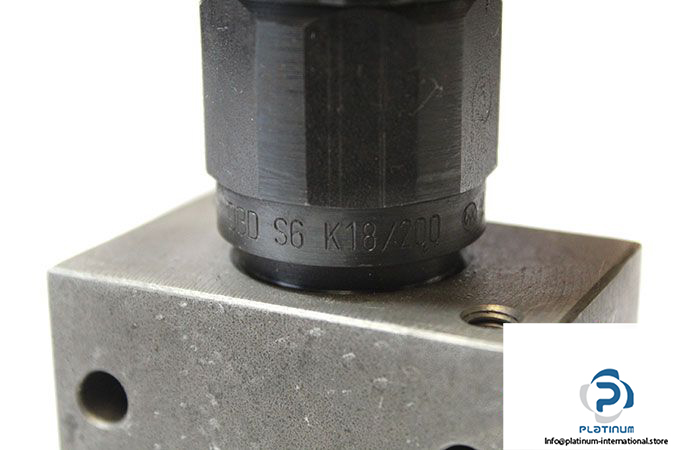

Attachment: REXROTH DBD S6 K18/200 Screw-In Cartridge Valve

Manufacturer: Rexroth

Type: screw-in cartridge valve

Model: DBD S6 K18/200

Weight: 1.60kg
