Manufacturer: Rexroth

Type: Pressure Reducing Valve Pilot Operated

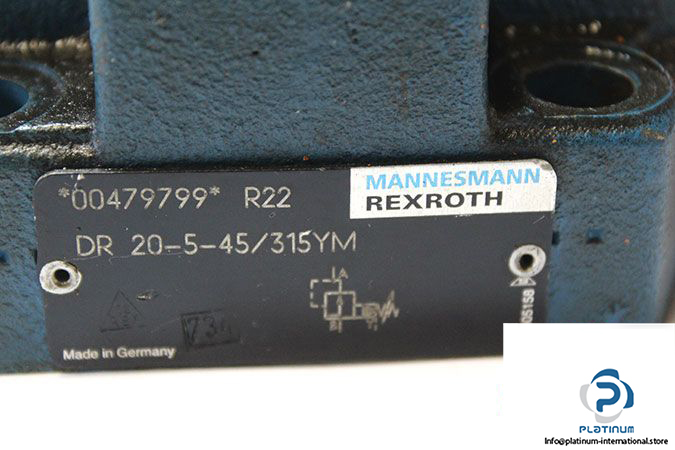

Model: DR 20-5-45/315YM

MNR: R900479799

Size: 20

Adjustment element: Sleeve with hexagon and protective cap

Pressure Setting: 315 bar

Ambient Temperature Range: –30 …. +50 ^oC

Nominal pressure: 350 bar

Maximum operating pressure at port B: 350 bar

Operating pressure range at port A: 10 to 350 bar

Maximum back pressure at port Y: 350 bar

Maximum Flow Rate: 300 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 3.47kg
