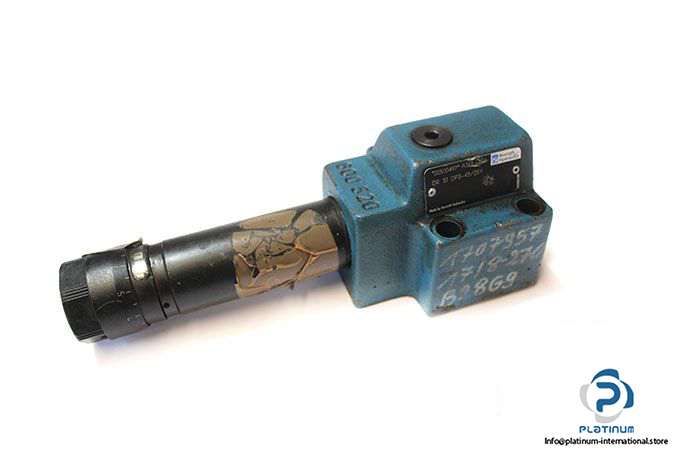

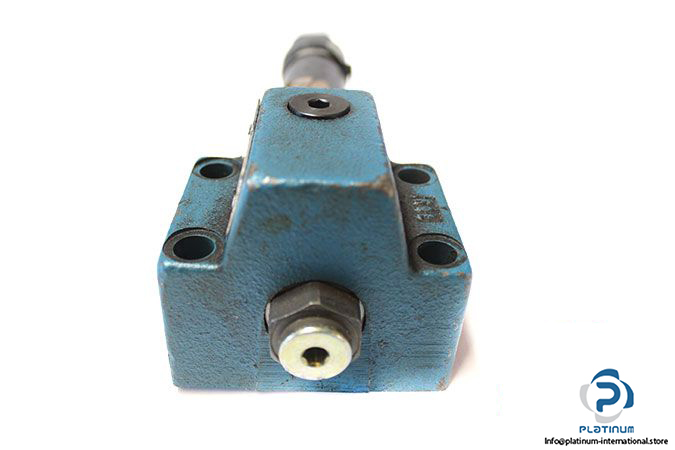

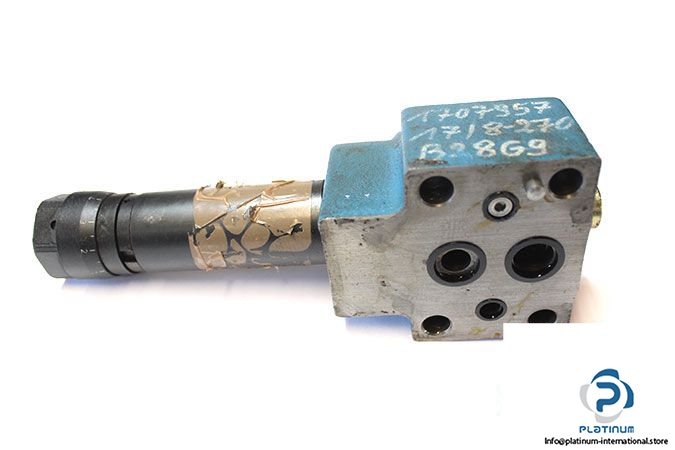

REXROTH DR10DP34325Y PRESSURE REDUCING VALVE
The Rexroth DR 10 DP3-43/25Y is a direct operated pressure reducing valve designed for precise control and high reliability in hydraulic systems. Engineered with a key lock rotary hand knob with scale, it ensures accurate pressure adjustments and stable operation under demanding conditions.
Manufacturer: Rexroth
Type: Direct Operated Pressure Reducing Valve

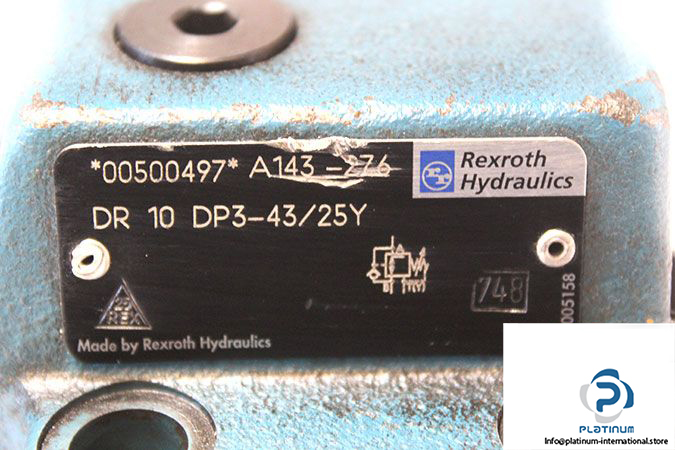

Model: DR 10 DP3-43/25Y
MNR: R900500497
Technical Information
- Fluid: Oil
- Size: NG10
- Adjustment Element: Key Lock Rotary Hand Knob with Scale
- Pressure Setting: 25 bar
- Nominal Pressure: 210 bar
- Maximum Operating Pressure at Port B: 315 bar
- Maximum Back Pressure at Port Y: 160 bar
- Maximum Flow Rate: 80 L/min
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate
- Ambient Temperature Range: -30 / 50 °C
