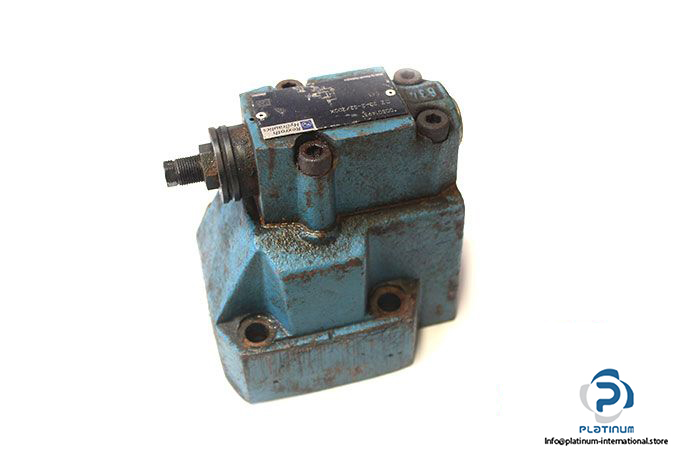

Manufacturer: REXROTH

Type: Pressure Sequence Valve Pilot Operated

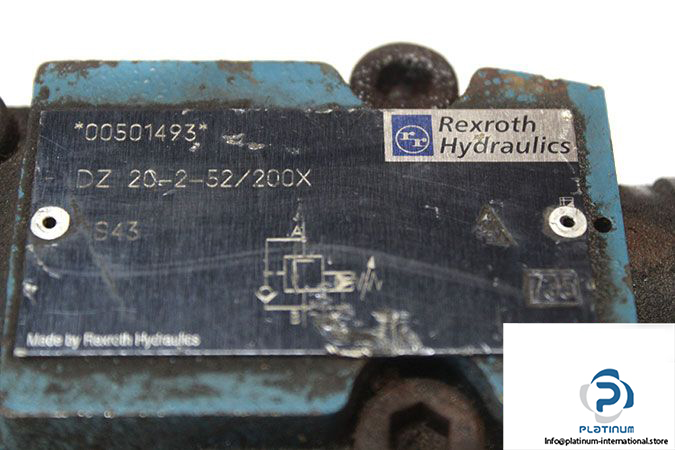

Model: DZ20-2-52/200X

MNR: R900501493

Nominal Size: 20

Adjustment Element: Set Screw with Hexagon and Protective Cap

Ambient temperature range: -30 …. +80 °C

Maximum Operating Pressure PORTS P, A, X :315 bar

Maximum Back pressure (Y): 315 bar

Maximum Flow Rate: 400 L/min

Fluid Temperature Range: -30 ….. +80 °C

Viscosity range:10…800 mm²/s

Connection: Sub-plate

Weight: 5.25 kg
