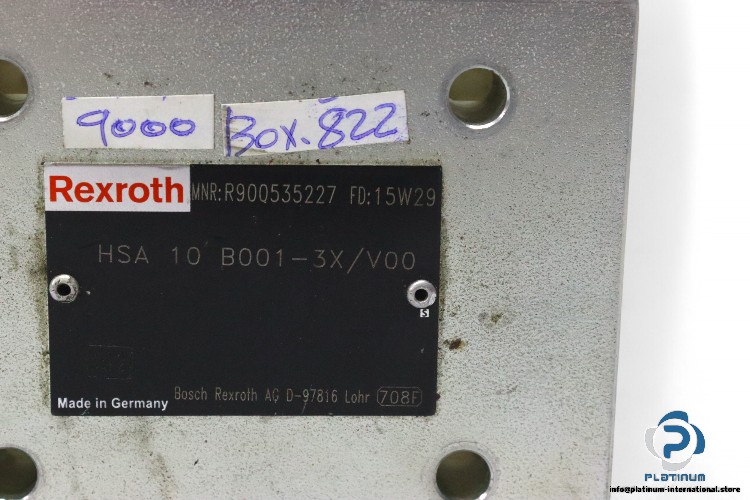

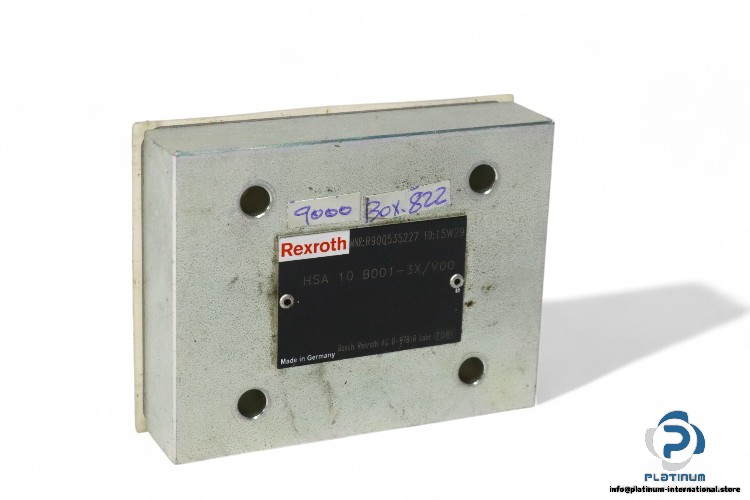

Cover Plate – Model: HSA 10 B001-3X/V00
The Cover Plate (Model: HSA 10 B001-3X/V00) by BOSCH REXROTH is designed for hydraulic systems with a maximum operating pressure of 315 bar. It features a sub-plate hydraulic connection and uses an FKM (Fluorocarbon Rubber) seal, ensuring high resistance to aggressive fluids and extreme temperatures.
Technical Specifications:
- Model: HSA 10 B001-3X/V00
- Size: 10
- Maximum Operating Pressure: 315 bar
- Hydraulic Connection: Sub-Plate
- Type of Seal: FKM (Fluorocarbon Rubber)
- Manufacturer Reference Number (MRN): R900535227
- Additional Reference: 15W29
