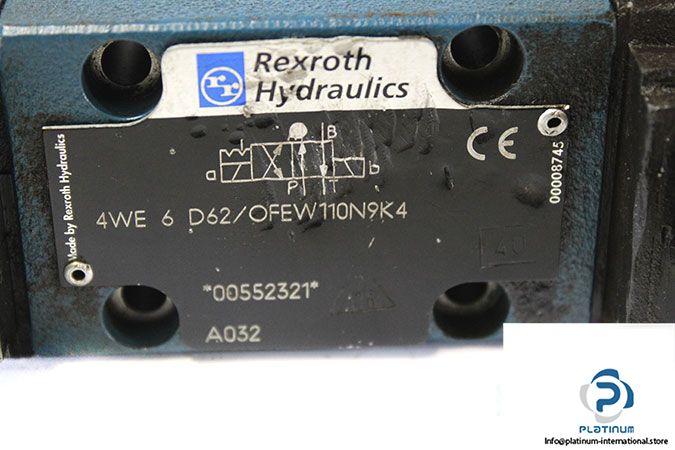

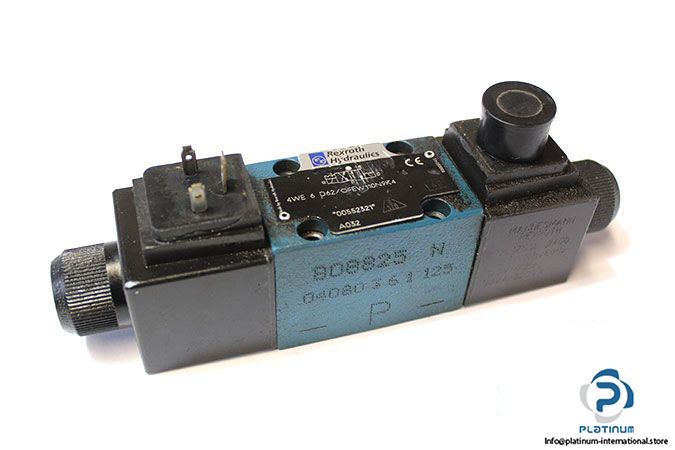

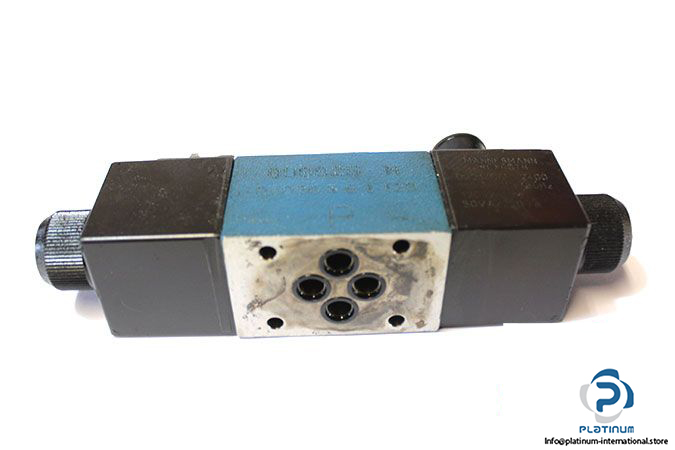

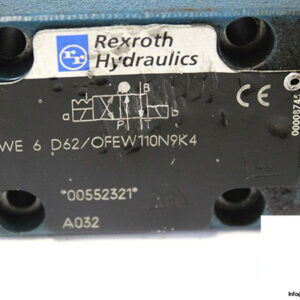

REXROTH 4WE6D62OFEW110N9K4 DIRECTIONAL CONTROL VALVE

The Rexroth 4WE 6 D62/OFEW110N9K4 is a high-performance electrically actuated directional control valve designed for precise and reliable hydraulic fluid control in demanding industrial applications. Its robust design, high pressure tolerance, and compatibility with NG6 sub-plate connections make it a dependable choice for hydraulic systems.

Manufacturer: Rexroth
Type: Directional Control Valve
Model: 4WE 6 D62/OFEW110N9K4
MNR: R900552321

Technical Information

• Fluid: Oil
• Size: NG6
• Type of Actuation: Electrically
• Max Operating Pressure (Ports A, B, P): 350 bar
• Max Operating Pressure (Port T): 210 bar
• Max Flow Rate: 80 l/min
• Ambient Temperature Range: -20 / 50 °C
• Viscosity Range: 2.8 / 500 mm²/s
• Connection: Sub-plate

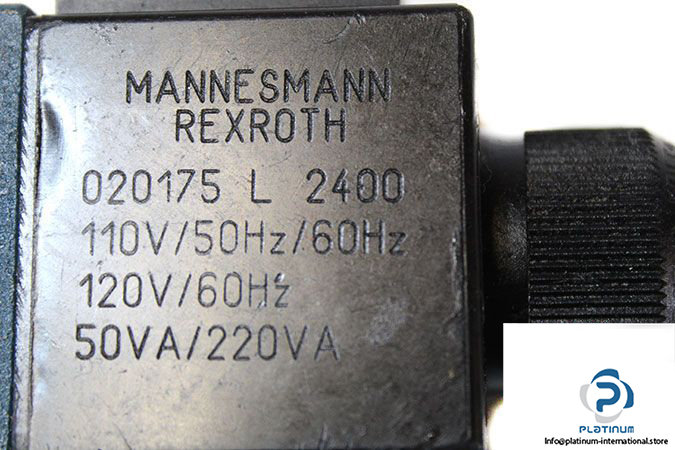

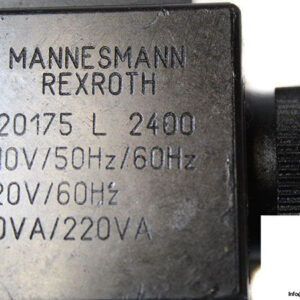

Attachment – Solenoid Coil

Manufacturer: Mannesmann Rexroth
Type: Solenoid Coil
Model: 020175 L 2400

• Voltage Type: AC 50/60 Hz
• Voltage: 110 V AC
• Frequency: 50 … 60 Hz
• Holding Current: 50 VA
• Inrush Current: 220 VA
