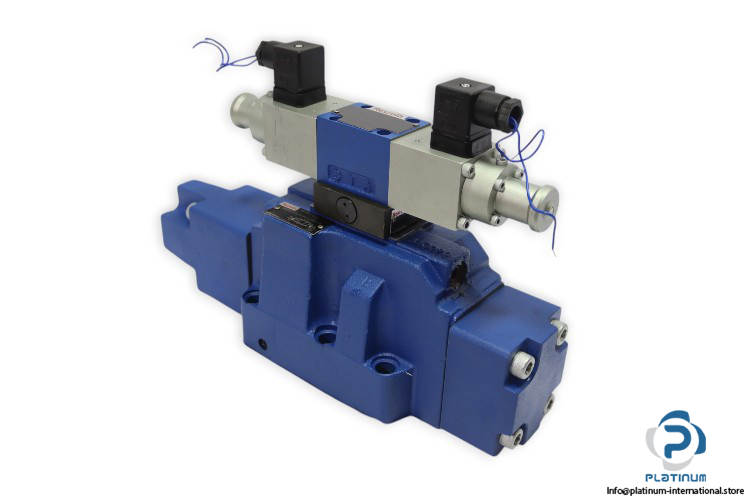

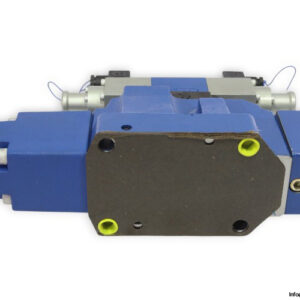

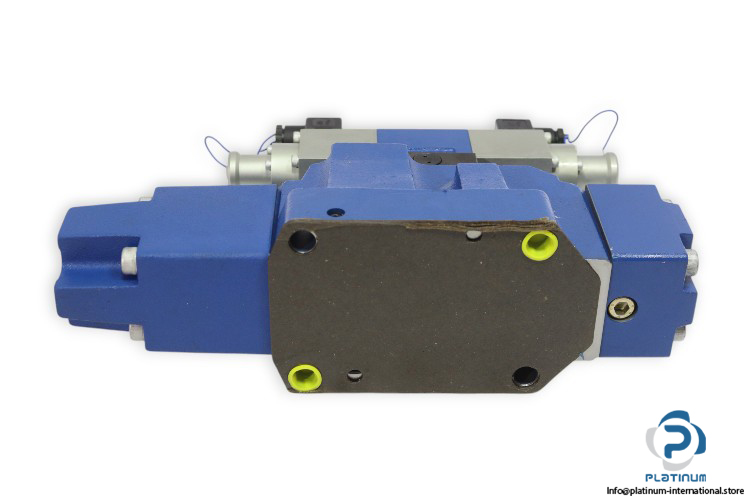

REXROTH 4WRZ25E325-5X/6A24NTZ4/D3M-20=PL Proportional Directional Valve Assembly
The REXROTH 4WRZ25E325-5X/6A24NTZ4/D3M-20=PL is a high-performance proportional directional valve designed for precise electro-hydraulic control in industrial systems. Built for durability and efficiency, this valve assembly ensures smooth fluid flow and reliable operation under high-pressure conditions.
Manufacturer: REXROTH
Type: Proportional Directional Valve

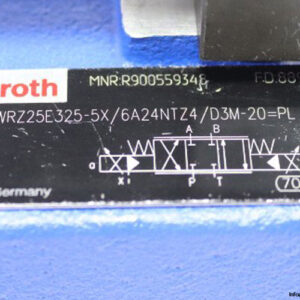

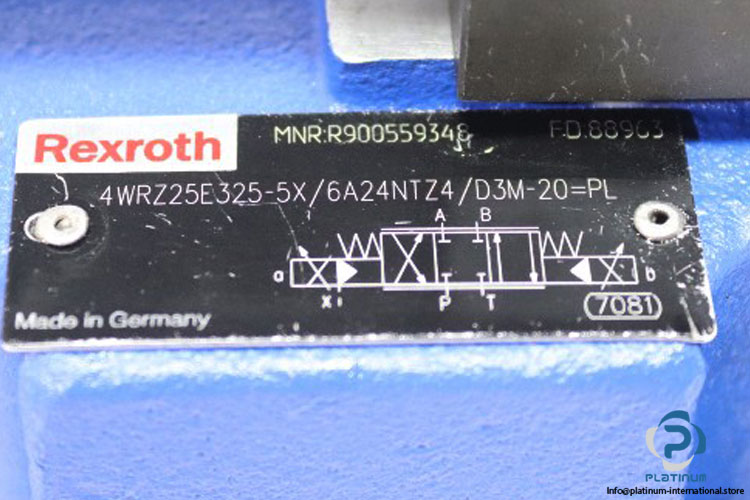

Model: 4WRZ25E325-5X/6A24NTZ4/D3M-20=PL
MNR: R900559348
FD: 88963
Technical Information
- Fluid: Oil
- Nominal Size: NG 25
- Function: 4 by 3 way valve
- Type of Actuation: Electro hydraulic
- Maximum Working Pressure at Port A, B, P (Internal Pilot): 315 bar
- Maximum Working Pressure at Port A, B, P (External Pilot): 350 bar
- Maximum Working Pressure at Port T: 30 bar
- Nominal Flow Rate: 325 liters per minute
- Hydraulic Connection: Sub plate
- Ambient Temperature Range: minus 20 to 60 degree Celsius
- Seals: NBR
Attached Component 1: Proportional Pressure Reducing Valve
- Manufacturer: REXROTH

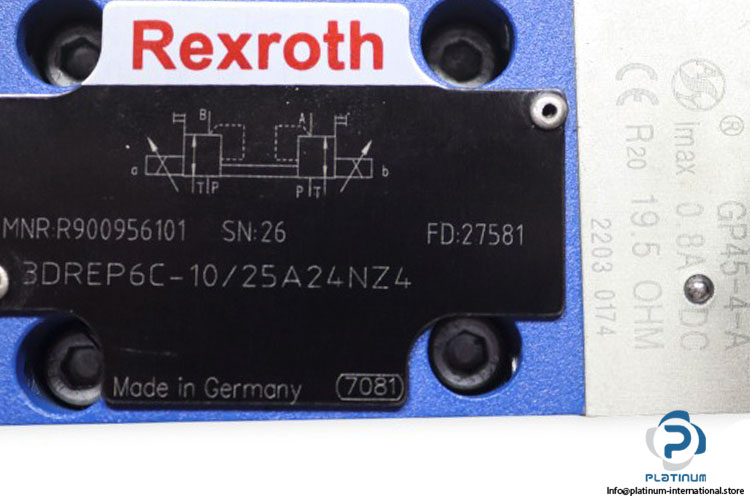

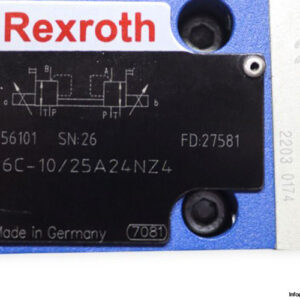

- Model: 3DREP6C-10/25A24NZ4
- Part Number: R900956101
- Serial Number: 26
- FD: 27581
- Nominal Size: NG 6
- Type of Actuation: Electrically
- Maximum Working Pressure (Port P, A, B): 100 bar
- Maximum Pressure (Port T): 30 bar
- Maximum Flow Rate: 15 liters per minute
- Ambient Temperature Range: minus 20 to plus 60 degree Celsius
- Hydraulic Connection: Sub plate

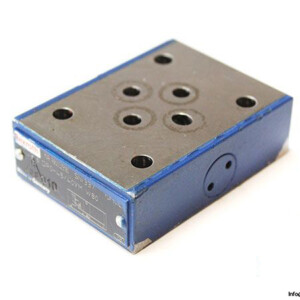

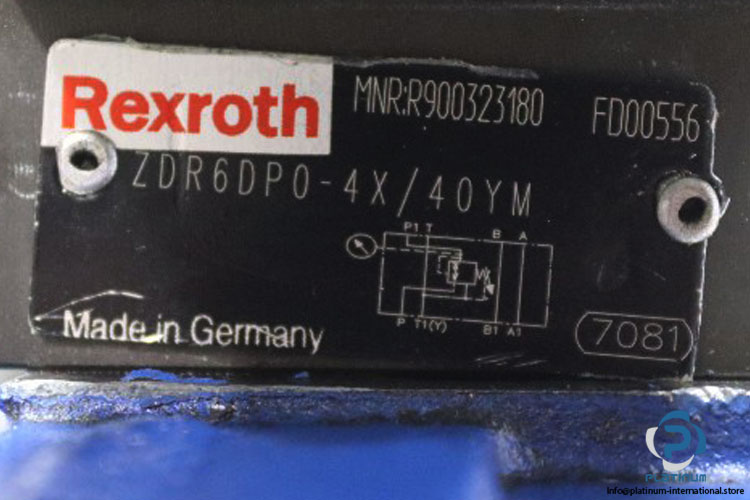

Attached Component 2: Pressure Reducing Valve
- Manufacturer: REXROTH

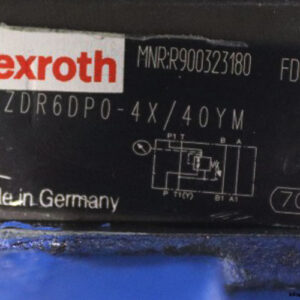

- Model: ZDR6DP0-4X/40YM
- Part Number: R900323180
- FD: 00556
- Nominal Size: NG 6
- Pilot Oil Supply: Internal, Pilot Oil Return: External, Sandwich plate
- Secondary Pressure: Up to 40 bar
- Maximum Working Pressure: 315 bar
- Maximum Pressure (Port T): 160 bar
- Maximum Flow Rate: 50 liters per minute
- Ambient Temperature Range: minus 30 to 80 degree Celsius
- Hydraulic Connection: Sub plate

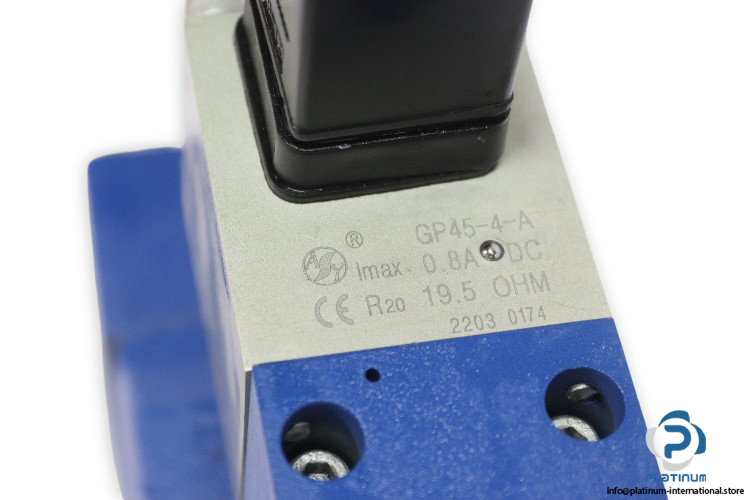

Attached Component 3: Solenoid Coil

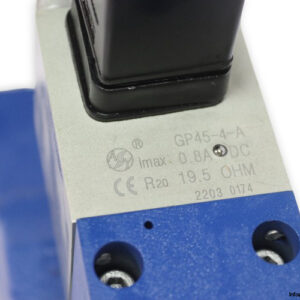

- Model: GP45-4-A
- Reference Number: 2203 0174
- Current Rating: 0.8 A DC
- Resistance: 19.5 ohm
