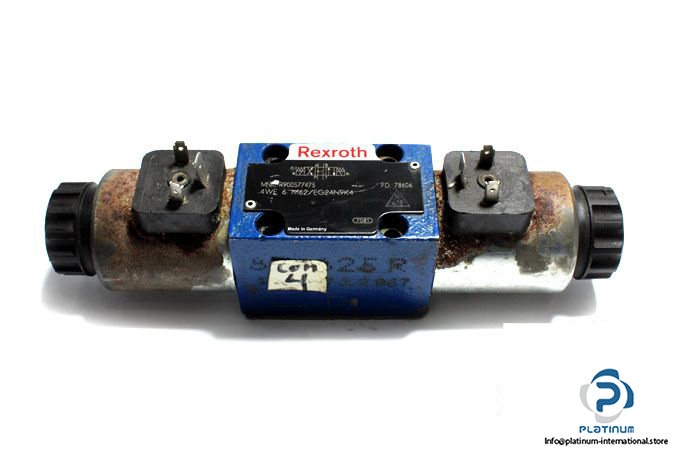

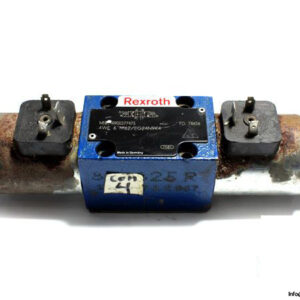

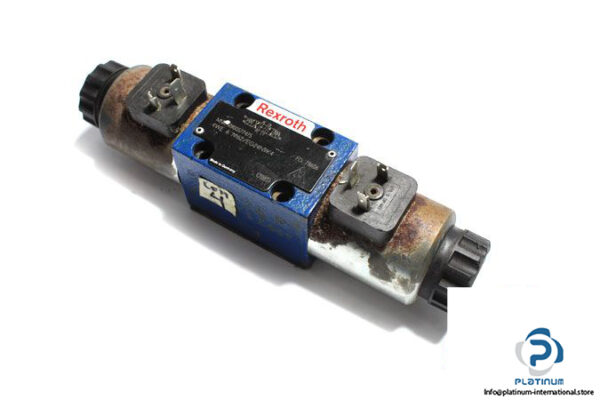

REXROTH 4WE6M62EG24N9K4 DIRECTIONAL CONTROL VALVE

The Rexroth 4WE 6 M62/EG24N9K4 is a direct-operated directional control valve designed for precise hydraulic flow control in demanding industrial applications. Built for durability and consistent performance, it is suitable for use in high-pressure systems with up to 350 bar operating pressure.

Manufacturer: Rexroth
Type: Direct Operated Directional Control Valve
Model: 4WE 6 M62/EG24N9K4

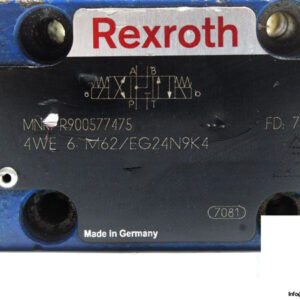

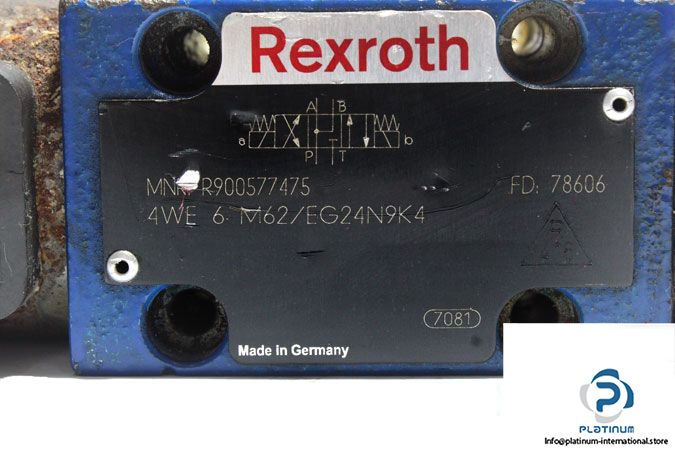

MNR: R900577475

Technical Information

• Fluid: Oil
• Nominal Size: NG6
• Ports: 4 main ports
• Type of Actuation: Electrically
• Max. Working Pressure (Port P, A, B): 350 bar
• Max. Pressure (Port T): 210 bar
• Max. Flow Rate: 80 l/min
• Hydraulic Connection: Sub-Plate
• Seals: NBR
• Fluid Temperature Range: -30 / 80 °C
• Nominal Voltage per Coil: 24 V DC
