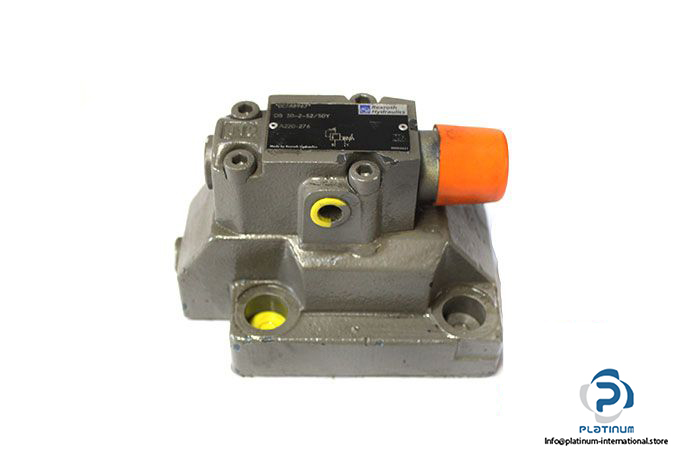

Manufacturer: REXROTH HYDRAULICS

Type: Pressure Relief Valve Pilot Operated

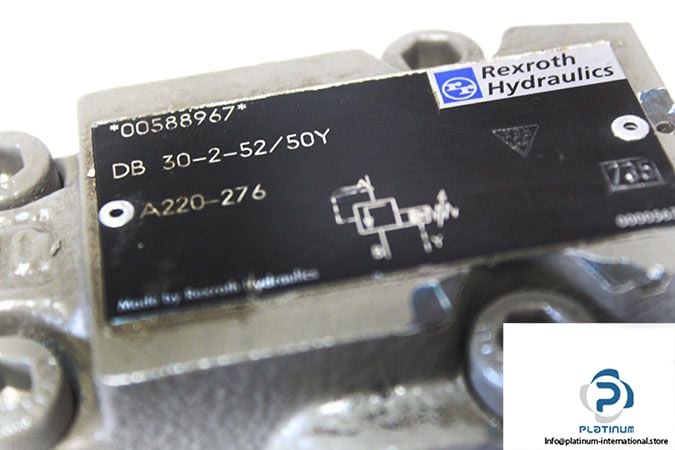

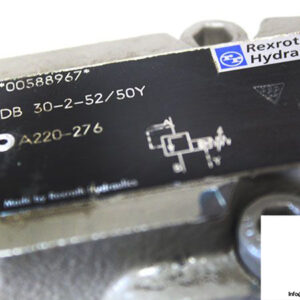

Model: DB30-2-52/50Y

MNR: R900588967

Size: 30

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Setting: 50 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P, X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure at Port Y :315 bar

Maximum Flow Rate: 650 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-Plate

Weight: 4.86 kg
