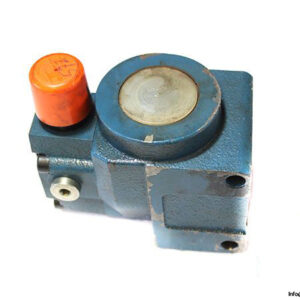

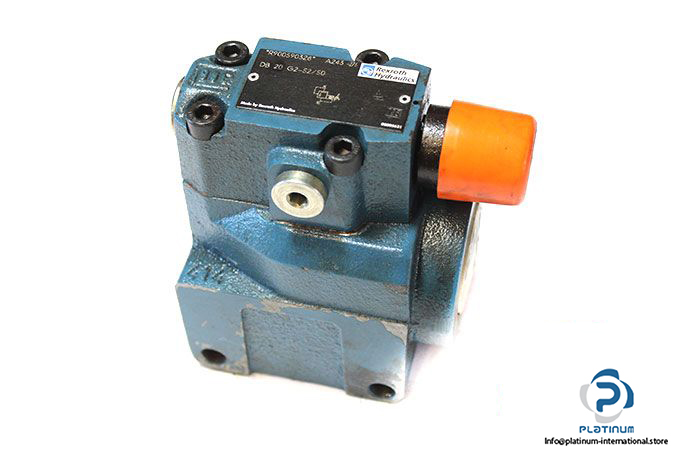

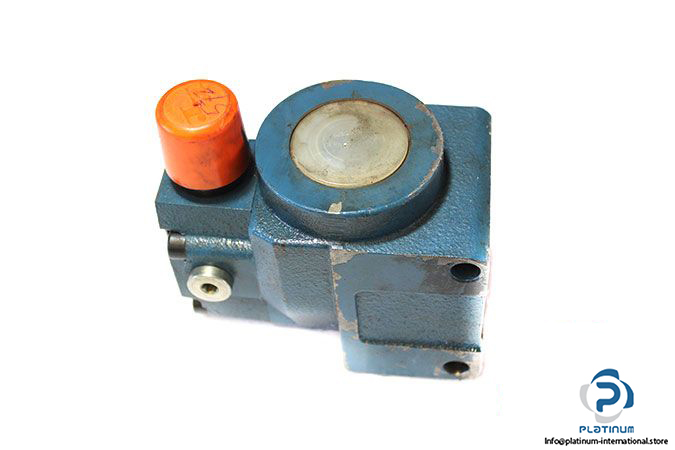

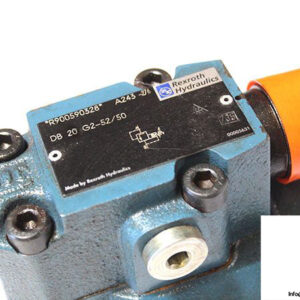

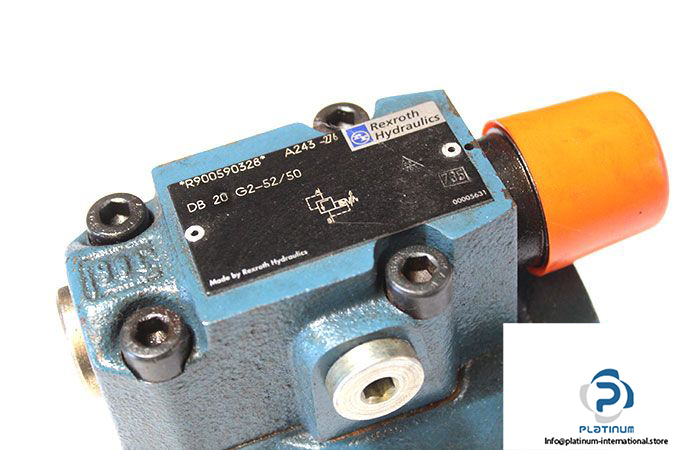

Manufacturer: REXROTH

Type: Pressure Relief Valve Pilot Operated

Model: DB 20 G2-52/50

MNR: R900590328

Size: 20

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon And Protective Cap

Pressure Setting: 50 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P, X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure at Port Y :315 bar

Maximum Flow Rate: 500 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Threaded (G1)

Weight: 5.26 kg
