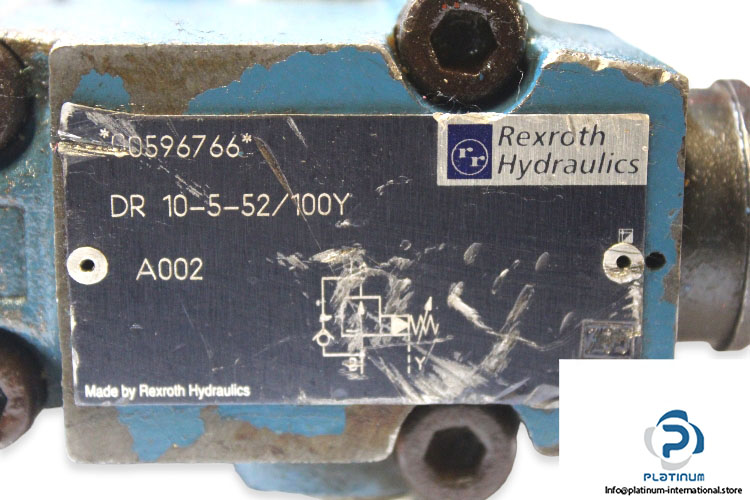

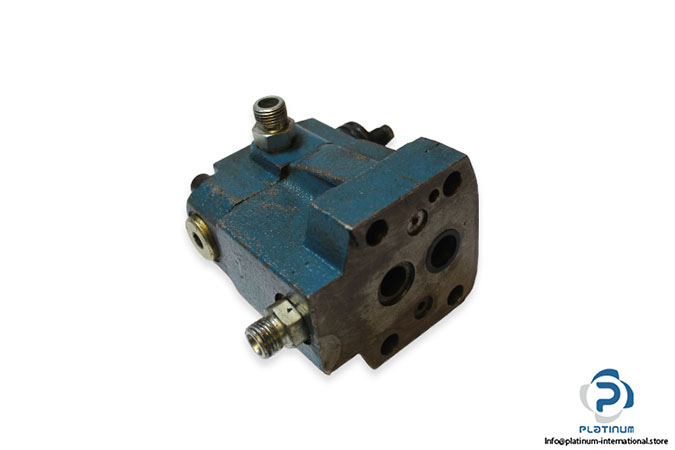

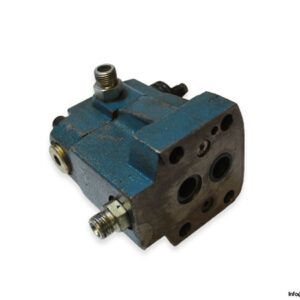

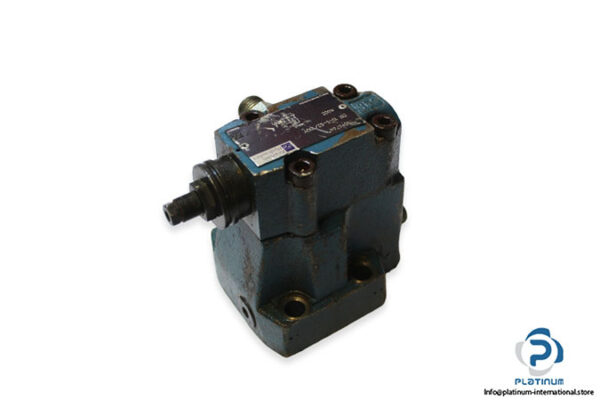

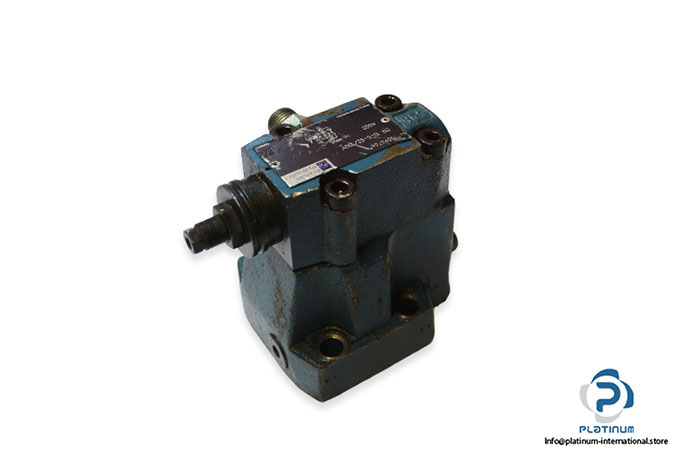

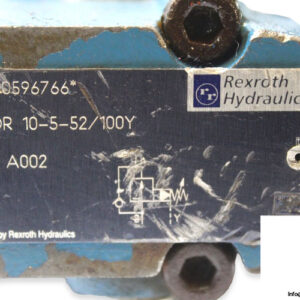

Manufacturer: REXROTH

Type: Pressure Reducing Valve Pilot Operated

Model: DR10-5-52/100Y

MNR: R900596766

Size: 10

Adjustment Element: Sleeve with Hexagon and Protective Cap

Pressure Setting: 100 bar

Ambient Temperature Range: –30 …. +50 ^oC

Nominal pressure: 350 bar

Maximum Operating Pressure at port B: 350 bar

Operating pressure range at port A: 10 to 350 bar

Maximum Back Pressure at port Y: 350 bar

Maximum Flow Rate: 150 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate
