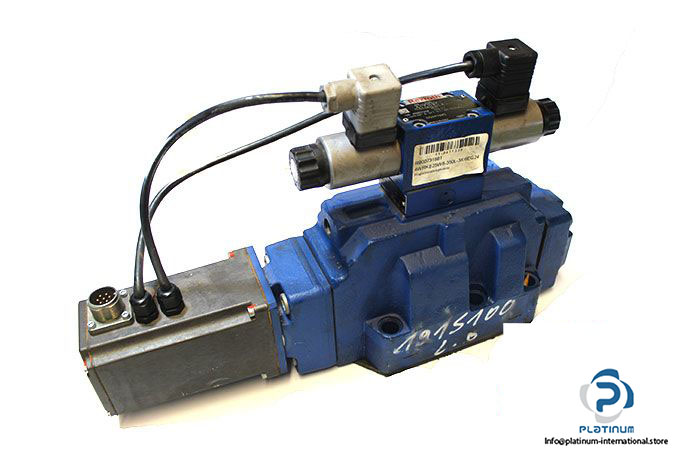

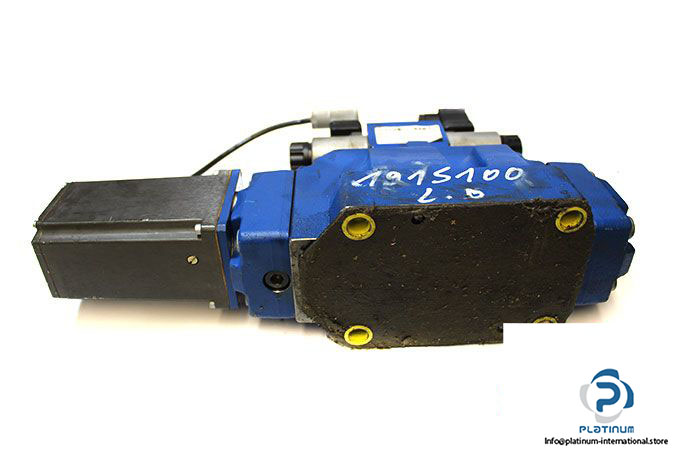

REXROTH 4WRKE 25 W8-350L-35/6EG24ETK31/A1D3M PROPORTIONAL DIRECTIONAL VALVE (PILOT OPERATED)
High-precision Rexroth proportional directional valve for advanced hydraulic control. This pilot-operated valve system is engineered for demanding industrial environments requiring exact control, high pressure handling, and integrated electronic interfaces.
Manufacturer: REXROTH
Type: Proportional Directional Valve Pilot Operated

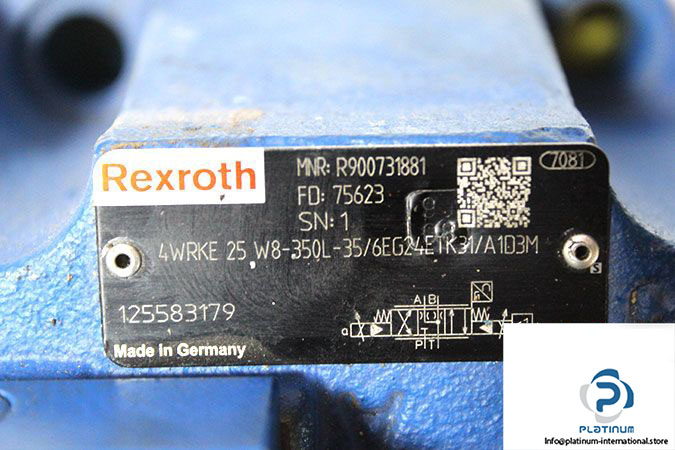

Model: 4WRKE 25 W8-350L-35/6EG24ETK31/A1D3M
MNR: R900731881
Reference No.: 125583179 / 75623 / 1
Main Valve Technical Specifications
- Size: 25
- Direct Voltage: 24 V
- Operating Pressure (Pilot Control): 25 to 250 bar
- Operating Pressure (Main Valve, Ports P, A, B): 25 to 250 bar
- Operating Pressure (Port T): 250 bar
- Nominal Flow Rate: 350 L/min
- Hydraulic Fluid Temperature Range: -20 to +80 °C
- Viscosity Range: 20 to 380 mm²/s
- Electrical Connection: 12 Connector, 7-pole
Included Attachments

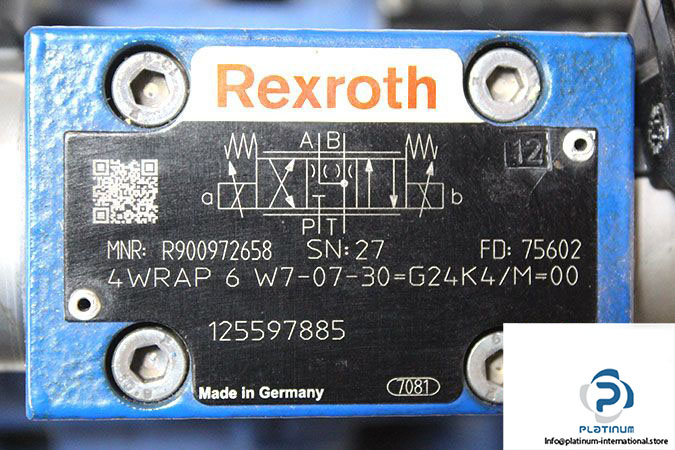

1. REXROTH R900972658 PILOT OPERATED VALVE
Type: Pilot Operated Valve
Model: 4WRAP 6 W7-07-30=G24K4/M=00
MNR: R900972658
Reference No.: 125597885
Size: 6
Max Operating Pressure: 350 bar
Supply Voltage: 24 V
2. REXROTH R900890218 CONTROLLER
Type: Controller
MNR: R900890218
Supply Voltage: 24 V
