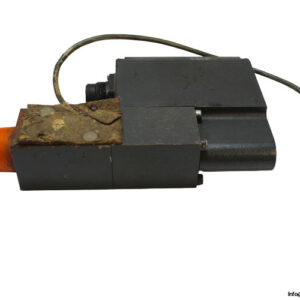

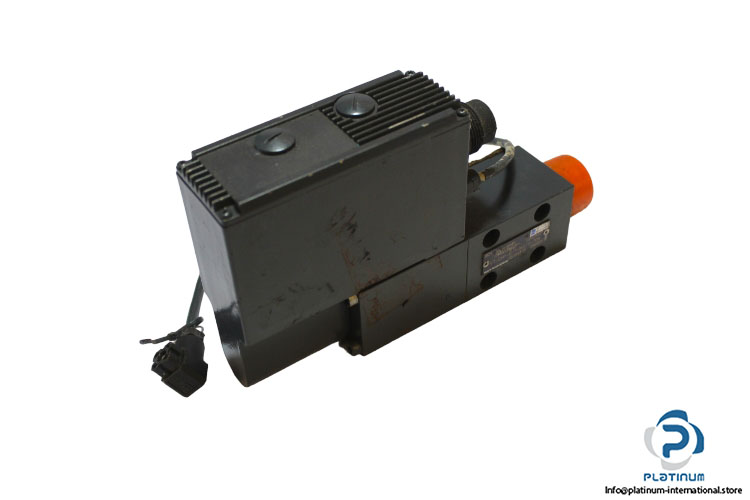

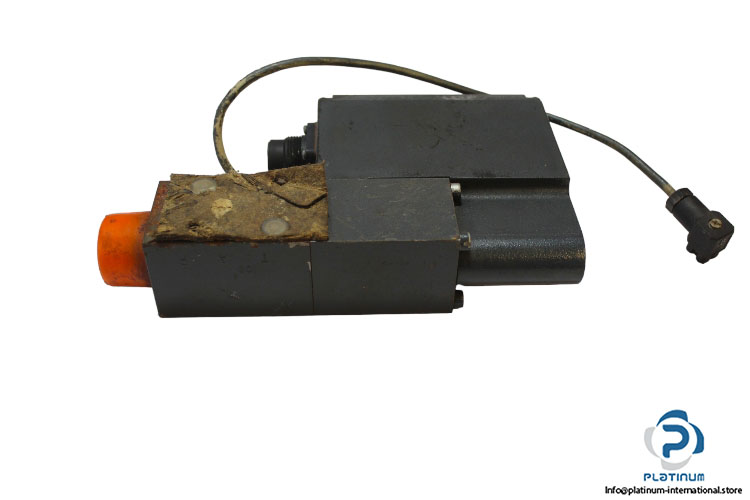

Rexroth VT-DFP-13/1-0E2/V-005 Proportional Directional Valve
The Rexroth VT-DFP-13/1-0E2/V-005 Proportional Directional Valve is designed for high-precision hydraulic flow control in industrial and automation applications. With a nominal size of 10, it delivers efficient fluid regulation, ensuring optimal performance under varying pressure and temperature conditions.
- Manufacturer: Rexroth
- Type: Proportional Directional Valve

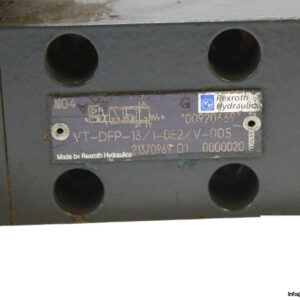

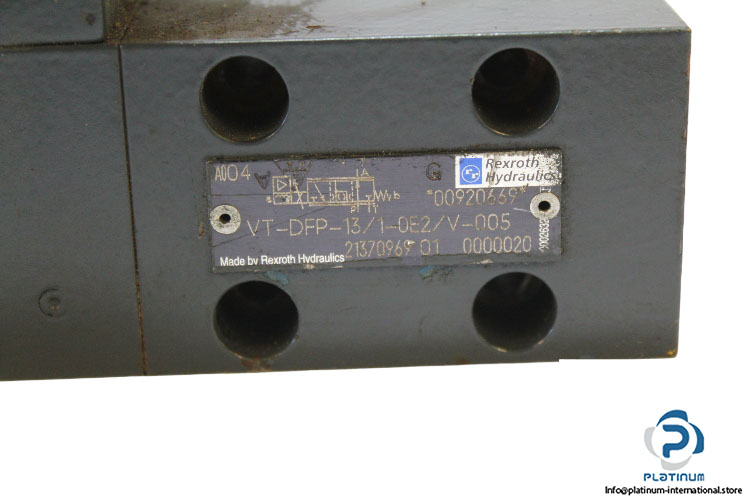

- Model: VT-DFP-13/1-0E2/V-005
- MNR: R900920669
- Nominal Size: 10
Technical Information
- Ambient Temperature Range: -20 to +60 °C
- Maximum Working Pressure (Port P, A): 350 bar
- Maximum Working Pressure (Port T): 100 bar
- Nominal Flow Rate: 50 to 80 l/min
- Fluid Temperature Range: -20 to +70°C
- Viscosity Range: 20 to 380 mm²/s
- Hydraulic Connection: Sub-plate
Engineered for precision hydraulic control, the Rexroth VT-DFP-13/1-0E2/V-005 ensures stability, efficiency, and reliability in demanding fluid power systems.
