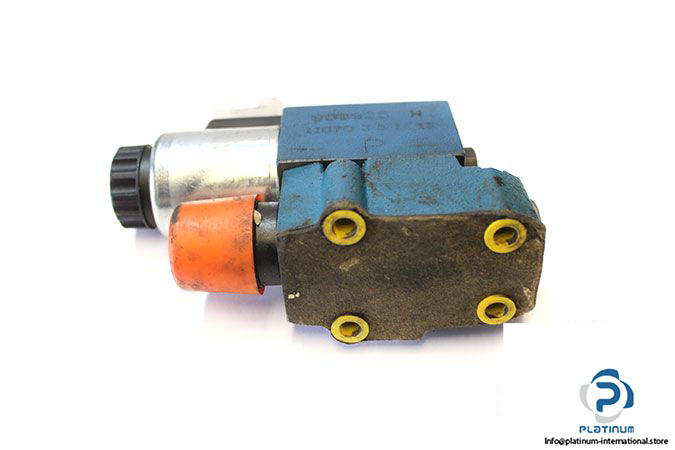

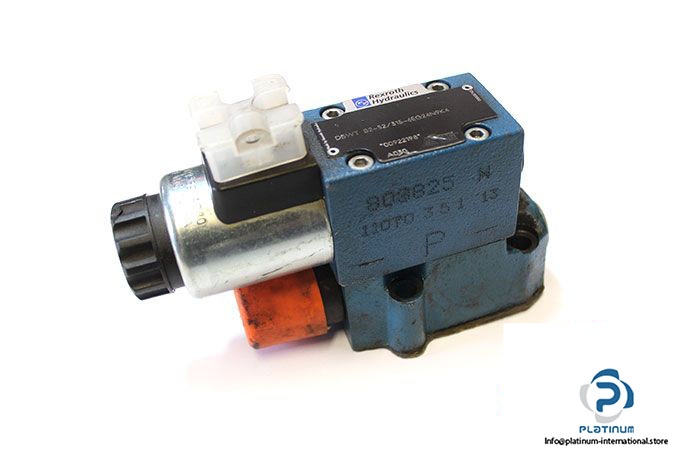

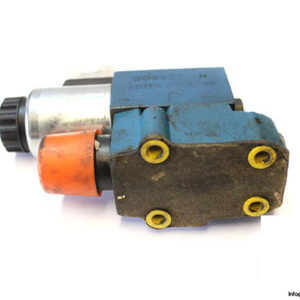

Manufacturer: Rexroth

Type: Pressure Relief Valve Pilot Operated

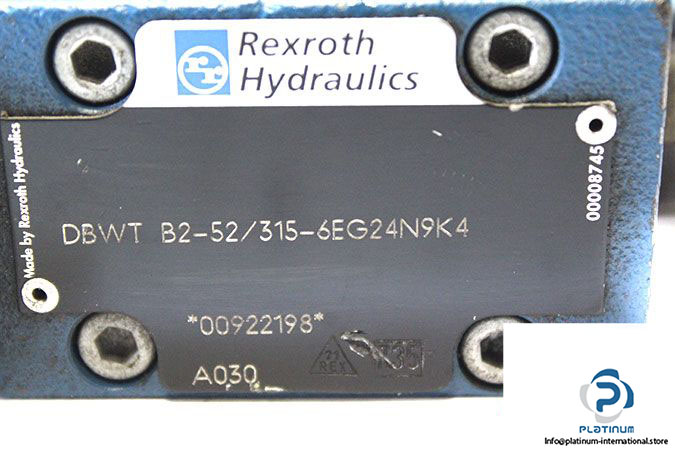

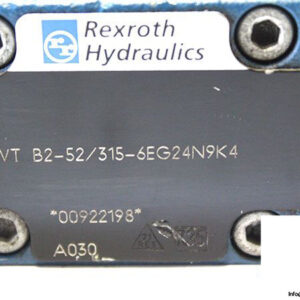

Model: DBWT B2-52/315-6EG24N9K4

MNR: R900922198

Size: 6

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Sitting: 140 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports P :350 bar

Maximum Operating Pressure at Ports T :315 bar

Maximum Backpressure at Ports T: 210 with DC solenoid

160 with AC solenoid

Maximum Flow Rate: 500 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

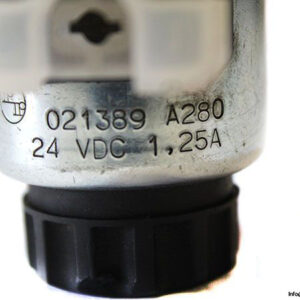

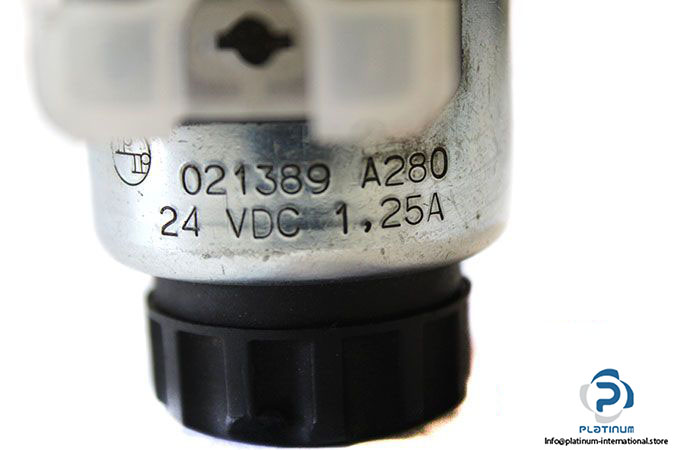

Attachment: REXROTH 021389 A280 SOLENOID COIL

Manufacturer: Rexroth

Type: Solenoid Coil

Model: 021389 A280

Current : 1.25 A

Voltage: 24 VDC

Weight: 2.60 kg
