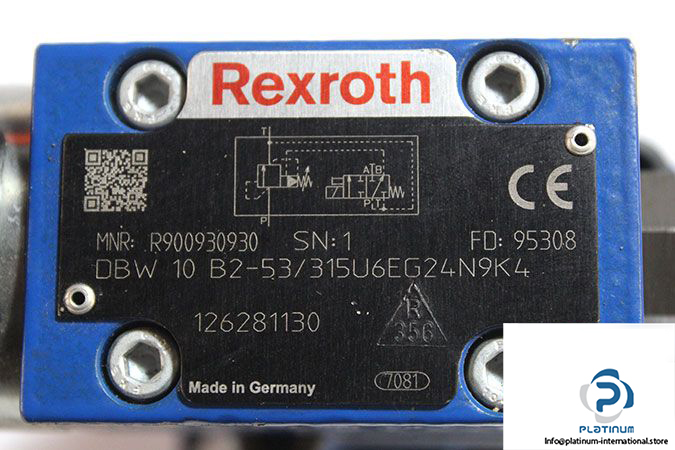

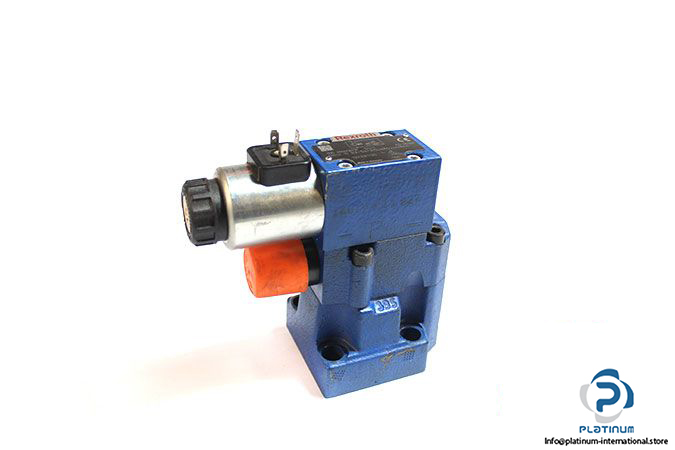

Manufacturer: Rexroth

Type: Pressure Relief Valve Pilot Operated

Model: DBW 10 B2-53/315U6EG24N9K4

MNR: R900930930

Size: 10

Pressure Setting: 315 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports P,X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure at Ports Y,T : 210 with DC solenoid , 160 with AC solenoid

Maximum Flow Rate: 250 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

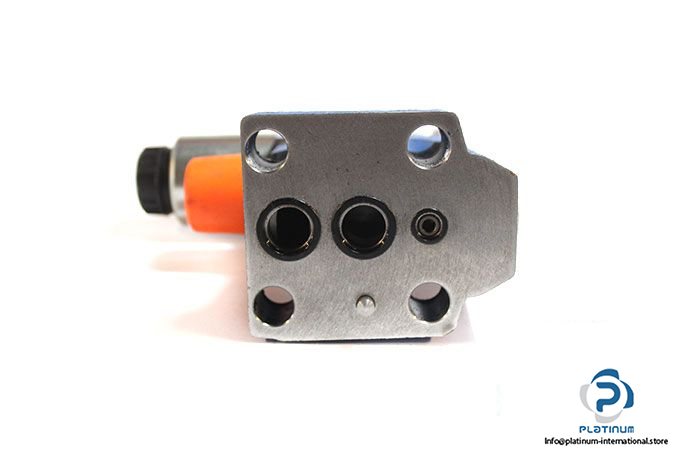

Connection: Sup-plate

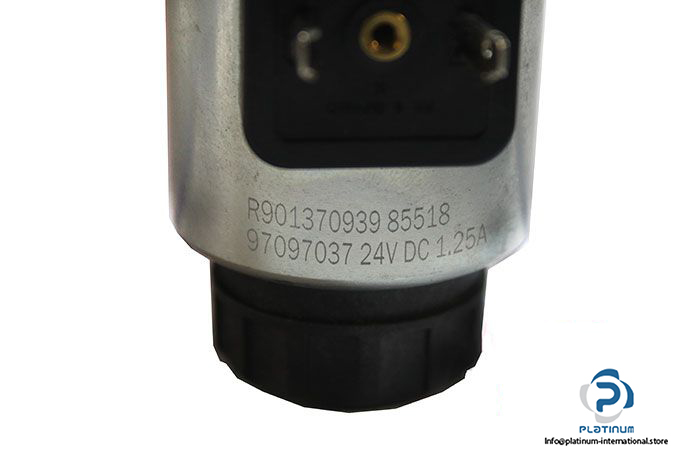

Attachment:  REXROTH R901370939 SOLENOID COIL

Manufacturer: REXROTH

Type: Solenoid Coil

MNR: R901370939

Voltage: 24 V DC

Current: 1.25 A

Weight: 4.46kg
