Manufacturer: Rexroth

Type: Directional Valve Pilot Operated

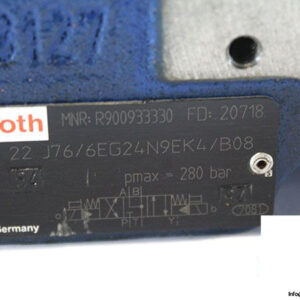

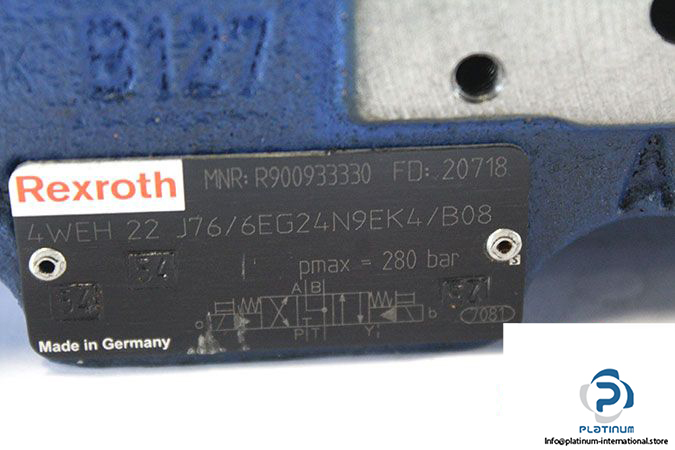

Model: 4WEH 22 J76/6EG24N9EK4/B08

MRN: R900933330

Size: 22

Type of Actuation: Electrohydraulic

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports P, A, B: 280 bar

Maximum Pilot Pressure: 210 bar

Fluid: Oil

Maximum Flow Rate: 1100 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-Plate

Weight: 11kg
