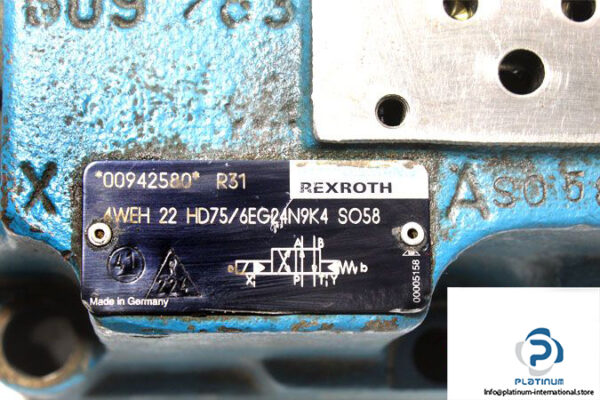

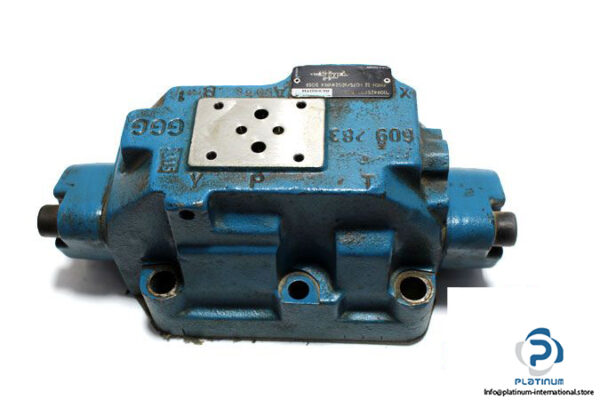

REXROTH 4WEH22D756EG24N9K4SO85 PILOT OPERATED DIRECTIONAL CONTROL VALVE
The Rexroth 4WEH 22 D75/6EG24N9K4 SO85 is a high-performance pilot operated directional control valve, engineered for demanding hydraulic systems. Its electro-hydraulic actuation ensures precise flow control, making it ideal for high-pressure and high-flow applications.
Manufacturer: REXROTH
Type: Pilot Operated Directional Control Valve
Model: 4WEH 22 D75/6EG24N9K4 SO85
MNR: R900942580
Technical Information
- Fluid: Oil
- Nominal Size: NG22
- Type of Actuation: Electro-Hydraulic
- Max. Working Pressure: 280 bar
- Nominal Flow Rate: 450 l/min
- Supply Voltage: 24 V DC
- Hydraulic Connection: Sub-plate
- Seals: NBR
- Fluid Temperature Range: -30 / 80 °C
