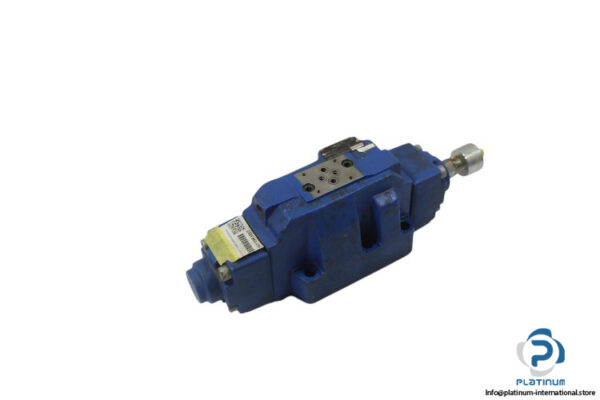

Rexroth H-4 WEH 25 C67/6EG24N9K4QMBG24 Directional Spool Valve
The Rexroth H-4 WEH 25 C67/6EG24N9K4QMBG24 Directional Spool Valve is a high-performance electro-hydraulic valve designed for precise fluid control in industrial hydraulic systems. Engineered for high-pressure applications, it ensures reliable operation under demanding conditions. The valve comes with a Rexroth R900174537 Pressure Switch (GIV50) for enhanced monitoring and control.
- Manufacturer: Rexroth
- Type: Directional Spool Valve

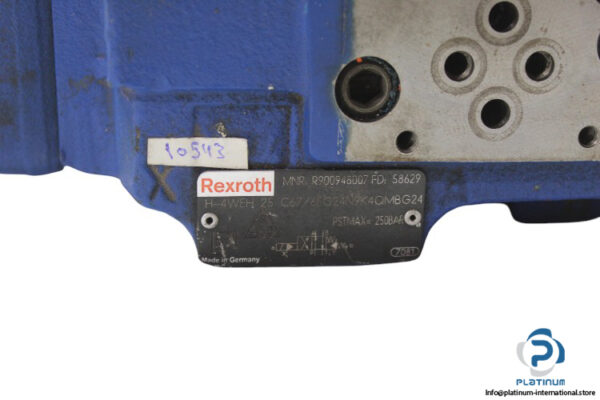

- Model: H-4 WEH 25 C67/6EG24N9K4QMBG24
- MNR: R900948007
Technical Specifications
- Nominal Size: NG25
- Type of Actuation: Electro-hydraulic
- Max. Working Pressure (Port P, A, B): 350 bar
- Max. Pressure (Port T): 250 bar
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -20 to 80 °C
- Direct Voltage: 24 V

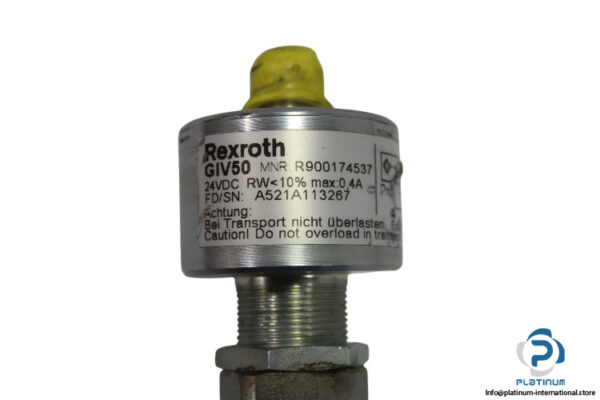

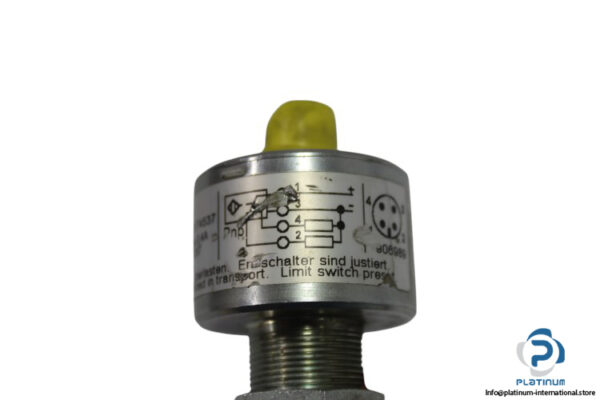

Attached Pressure Switch “ Rexroth R900174537 (GIV50)
- Connection: G ½, Threaded
- Electrical Connection: M12 Connector, 4-pin
- Supply Voltage: 24 V DC
- Current Rating: 0.4 A
