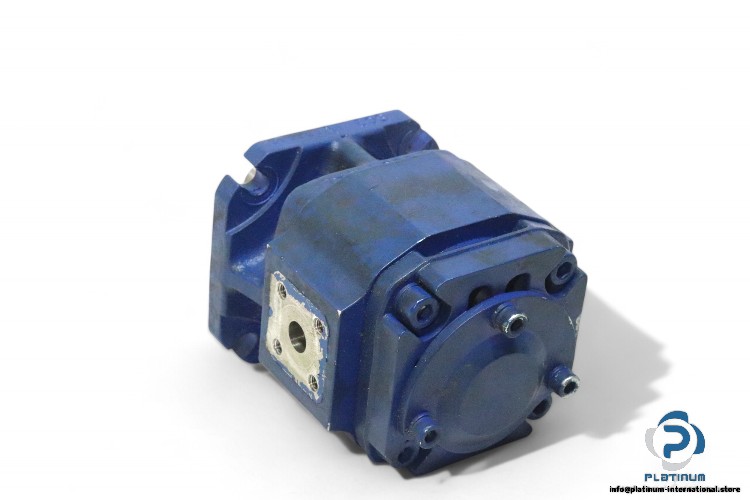

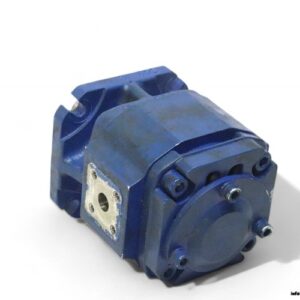

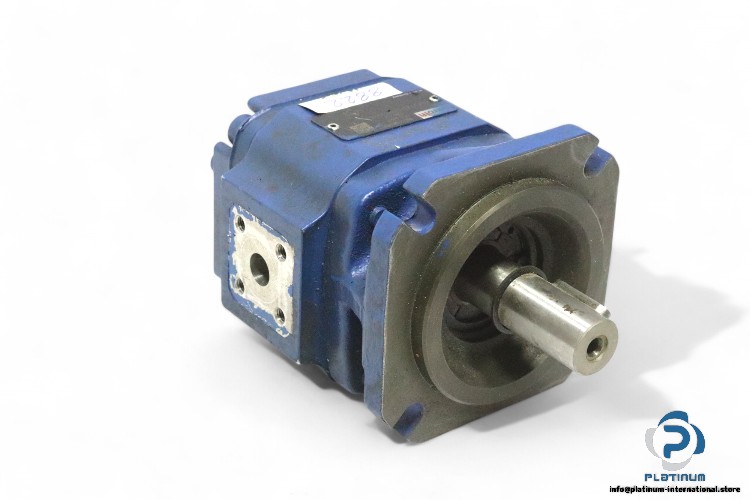

BOSCH REXROTH PGF2-22/011RE20VE4 INTERNAL GEAR PUMP

The BOSCH REXROTH PGF2-22/011RE20VE4 Internal Gear Pump is engineered for reliable and efficient hydraulic fluid handling. With a constant displacement type, this pump offers a maximum operating pressure of 210 bar and a flow rate of up to 39.6 l/min. Designed for durability, it is ideal for various industrial applications.

Manufacturer: BOSCH REXROTH

Type: Internal Gear Pump

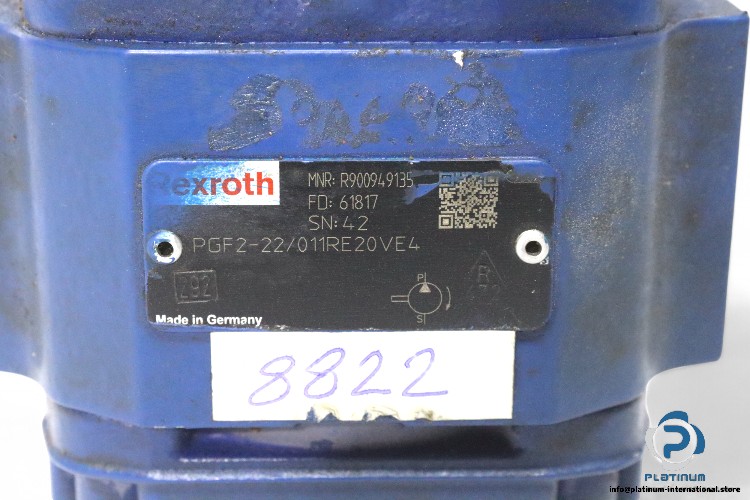

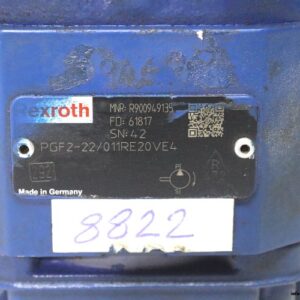

Model: PGF2-22/011RE20VE4

MRN: R900949135

Technical Specifications

• Displacement Type: Constant
• Size [cm³]: 11
• Operating Pressure, Max. [bar]: 210
• Max. Flow [l/min]: 39.6
• Shaft End: Cylindrical Ø 20 with fitting key, ISO 3019-2
• Direction of Rotation: Clockwise rotation
• Mounting Flange: 4-hole mounting flange 80B4SW according to ISO 3019-2
• Hydraulic Fluid: HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR
• Seals: FKM
