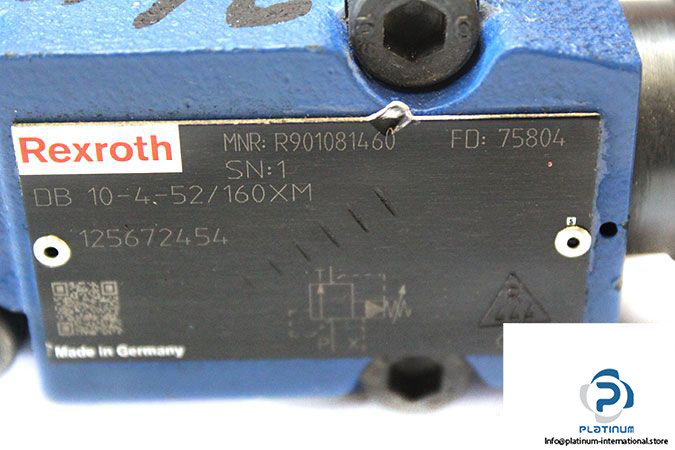

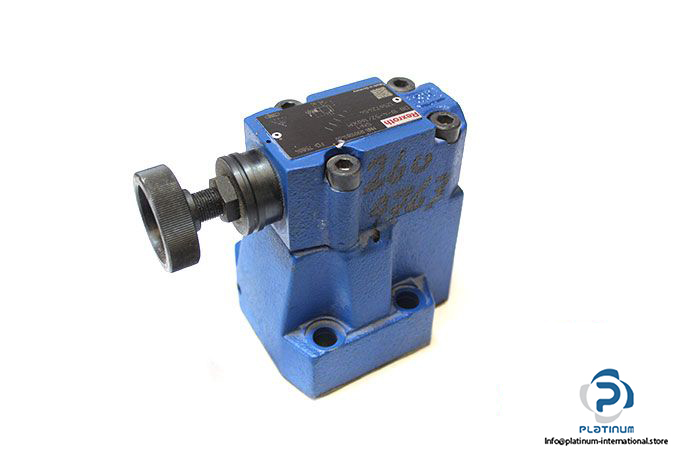

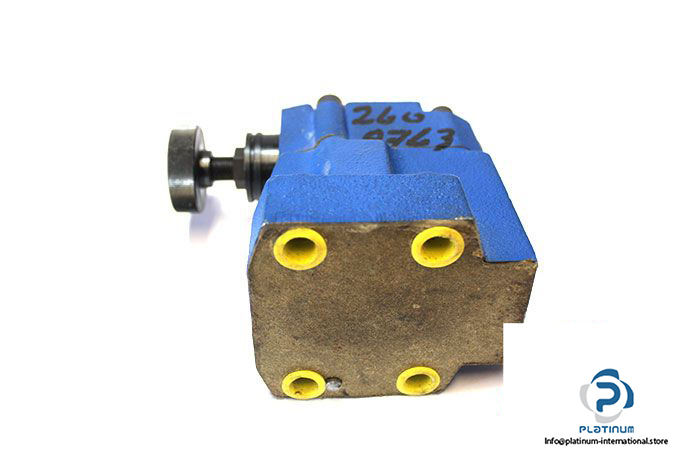

Manufacturer: REXROTH

Type: Pressure Relief Valve Pilot Operated

Model: DB10-4-52/160XM

MNR: R901081460

Size: 10

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Maximum Set Pressure: 50 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P, X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Flow Rate: 250 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 3.70 kg
