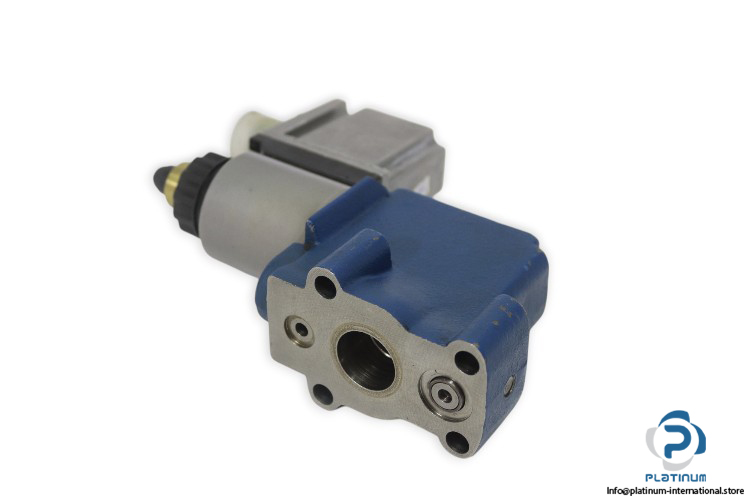

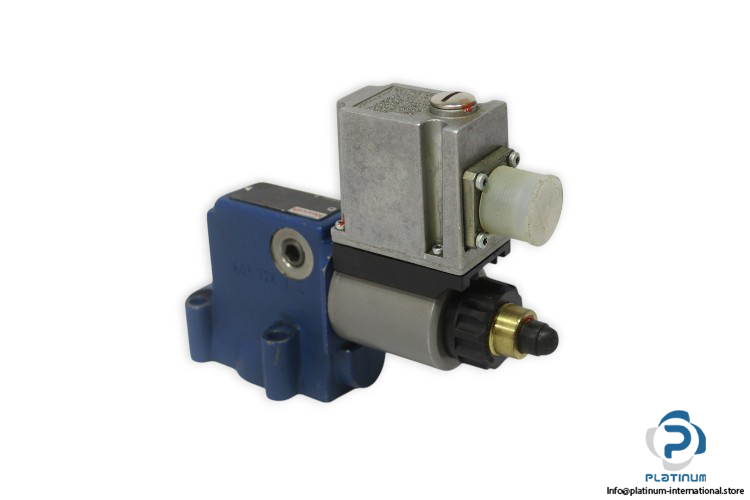

REXROTH DREE 30-60/200YG24K31A1M Proportional Pressure Reducing Valve
The REXROTH DREE 30-60/200YG24K31A1M Proportional Pressure Reducing Valve provides precise pressure control and stable hydraulic regulation in industrial systems. Designed for high performance and reliability, it is suitable for demanding applications requiring accurate proportional control.
Manufacturer: REXROTH
Type: Proportional Pressure Reducing Valve

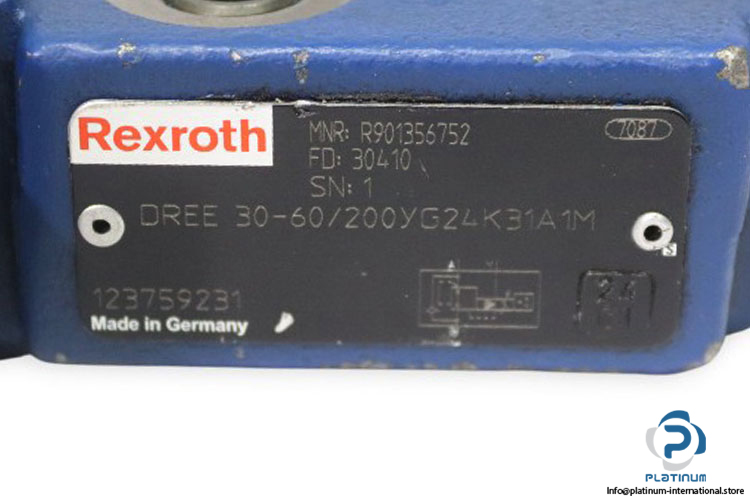

Model: DREE 30-60/200YG24K31A1M
MRN: R901356752
REF No.: 123759231 / 30410
SN: 1
Technical Information
- Nominal Size: 32
- Pressure Rating: Up to 200 bar
- Maximum Operating Pressure “ Port A and B: 315 bar
- Maximum Flow of the Main Valve: 300 l/min
- Hydraulic Connection: Sub-plate
- Fluid Temperature Range: -20 / +70 °C
- Supply Voltage per Coil: 24 V DC
- Connection: Plug to DIN EN 175201-804
- Viscosity Range: 15 to 380 mm²/s
