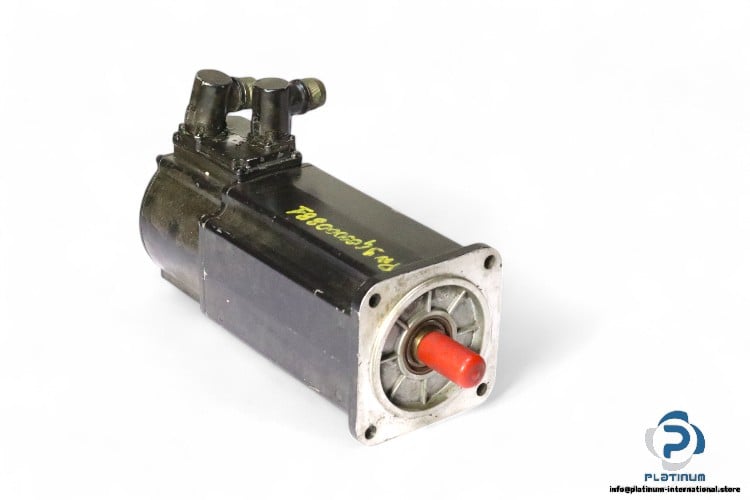

REXROTH INDRAMAT MHD071B-035-PG0-UN PERMANENT MAGNET MOTOR
The REXROTH INDRAMAT MHD071B-035-PG0-UN Permanent Magnet Motor offers exceptional performance for various industrial applications. It provides both natural convection and surface cooled options, with a rated torque of 8.0 Nm (natural convection) and 12.0 Nm (surface cooled), ensuring precise control and reliability.
Manufacturer: REXROTH INDRAMAT
Type: PERMANENT MAGNET MOTOR
Model: MHD071B-035-PG0-UN
MRN: R911273364

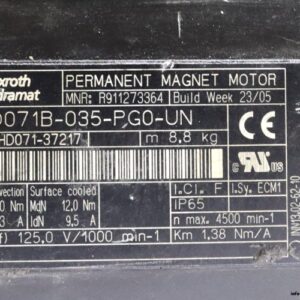

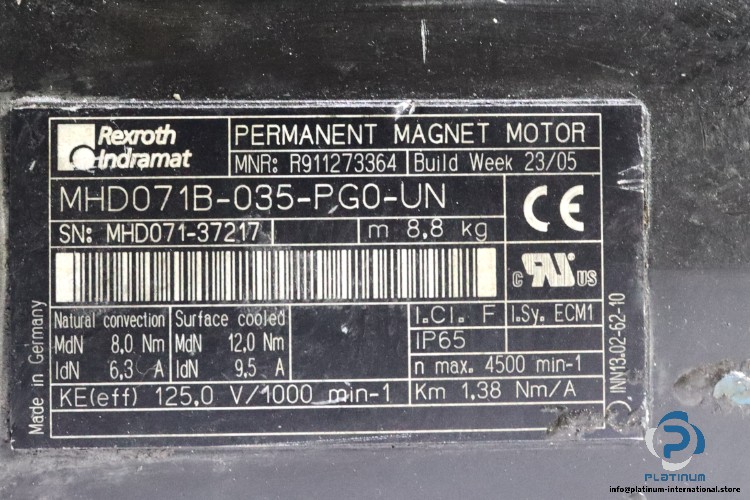

Technical Specifications
- Natural Convection:
- Rated Current: 6.3 A
- Rated Torque: 8.0 Nm
- Surface Cooled:
- Rated Current: 9.5 A
- Rated Torque: 12.0 Nm
- Max. Speed: 4500 RPM
- Protection Class: IP65
- Voltage Constant: 125 V/1000rpm
- Torque Constant: 1.38 Nm/A
- Insulation Class: F
