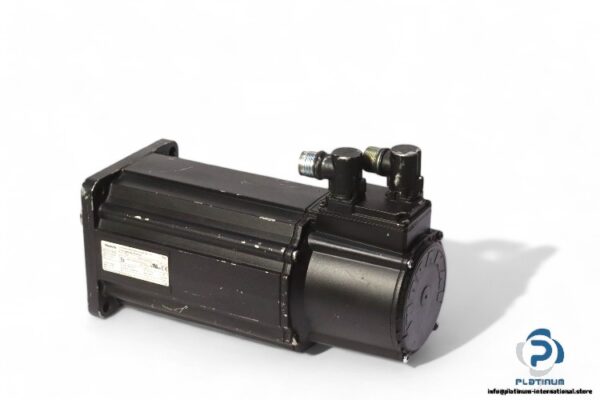

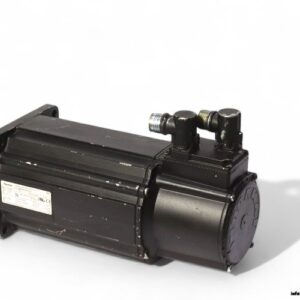

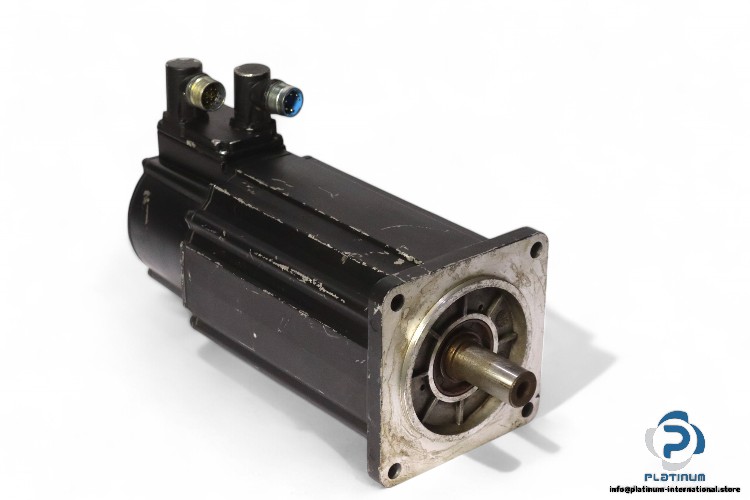

REXROTH MHD090B-047-NP0-UN 3-Phase Permanent Magnet Motor

The REXROTH MHD090B-047-NP0-UN 3-Phase Permanent Magnet Motor is a high-performance motor designed for industrial applications, offering both natural convection and surface cooling options. With a rated voltage of 600 V, this motor provides exceptional efficiency and torque performance.

Manufacturer: REXROTH

Type: 3-Phase Permanent Magnet Motor

Model: MHD090B-047-NP0-UN

MRN: R911286080

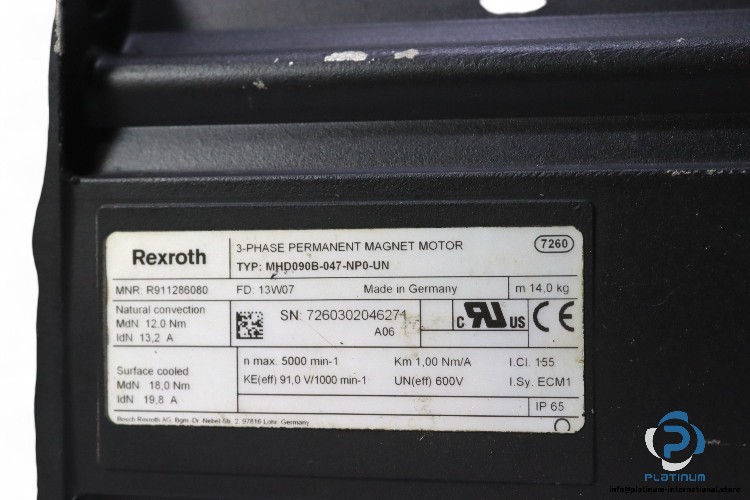

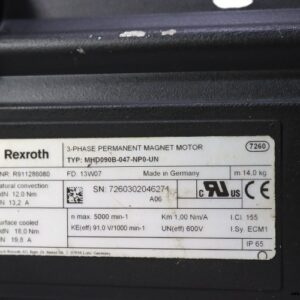

Technical Specifications

• Natural Convection:
  • Rated Current: 13.2 A
  • Rated Torque: 12.0 Nm
• Surface Cooled:
  • Rated Current: 19.8 A
  • Rated Torque: 18.0 Nm
• Max. Speed: 5000 RPM
• Rated Voltage: 600 V
• Protection Class: IP65
• Voltage Constant: 91 V/1000 rpm
• Torque Constant: 1 Nm/A
