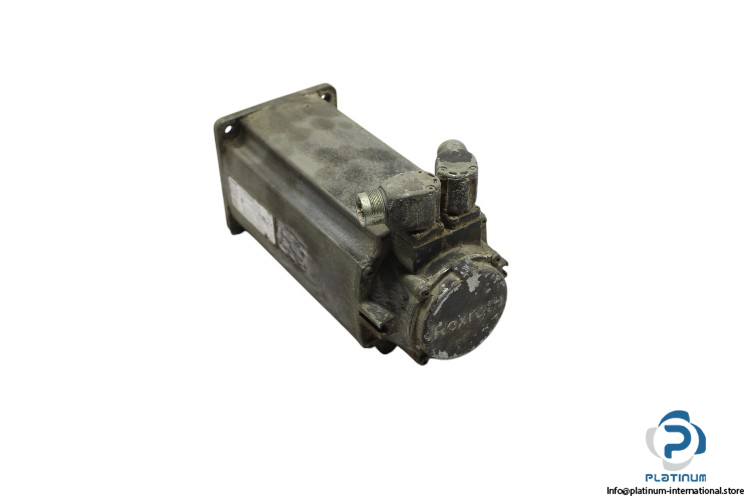

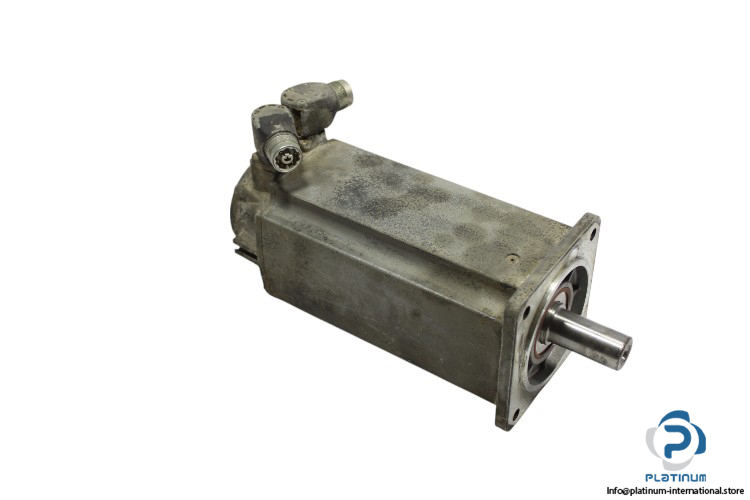

REXROTH PERMANENT MAGNET MOTOR

The Rexroth Permanent Magnet Motor (Model: MSK060C-0600-NN-M1-UG1-NNNN, MRN: R911306053) is designed for high-performance applications with natural convection and surface-cooled options. This motor offers a range of torque, current, and speed ratings, ensuring efficient operation in various industrial systems. It is equipped with a high protection class (IP65) and a reliable brake system for optimal performance.

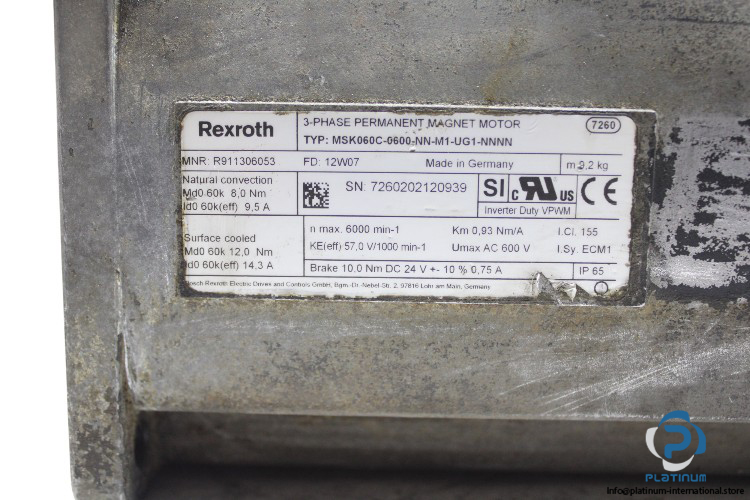

Manufacturer: Rexroth

Type: Permanent Magnet Motor

Model: MSK060C-0600-NN-M1-UG1-NNNN

MRN: R911306053

Technical Specifications

• Natural Convection:
  • Rated Torque: 8.0 Nm
  • Rated Current: 9.5 A
• Surface Cooled:
  • Rated Torque: 12 Nm
  • Rated Current: 14.3 A
• Max Speed: 6000 rpm
• Constant Voltage: 57 V/1000 min^-1
• Constant Torque: 0.93 Nm/A
• Max Voltage: 600 VAC
• Protection Class: IP65
• Brake Torque: 10 Nm
• Brake Current: 0.75 A
• Brake Voltage: 24 VDC
