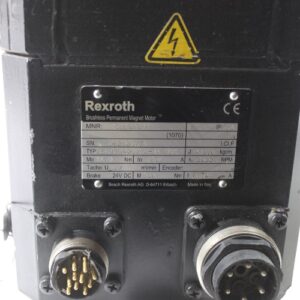

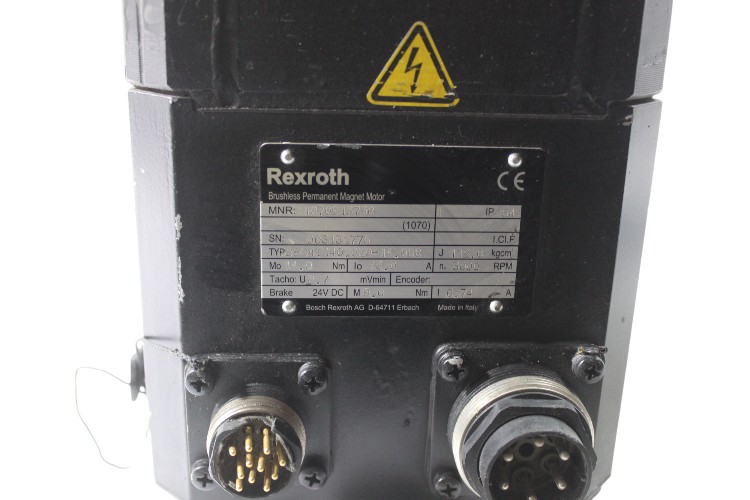

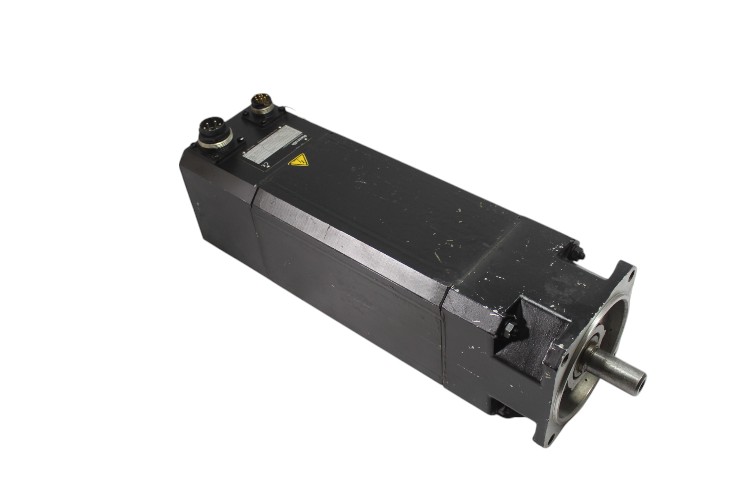

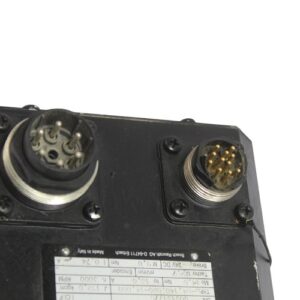

Rexroth SD-B4-140.020-14.000 Brushless Permanent Magnet Motor
The Rexroth SD-B4-140.020-14.000 Brushless Permanent Magnet Motor is engineered for high-efficiency industrial applications requiring precise motion control. Designed with advanced permanent magnet technology, it delivers high torque, stable performance, and reliable operation. Featuring an IP54 protection rating and thermal class F insulation, this motor ensures durability in demanding environments.
- Manufacturer: Rexroth
- Type: Brushless Permanent Magnet Motor
- Model: SD-B4-140.020-14.000
- MRN: 1070913750
Technical Specifications
- Stall Current: 13 A
- Stall Torque: 14 Nm
- Rated Torque: 112 kgcm²
- Max. Speed: 3000 RPM
- Voltage Constant: 2.7 mV/min
- Thermal Class: F
- Protection Class: IP54
- Brake Current: 0.74 A
- Brake Voltage: 24 VDC
- Brake Torque: 9 Nm
