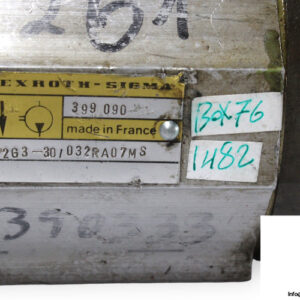

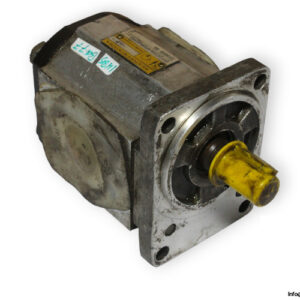

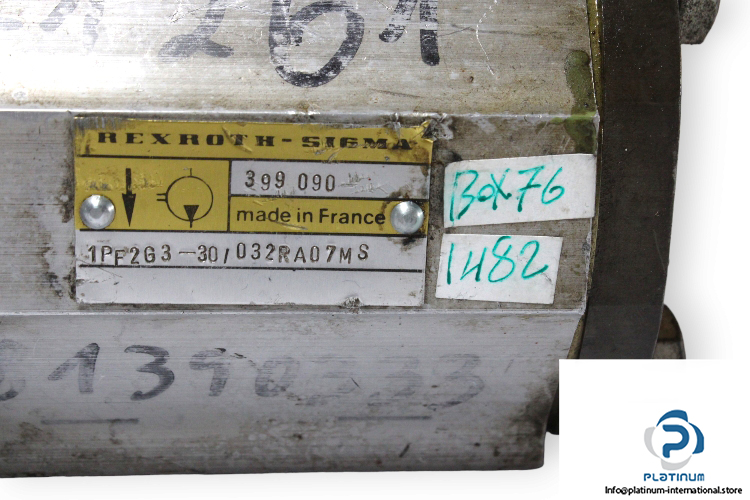

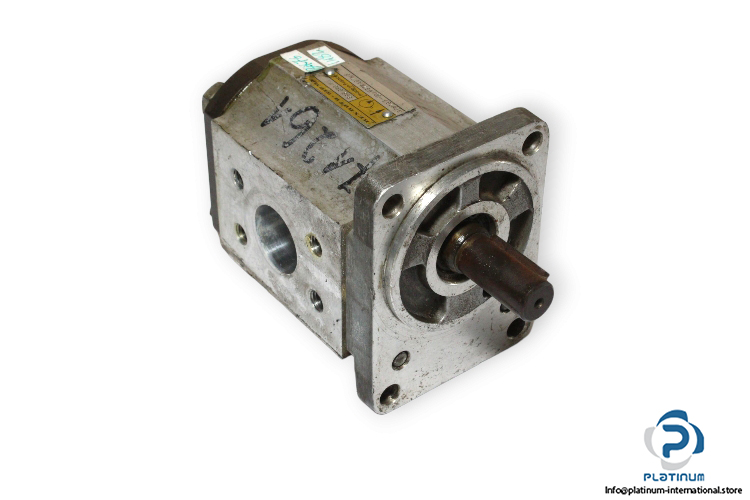

Rexroth Sigma 1PF2G3-30/032RA07MS External Gear Pump

The Rexroth Sigma 1PF2G3-30/032RA07MS is a high-performance external gear pump designed for reliable hydraulic applications. With robust construction, high efficiency, and optimized sealing, it delivers consistent performance in demanding industrial environments.

Manufacturer: Rexroth Sigma
Type: External Gear Pump
Model: 1PF2G3-30/032RA07MS
MNR: 399 090

Technical information

• Size: 32
• Displacement: 32.6 cc/rev
• Rotation: Clockwise
• Drive Shaft: Cylindrical Shaft Ø 18 mm
• Max. Continuous Pressure: 200 bar
• Max. Speed @ Continuous Pressure: 3000 rpm
• Min. Speed @ Max. Continuous Pressure: 650 rpm
• Connection: Rectangular flange Ø 80 mm spigot
• Seals: NBR
• Fluid Temperature Range: 0 / 80 °C
