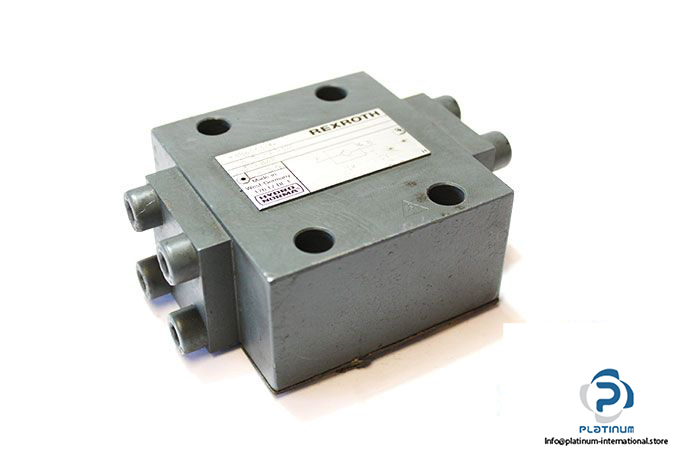

REXROTH HYDRONORMA SL10PA132 HYDRAULICALLY PILOT OPERATED CHECK VALVE
The Rexroth Hydronorma SL 10 PA1-32/ is a high-performance hydraulically pilot operated check valve, engineered for reliable operation in demanding hydraulic systems. Designed for NG10 size systems, it offers excellent pressure control and high flow capacity, ensuring optimal system efficiency.
Manufacturer: Rexroth Hydronorma
Type: Hydraulically Pilot Operated Check Valve
Model: SL 10 PA1-32/

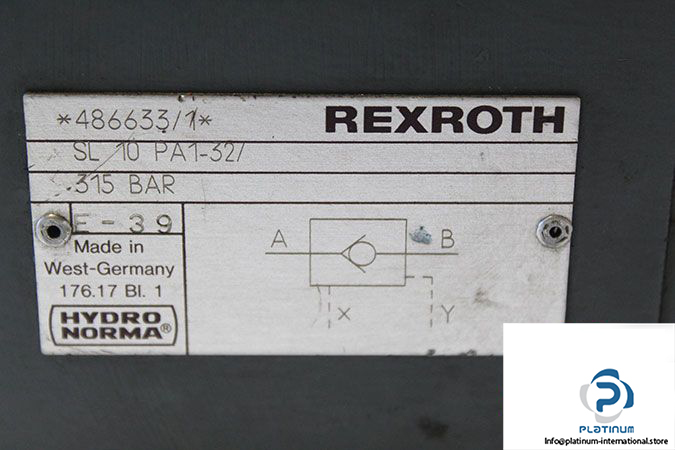

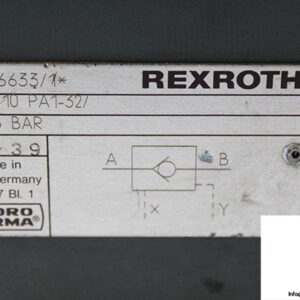

Part No.: 486633/1
Technical Information
- Fluid: Oil
- Size: NG10
- Maximum Operating Pressure: 315 bar
- Control Pressure: 5 / 315 bar
- Maximum Flow Rate: 150 l/min
- Ambient Temperature Range: -30 / 80 °C
- Viscosity Range: 2.8 / 500 mm²/s
- Connection: Sub-Plate
