Manufacturer: Rexroth Star

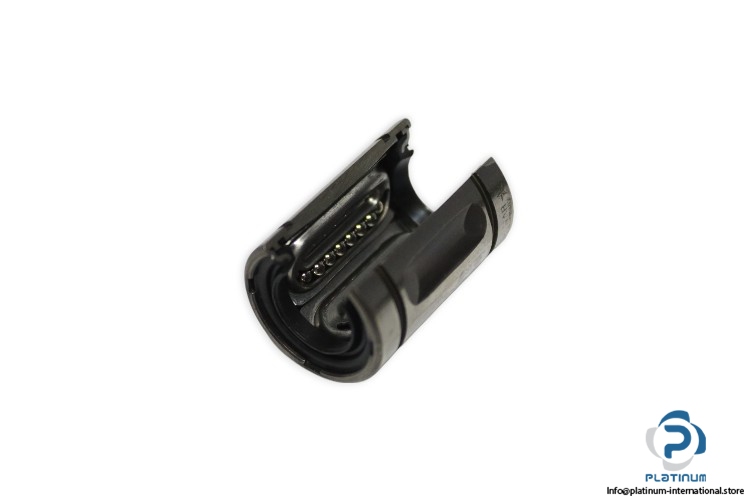

Type: STANDARD LINEAR BUSHING (OPEN)
MNR: R0632-012-00
Shaft Diameter d: 12 mm

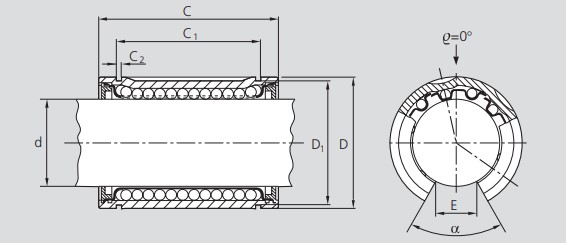

Dimensions:
D: 22 mm
C: 32 mm
C1: 22.6
C2: 1.3 mm
D1: 20.5 mm
E: 7.5 mm
Design type: Open type
No. of Ball Circuit: 3
dynamic load capacity C: 430 N
Static load capacity C0: 290 N
Angle: 78°
Sealing: With two wiper seal
