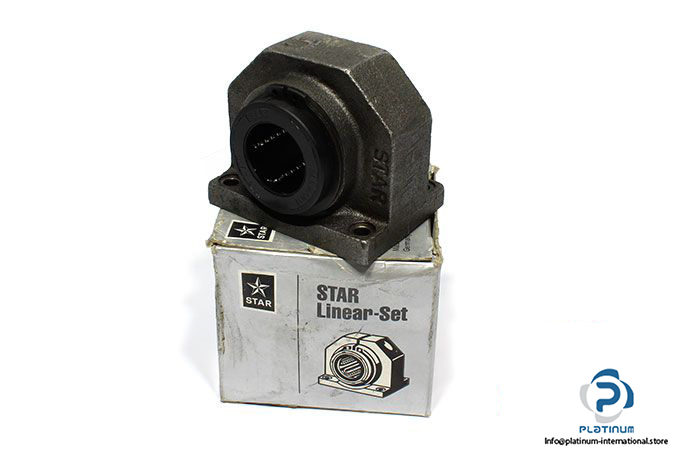

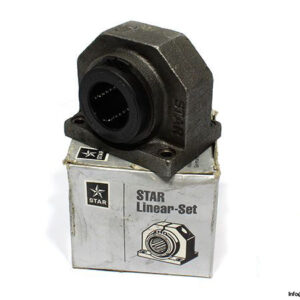

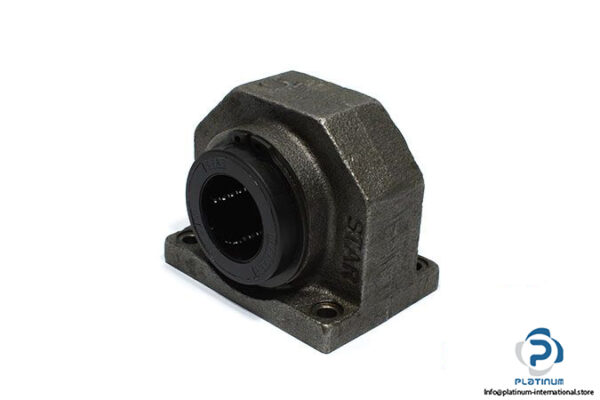

Manufacturer: REXROTH STAR

Type: Linear Sets with Super Linear Bushings A (Self-alignment)

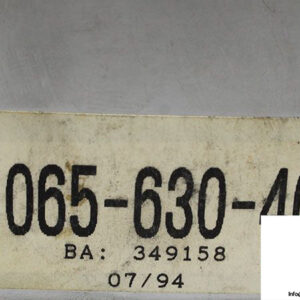

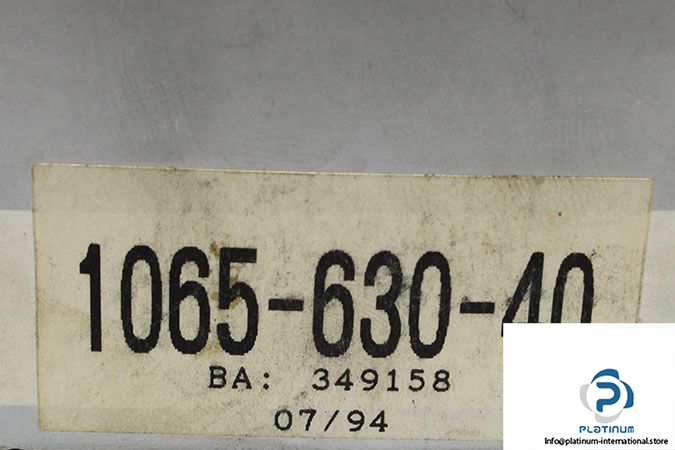

MNR: 106563040

Model: LSG-A-30-DD

Shaft diameter d: 30 mm

Design type: Closed type

Housing Format: Cast iron

Dynamic Load Capacity C: 4420 N

Static Load Capacity C₀: 2790 N

Friction Force F_R: 2.5 N

Breakaway Force: 6 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

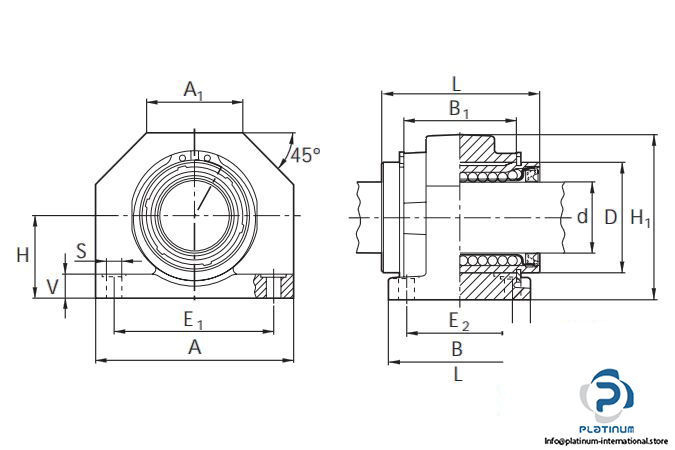

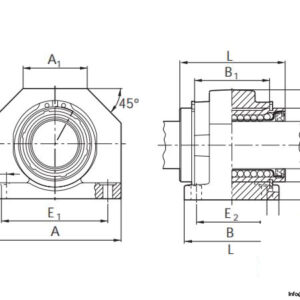

Dimensions:

A: 84 mm

L: 68 mm

H₁: 70 mm

E₁: 68 mm

E₂: 45 mm

Seals: With internal seals

Operating temperature: up to 80 °C

Weight: 1.26 kg
