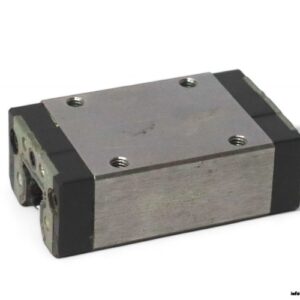

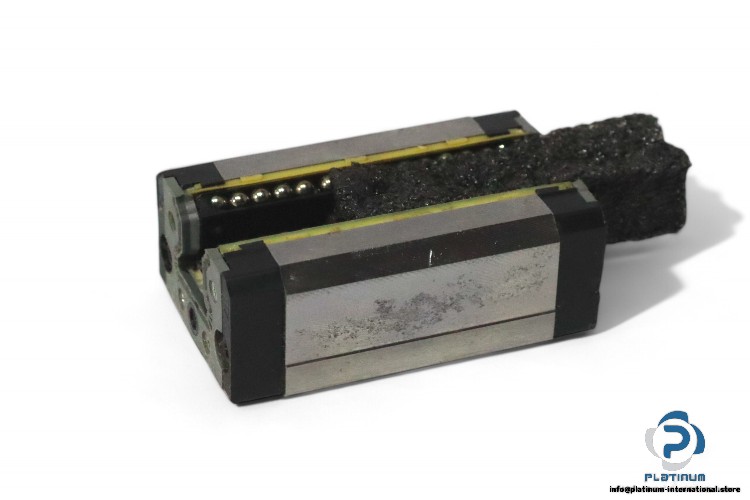

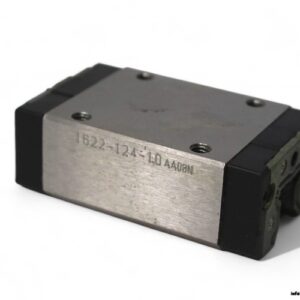

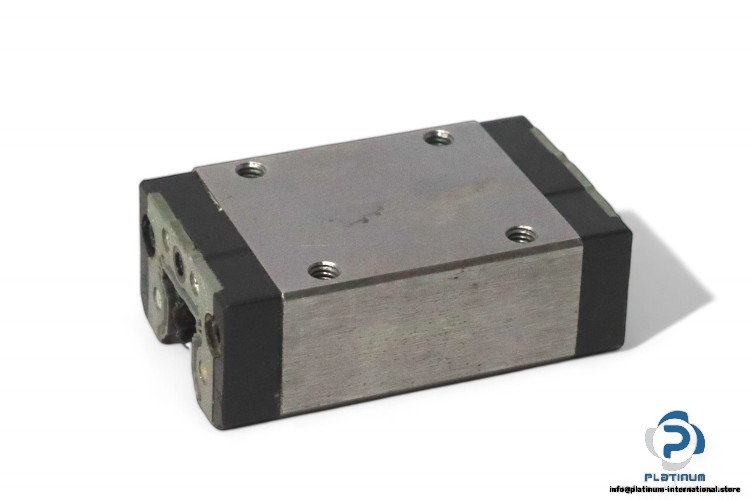

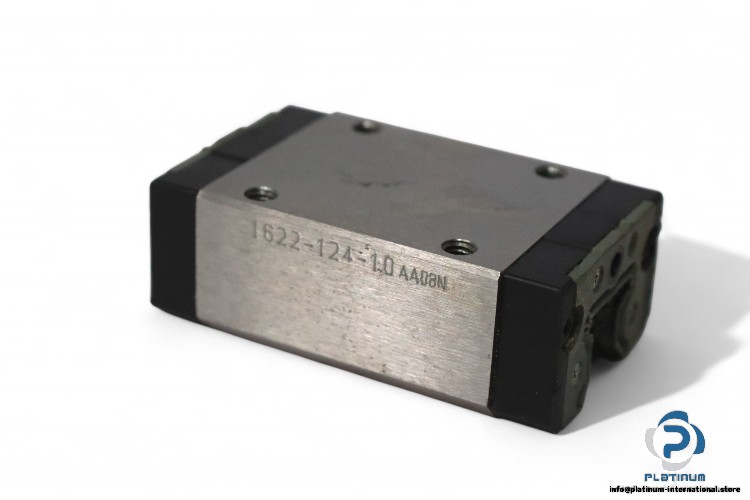

Rexroth Star R162212410 Ball Runner Block SNS
The Rexroth Star R162212410 is a precision-engineered ball runner block in SNS slimline format, offering high load capacity, smooth motion, and long service life. With standard height, medium preload, and accuracy class N, it is ideal for demanding linear motion applications in automation and machinery.
Manufacturer: Rexroth Star
Type: Ball Runner Block SNS
MNR: R162212410
Technical information

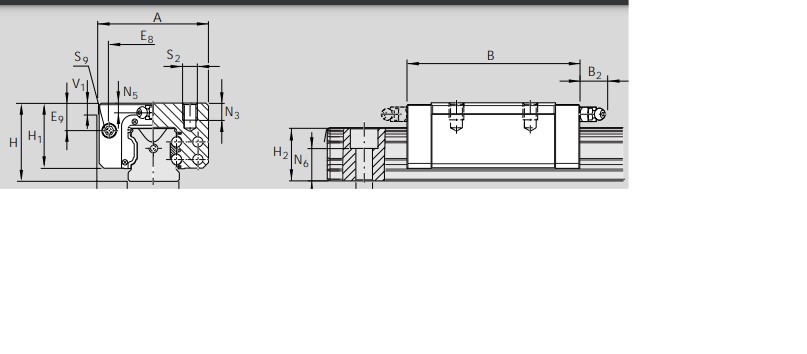

- Size: 15 mm
- Width (A): 34 mm
- Length (B): 54 mm
- Height of System (H): 24 mm
- Height of Block (H1): 19.8 mm
- E1: 26 mm
- E9: 6.7 mm
- Format: SNS “ slimline, normal, standard height
- Maximum Acceleration (amax): 500 m/s²
- Maximum Permissible Speed (vmax): 5 m/s
- Dynamic Load Capacity (C): 7,800 N
- Static Load Capacity (C0): 13,500 N
- Dynamic Torsional Moment Load Capacity (Mt): 74 Nm
- Static Torsional Moment Load Capacity (Mt0): 130 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 40 Nm
- Static Longitudinal Moment Load Capacity (ML0): 71 Nm
- Accuracy Class: N “ normal
- Preload Class: C2 “ medium preload
