Manufacturer: Rexroth Star

Type: Ball Runner Block FNS

MNR: 163129310

Size: 25 mm

Mechanical Format: KWC

Design: FNS – Flanged, Normal, Standard Height

Format: AL – Aluminum

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 22800 N

Permissible Load :8800 N

Dynamic Torsional Moment Load Capacity M_t:  320 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 180 Nm

Accuracy Class: H

Preload Class: C0

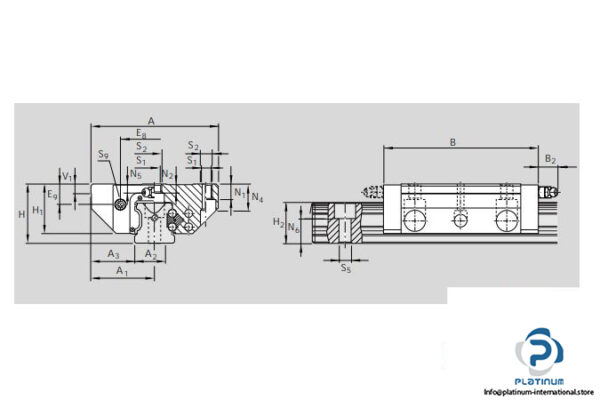

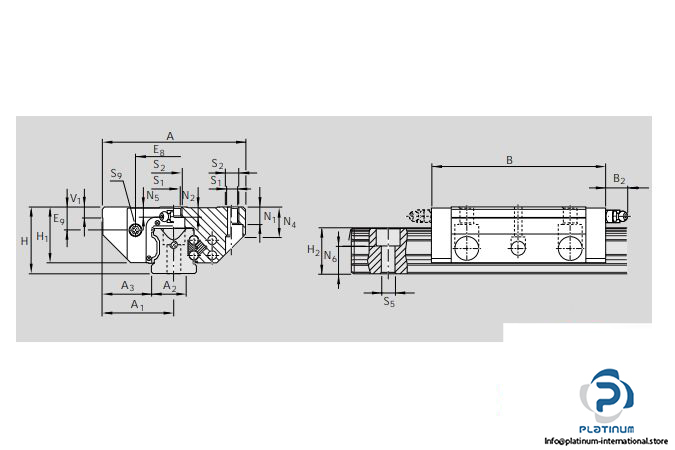

Dimensions

Width (A): 70 mm

Length (B): 81 mm

Height (H₁): 29.5 mm

Admissible Operating Temperature: 0 … +80 °C

Weight: 0.35 kg
