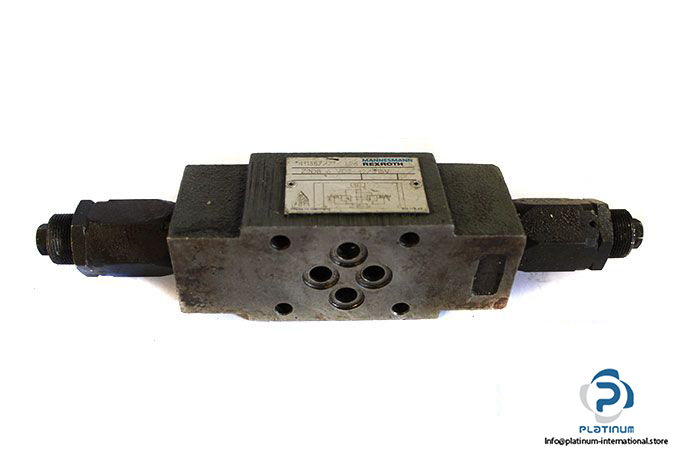

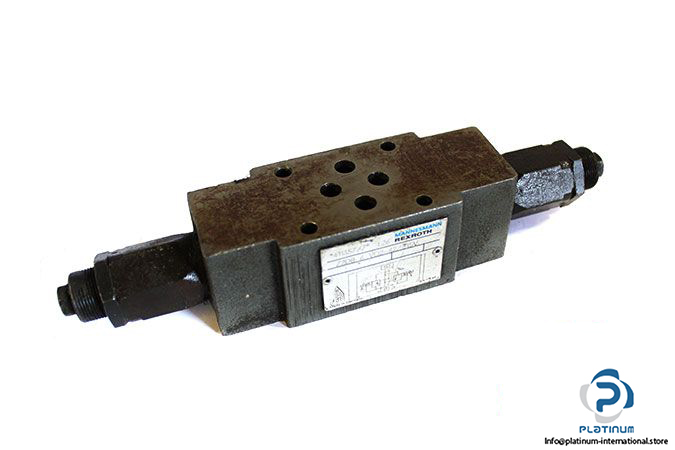

MANNESMANN REXROTH Z2DB6VD242315V PILOT OPERATED PRESSURE RELIEF VALVE
The Mannesmann Rexroth Z2DB 6 VD2-42/315V is a high-performance pilot operated pressure relief valve designed for hydraulic systems requiring precise pressure control. Engineered for durability, it ensures stable operation under demanding industrial conditions.
Manufacturer: Mannesmann Rexroth
Type: Pilot Operated Pressure Relief Valve

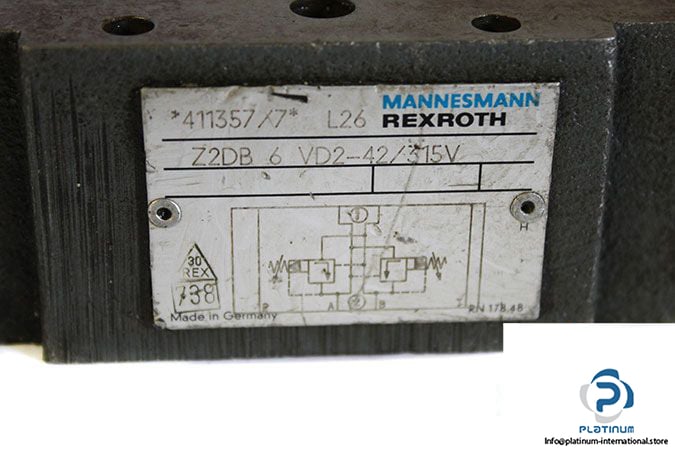

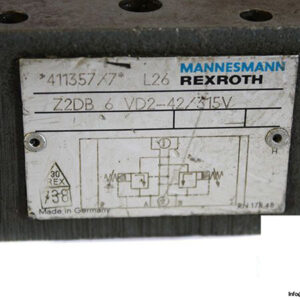

Model: Z2DB 6 VD2-42/315V
Part No.: 411357/7
Technical Information
- Fluid: Oil
- Nominal Size: NG6
- Adjustment Type: Bushing with Hexagon and Protective Cap
- Maximum Set Pressure: 200 bar
- Maximum Operating Pressure: 315 bar
- Maximum Flow Rate: 60 l/min
- Ambient Temperature Range: -20 / 80 °C
- Viscosity Range: 10 / 800 mm²/s
- Connection: Sub-plate
