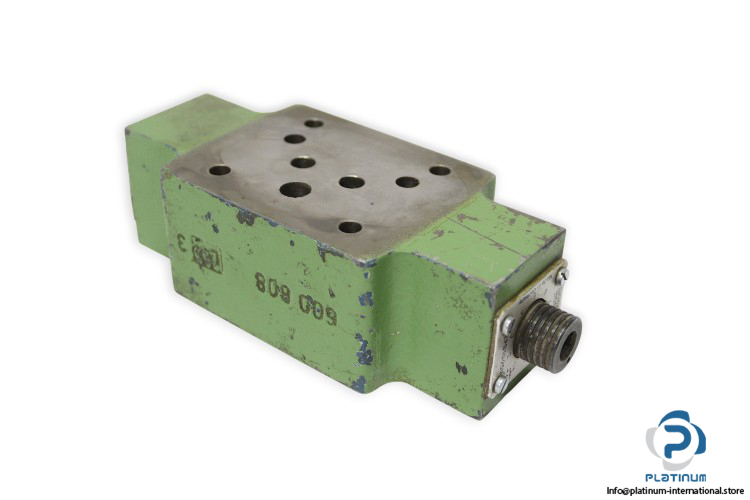

Mannesmann Rexroth Z2FS 10-5-3 /V Twin Throttle Check Valve
The Mannesmann Rexroth Z2FS 10-5-3 /V is a high-precision twin throttle check valve engineered for accurate flow control, pressure stability, and dependable operation in demanding hydraulic systems. Its lockable rotary adjustment knob with scale ensures repeatable settings, making it ideal for machines requiring fine hydraulic tuning and consistent performance.
Manufacturer: Mannesmann Rexroth
Type: Twin throttle check valve

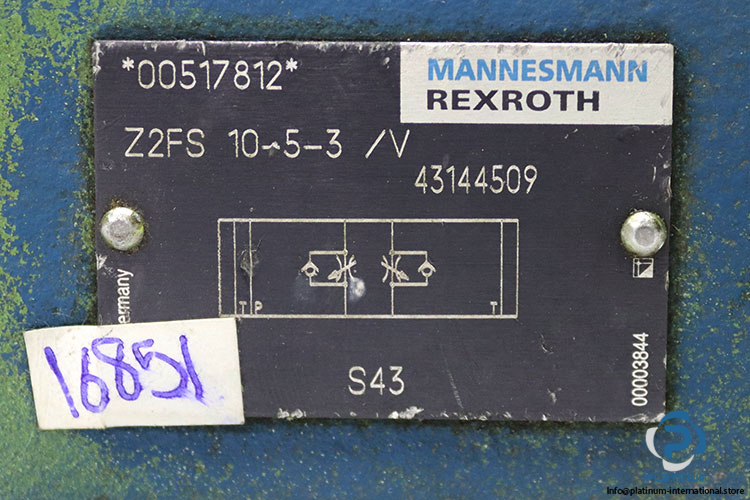

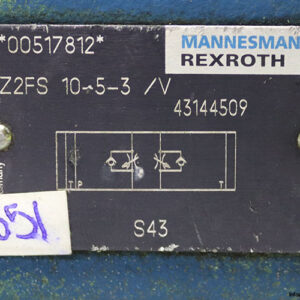

Model: Z2FS 10-5-3 /V
MNR: R900517812
Series: Z2FS
Part No.: 43144509
Code: 00003844
Technical Information
- Nominal Size: 10
- Adjustment Element: Lockable rotary knob with scale
- Max. Working Pressure: 315 bar
- Nominal Flow Rate: 160 L/min
- Hydraulic Connection: Sub-plate
- Design: Sandwich plate
- Seal: FKM
- Fluid Temperature Range: -20 to +80 °C

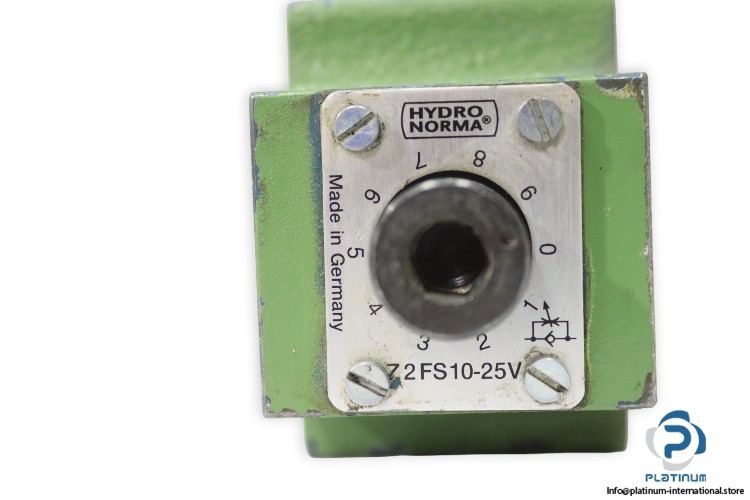

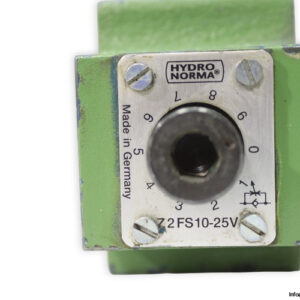

- Attachment: HYDRO NORMA Z2FS10-25V VALVE SCALE
- Scale Range: 0 to 9
Recommendation
This valve is highly recommended for hydraulic systems that demand precise throttling, stable pressure control, and long-term reliability. Its sandwich plate design allows quick installation in compact hydraulic manifolds, while the lockable scale knob ensures repeatable adjustments”perfect for production lines, presses, and machinery requiring controlled, consistent flow regulation.
