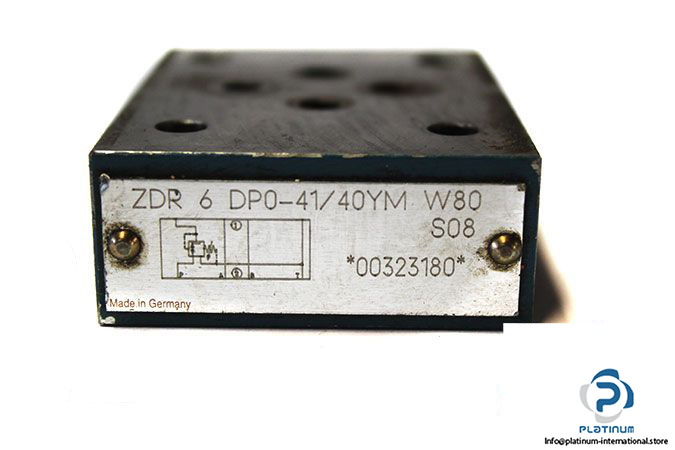

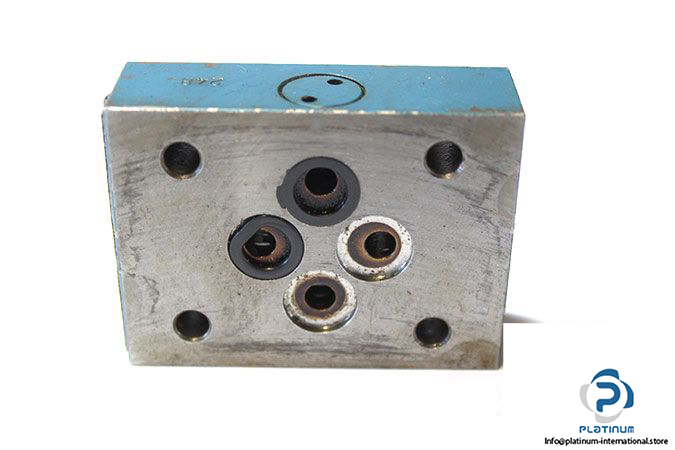

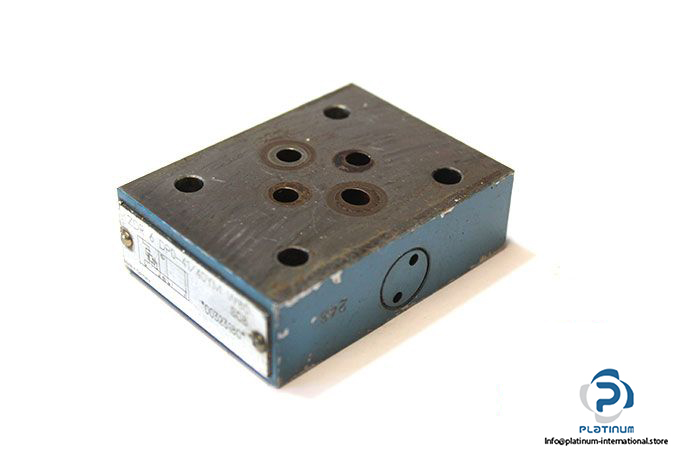

Manufacturer: REXROTH

Type: Pressure Reducing Valve Direct Operated

Model: ZDR 6 DP0-41/40YM W80

MNR: R900323180

Nominal Size: 6

Adjustment Element: Sleeve with hexagon and protective cap

Ambient temperature range: -30 ….. +80 °C

Maximum operating pressure (Inlet):315 bar

Maximum operating pressure (Output):210 bar

Back pressure port T(Y): 160 bar

Maximum Flow Rate: 50 L/min

Fluid Temperature Range: -30 ….. +80 °C

Viscosity range:10…800 mm²/s

Connection: Sub-plate

Weight: 0.44 kg
