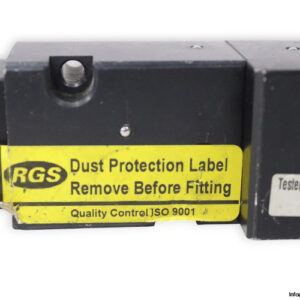

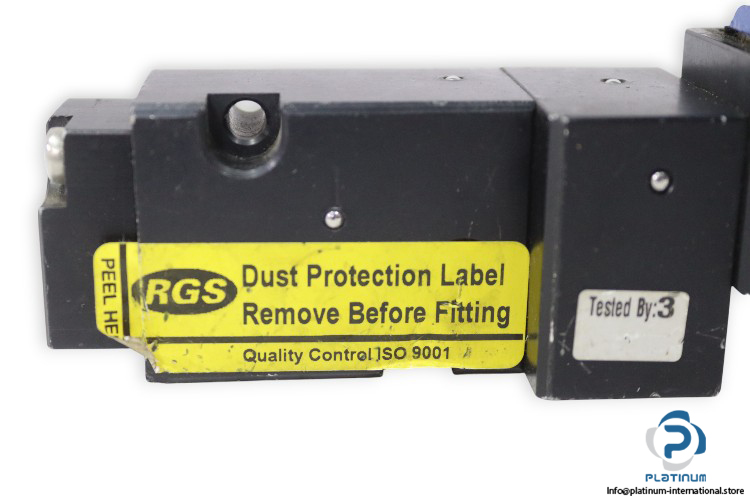

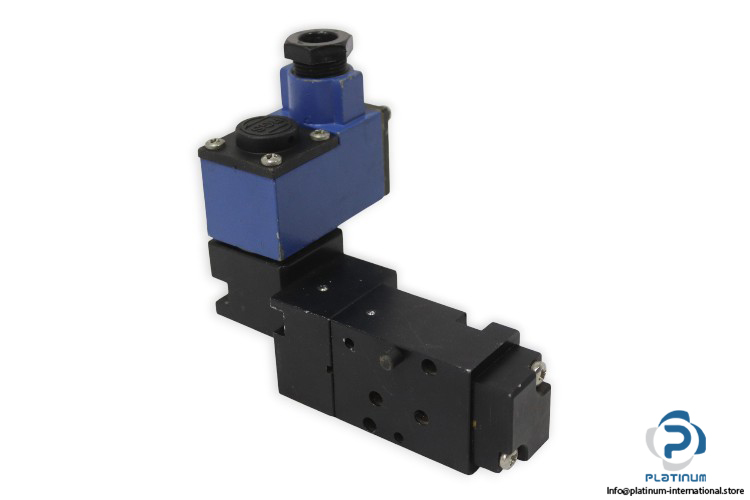

R.G.S C1518P0000 Solenoid Valve

The R.G.S C1518P0000 Solenoid Valve is a high-quality pneumatic component designed for precise and safe control of compressed air in industrial systems. Built with ISO 9001 quality assurance, it offers reliable operation, explosion protection, and consistent performance in demanding environments.

Manufacturer: R.G.S
Type: Solenoid Valve

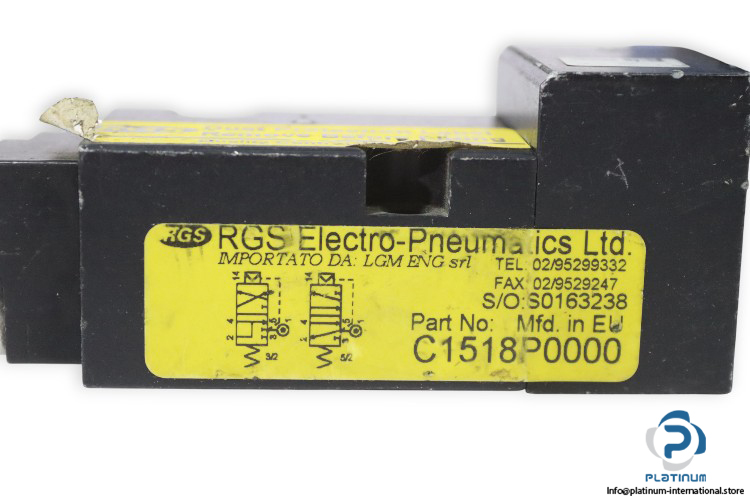

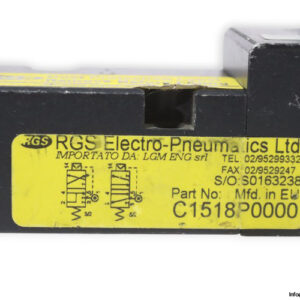

Part Number: C1518P0000
Serial Number: S0163238
Series: C15

Technical Information

• Quality Control: ISO 9001
• Valve Function: 5 by 2 way
• Working Pressure: 3 to 8 bar
• CV Factor: 0.7
• Flow Rate: 675 liters per minute
• Maximum Ambient Temperature: 60 degree Celsius
• Port Type: Sub base mounting
• Operation: Solenoid actuated, spring return, internal pilot air feed
• Tested By: 17
• Medium: Compressed air, filtered and lubricated
• Body Material: Aluminum

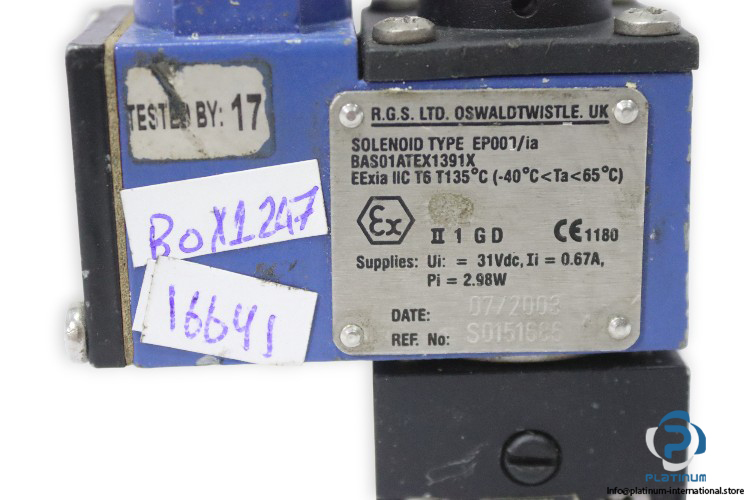

• Attached With Solenoid Type: R.G.S EP000 ia
• Code: BAS01ATEX1391X
• Reference Number: S0151686
• Rated Supply Voltage: 31 V DC
• Rated Current: 0.67 A
• Power Input: 2.98 W
• Explosion Protection: Ex II 1 GD “ Ex ia IIC T6 T135
