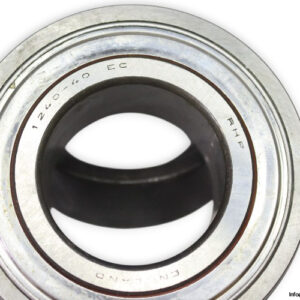

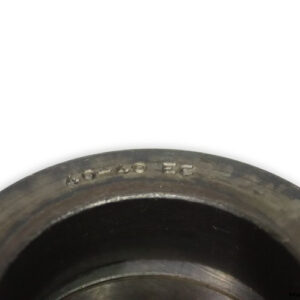

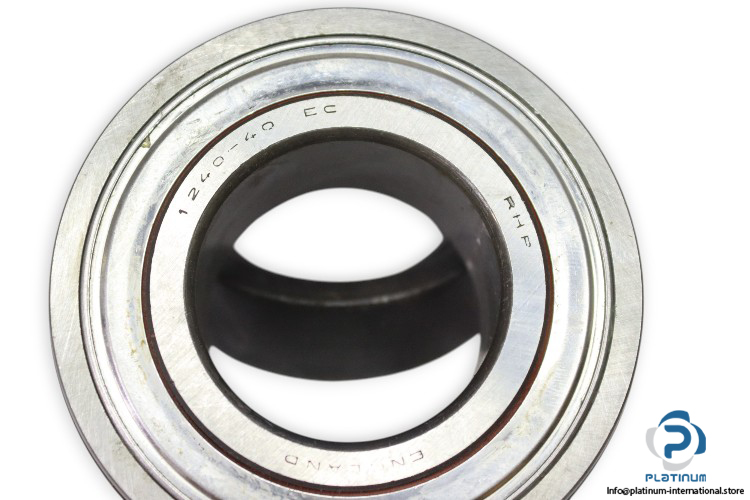

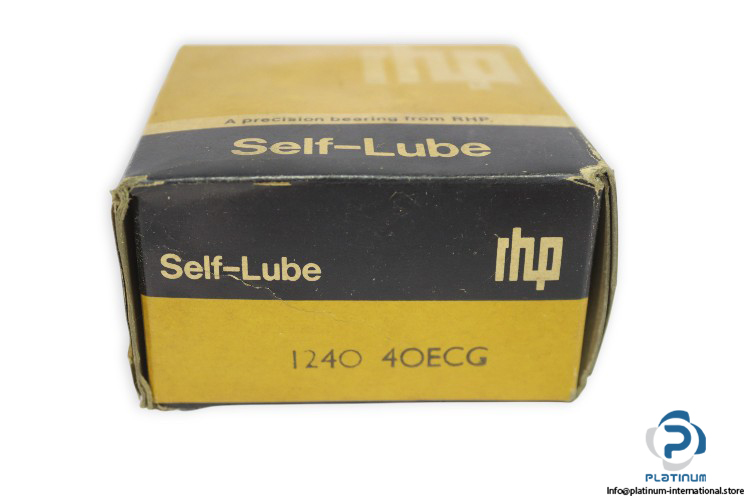

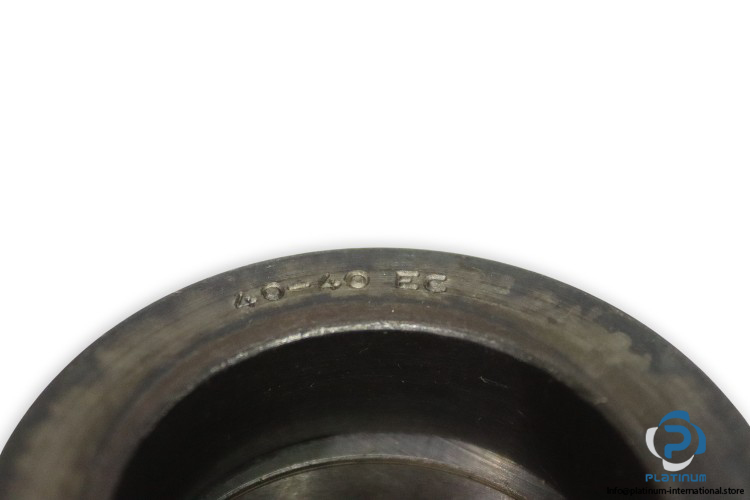

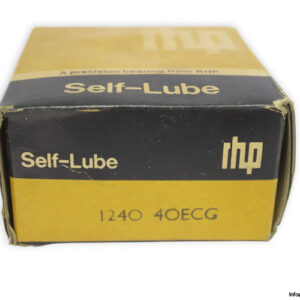

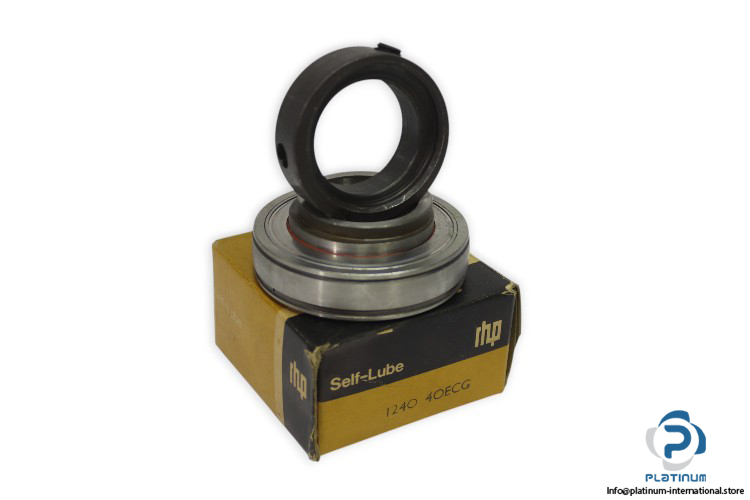

RHP 1240-40ECG Insert Ball Bearing (Self-Lube)
The RHP 1240-40ECG is a high-quality self-lubricating insert ball bearing designed for reliable operation in industrial and mechanical systems. Its eccentric collar locking mechanism ensures a secure fit on the shaft, providing smooth and consistent performance even under demanding load and speed conditions. Ideal for applications requiring durability, precision, and easy installation.
- Manufacturer: RHP
- Type: Insert Ball Bearing (Self Lube)
- Model: 1240-40ECG
- Series: 1200ECG
Technical Information
- Dimensions:
- Shaft Diameter (d): 40 mm
- Outer Diameter (D): 80 mm
- Overall Bearing Width (B2): 43.73 mm
- Width of Outer Ring (C): 18 mm
- Outside Diameter of Locking Collar (d2): 60.30 mm
- Basic Load Ratings:
- Dynamic (C): 32,500 N
- Static (C0): 19,900 N
- Speed Max: 4000 rev/min
- Locking Device: EC, Eccentric Collar Lock “ Short Inner Ring
