Rickmeier R2-1,5/12-5MO Compact External Gear Pump
The Rickmeier R2-1,5/12-5MO is a compact and reliable external gear pump designed for efficient fluid transfer and circulation in industrial applications. With its robust flange-mounted construction and threaded connections, it ensures durability and long service life, making it ideal for oil lubrication, hydraulic oil circulation, and fuel transfer systems.
- Manufacturer: Rickmeier
- Type: Compact External Gear Pump
- Model: R2-1,5/12-5MO
- Part No.: 320036-7
- Reference No.: 502-503187/2
Technical Information
- Displacement / Flow: 13.5 cm³/rev (indicated in model œ13,5)
- Nominal Pressure: Up to 12 bar

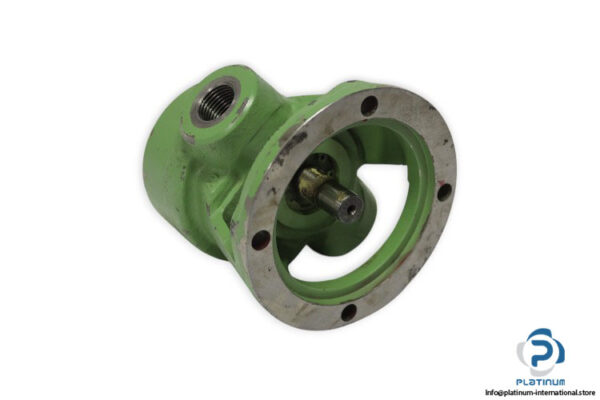

- Design: Flange-mounted with shaft drive and threaded inlet/outlet ports
- Mounting: Flange with 4-bolt holes

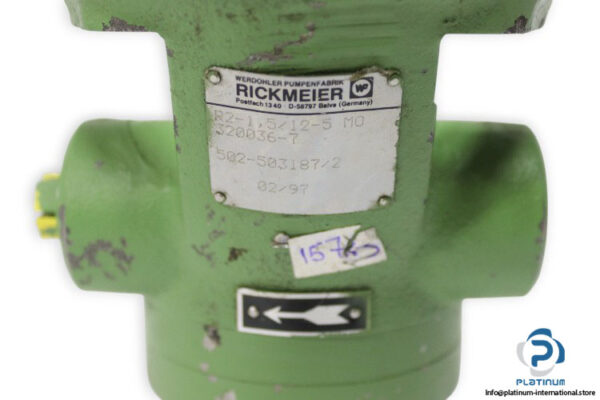

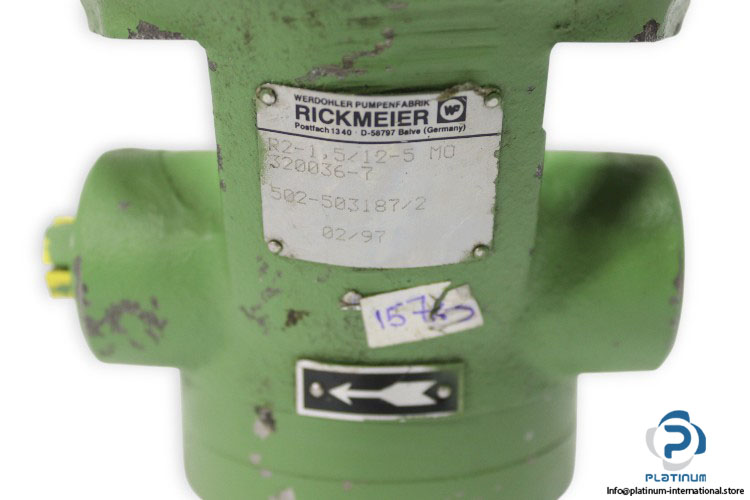

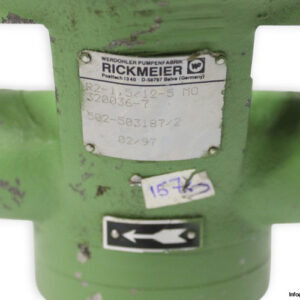

- Rotation Direction: Indicated by arrow marking on housing
- Application Areas: Oil lubrication, hydraulic oil circulation, fuel transfer, industrial machinery
- Connection: G1/2
