RIEGLER MV 1316 SINGLE SOLENOID VALVE

Solenoid Valve

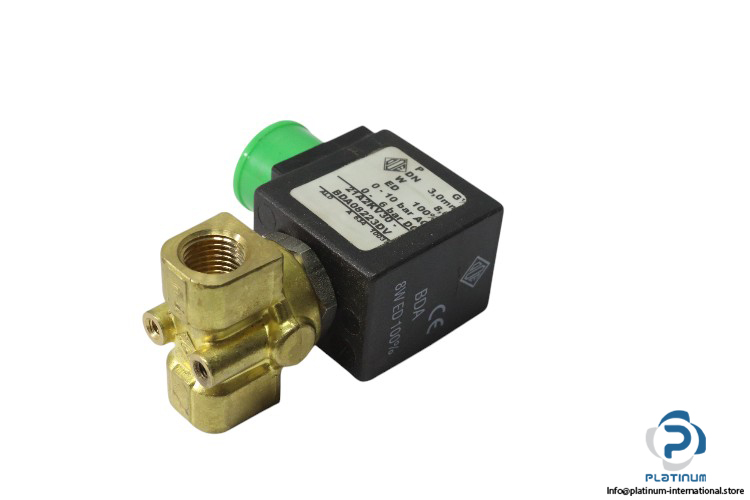

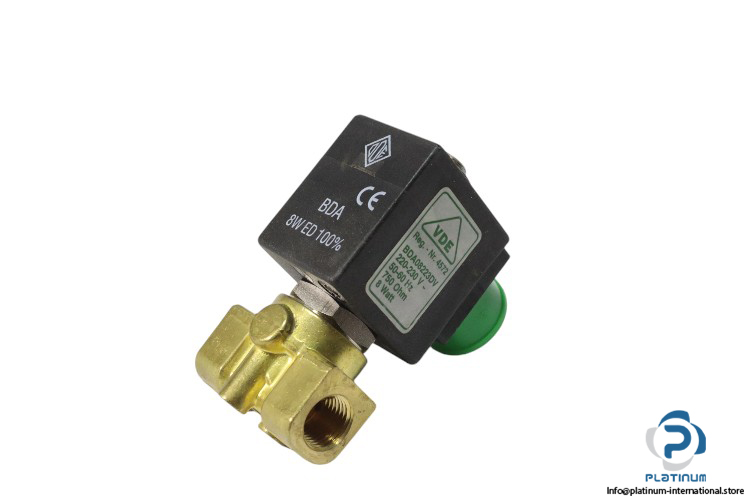

RIEGLER MV 1316 Single Solenoid Valve is an electrically actuated 2/2 way valve designed for pneumatic applications. Operating at 220 … 230 V AC with a maximum pressure of 10 bar, it ensures precise and reliable fluid control. Featuring IP65 protection and a temperature range of -10 … 140 °C, it is built for industrial durability.

SKU: 1062001 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

RIEGLER MV 1316 Single Solenoid Valve

The RIEGLER MV1316 Single Solenoid Valve is a high-performance electrically actuated valve designed for precise fluid control in pneumatic systems. Engineered for industrial applications, it delivers reliable operation, excellent durability, and efficient performance under varying pressure and temperature conditions.

  • Manufacturer: RIEGLER
  • Type: Single Solenoid Valve
  • Model: MV 1316
  • Art. No.: 102888

Technical Information

  • Fluid: Air
  • Valve Function: 2/2 Way Valve
  • Type of Actuation: Electrically
  • Operating Pressure Max.: 10 bar

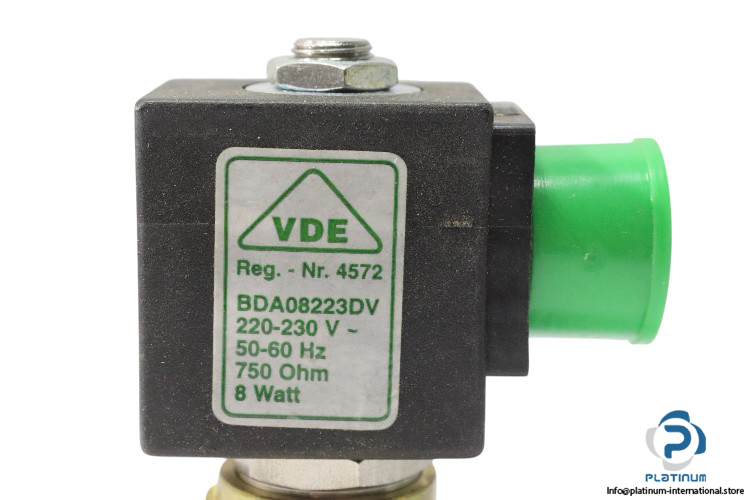

  • Supply Voltage: 220 … 230 V AC
  • Power Consumption: 8 W
  • Frequency: 50 … 60 Hz
  • Resistance: 750 Ohm
  • Port Size: G 1/4
  • Protection Class: IP65
  • Medium Temperature: -10 … 140 °C
Weight0,35 kg
